Description
M.A. FORD Square End Mill: 1/4″ Dia, 1-3/4″ LOC 3 Fl Solid Carbide 13825009
MSRP: $70
- Mill Diameter (Decimal Inch) 0.2500
- Mill Diameter (Inch) 1/4
- Number Of Flutes 3
- End Mill Material Solid Carbide
- Length of Cut (Decimal Inch) 1.7500
- Length of Cut (Inch) 1-3/4
- Shank Diameter (Inch) 1/4
- Shank Diameter (Decimal Inch) 0.2500
- Overall Length (Decimal Inch) 4.0000
- Overall Length (Inch) 4
- Single Or Double End Single
- Coating/Finish Family Bright/Uncoated
- Centercutting Yes
- Cutting Direction Right Hand
- Flute Direction Right Hand
- Extended Reach No
- Coolant Through No
- Helix Angle 36
- Primary Workpiece Material Aluminum & Non-Ferrous
- Primary Workpiece Material Code N
- Coating/Finish Bright/Uncoated
- Variable Helix No
- Variable Index No
- Chipbreaker No
- Flute Type Spiral
- Shank Type Straight
- Material Grade Micrograin
- Length Of Cut Range (Decimal Inch) 1.5000 – 2.0000
- Mill Diameter Tolerance +0.0000 to -0.0005 in
- Shank Diameter Tolerance h6
- Series 138
- System Of Measurement Fractional Inch
- UNSPSC Code 27112803
(Description).

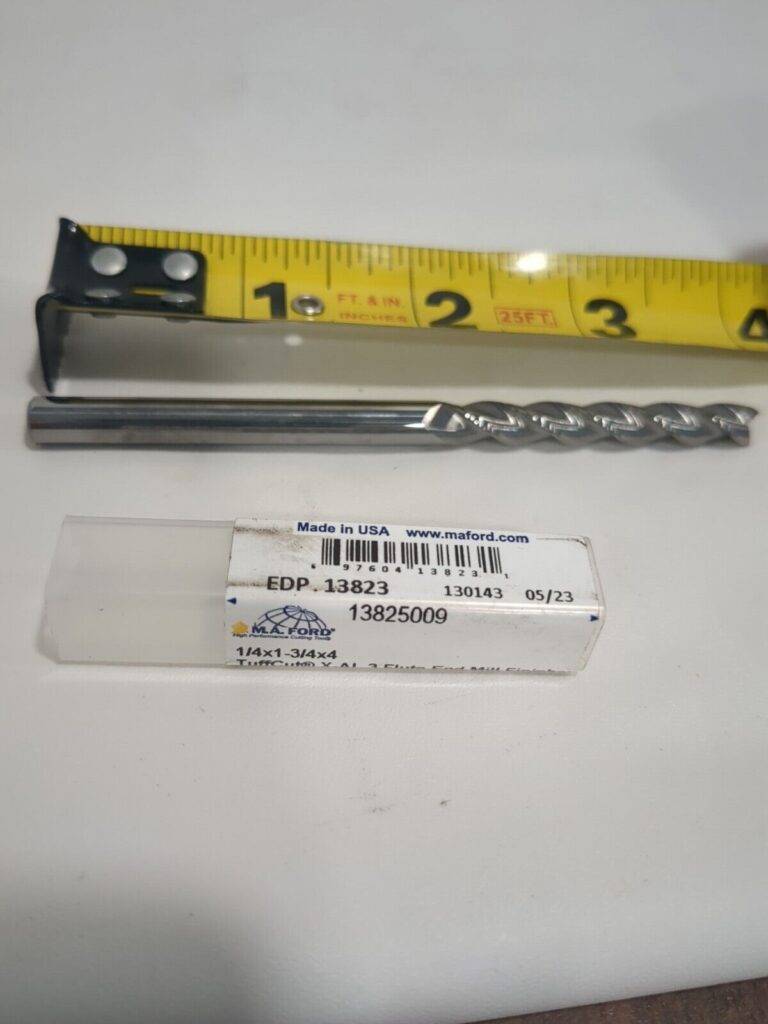

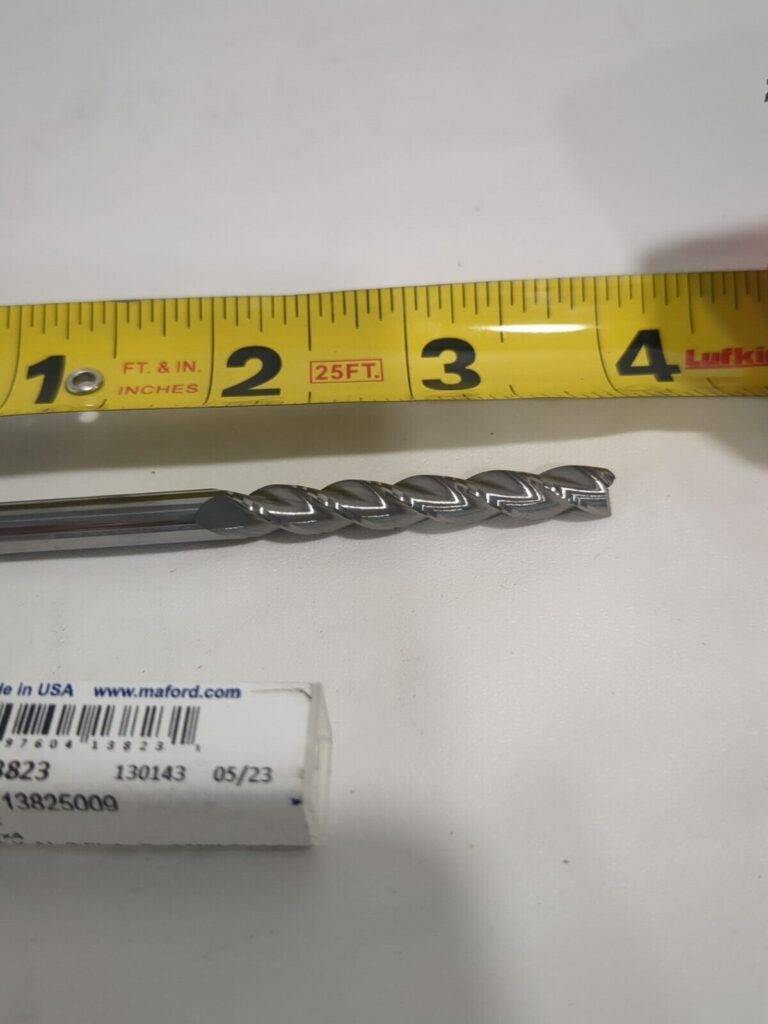

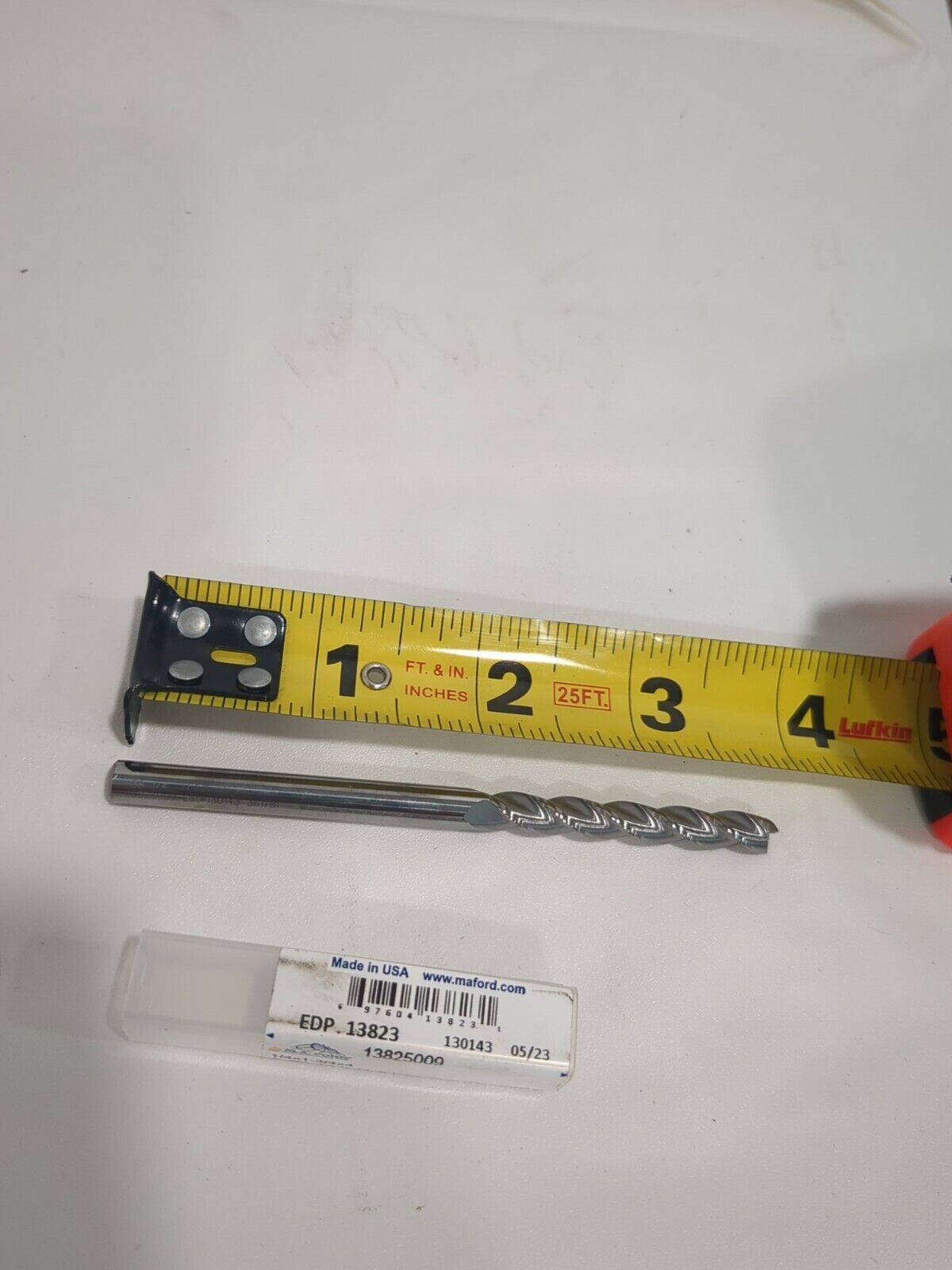

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
nov0824HS7507mike26
END MILL TYPE: Square End Mill
OVERALL LENGTH: 1-3/4 in
MATERIAL: Solid Carbide
MPN: 13825009
LENGTH OF CUT: 1/4 in
MILL DIAMETER: 1/4 in
SHANK DIAMETER: 1/4 in
