Description
M.A. Ford
Jobber Length Drill Bit
MSRP: $20.00
- Drill Bit Size (mm) 2.40
- Drill Bit Size (Decimal Inch) 0.0945
- Drill Bit Material Solid Carbide
- Drill Point Angle (Degrees) 118
- Coating/Finish AlTiN
- Flute Type Regular Spiral
- Cutting Direction Right Hand
- Point Type Facet
- Primary Workpiece Material Stainless Steel; Cast Iron; Steel
- Specification Number DIN 338
- Coolant Through No
- Flute Length (Decimal Inch) 1.1811
- Flute Length (mm) 30.00
- Number of Flutes 2
- Primary Workpiece Material Code P; K; M; N
- Shank Diameter (Decimal Inch) 0.0945
- Overall Length (mm) 57.00
- Overall Length (Decimal Inch) 2.2441
- Spiral Type Regular
- Proprietary Coating/Finish ALtima
- Series 224
- Flute By Diameter Ratio 5xD
- Shank Diameter (mm) 2.4
- Shank Length (mm) 27
- Drill Bit Diameter Tolerance +0.000 to -0.013 mm
- Web Thinning Web-Thinned
- Shank Type Straight
- Tool Performance General Purpose
- Standards DIN 338; ISO 9001:2015 Certified
- Drill Bit Grade General Purpose
- Drill Bit Size Range (Decimal Inch) 0.0500 – 0.1000
- Drill Bit Size Range (mm) 2.00 – 3.00
- Specification Designation DIN
This item appears to be new and in good condition. SOLD AS IS.

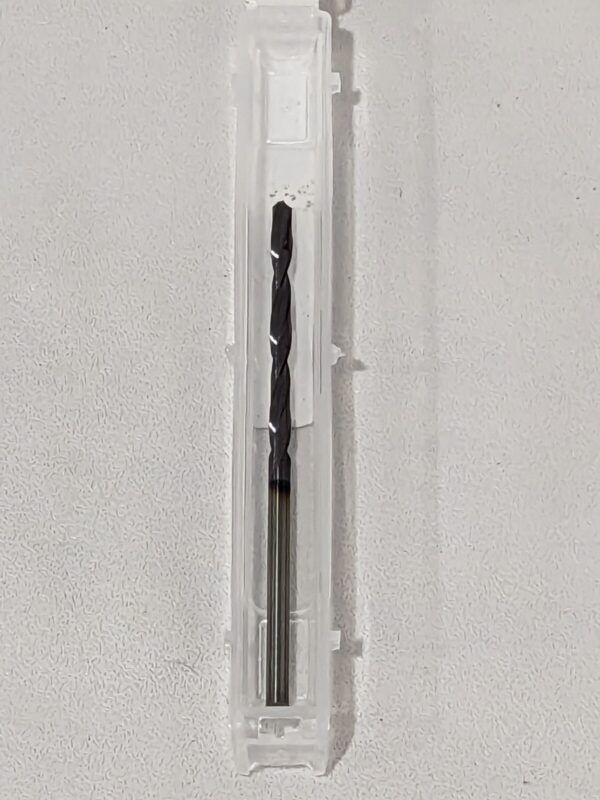

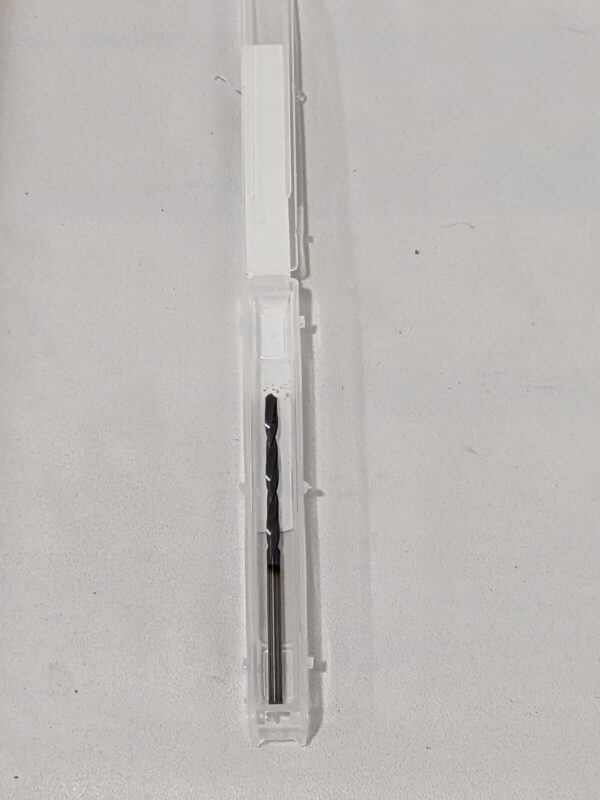

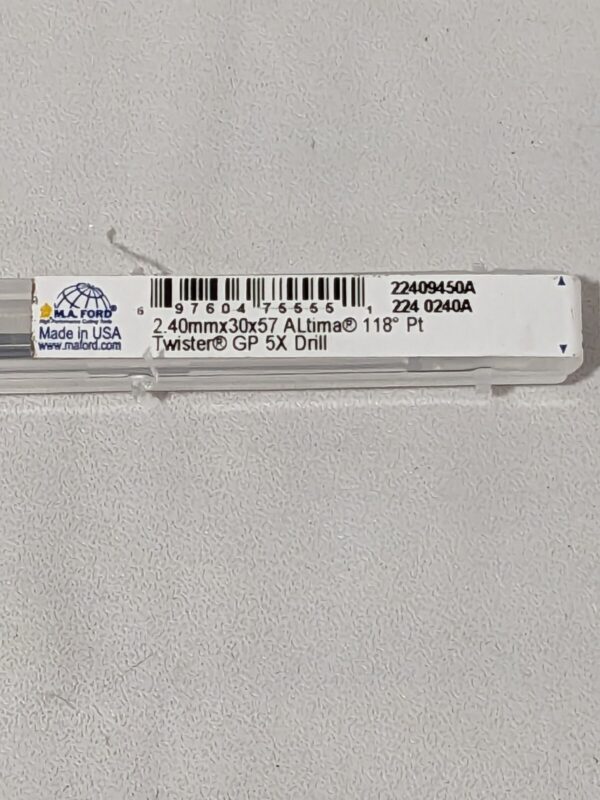

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
May 23 2025
TB 19683
BW 1 Bin 13
BRAND: M.A. Ford
MSRP: $20.00
UNIT TYPE: Unit
MODEL: 22409450A
MPN: Does Not Apply
ITEM TYPE: Drill Bit
COUNTRY/REGION OF MANUFACTURE: Unknown
UNIT QUANTITY: N/A
CALIFORNIA PROP 65 WARNING: N/A
LOCATION: TB19683BW1Bin13
