Lapeer Standard Straight Line Action Clamps Qty 4 Phl-850

LAPEER

 Standard Straight Line Action Clamps qty 4 PHL-850
MSRP: $180

•

• Load Capacity (Lb. – 3 Decimals) 850.00
• Load Capacity 385.55
• Load Capacity 850 lb; 385.55 lb
• Plunger Travel (Inch) 1-5/8
• Plunger Travel (Decimal Inch) 1.6250
• Plunger Travel 1.625 in
• Plunger Travel (mm) 41.28
• Plunger Shape Round
• Plunger Thread Style Internal
• Plunger Thread Size 3/8-16
• Plunger Centerline Height (Inch) 1-1/4
• Plunger Centerline Height (mm) 31.75
• Plunger Centerline Height (Decimal Inch) 1.2500
• Plunger Centerline Height 1.25 in
• Plunger Diameter (mm) 15.88
• Plunger Diameter (Decimal Inch) 0.6250
• Plunger Diameter (Inch) 5/8
• Base Style Flanged
• Handle Style Straight
• Clamp Material Carbon Steel
• Material Carbon Steel
• Overall Length (Decimal Inch) 6.1250
• Overall Length (mm) 155.58
• Overall Length (Inch) 6-1/8
• Overall Height (Inch) 3-13/16
• Overall Height (Mm – 5 Decimals) 96.84
• Overall Height (Decimal Inch) 3.8125
• Base Length (Inch) 2-1/4
• Base Length (mm) 57.15
• Base Length (Decimal Inch) 2.2500
• Base Width (Inch) 2-1/4
• Base Width (Inch) 2.2500
• Base Width 57.15
• Handle Color Orange
• Length Distance Between Mount Holes (mm) 41.28
• Length Distance Between Mount Holes (Inch) 1-5/8
• Width Distance Between Mount Holes (Decimal Inch) 1.6250
• Width Distance Between Mount Holes (Inch) 1-5/8
• Width Distance Between Mount Holes (mm) 41.28
• Mounting Hole Diameter (mm) 8.38
• Front Of Base To Tip Of Toggle Bar 2.9400
• Number Of Mounting Holes 4

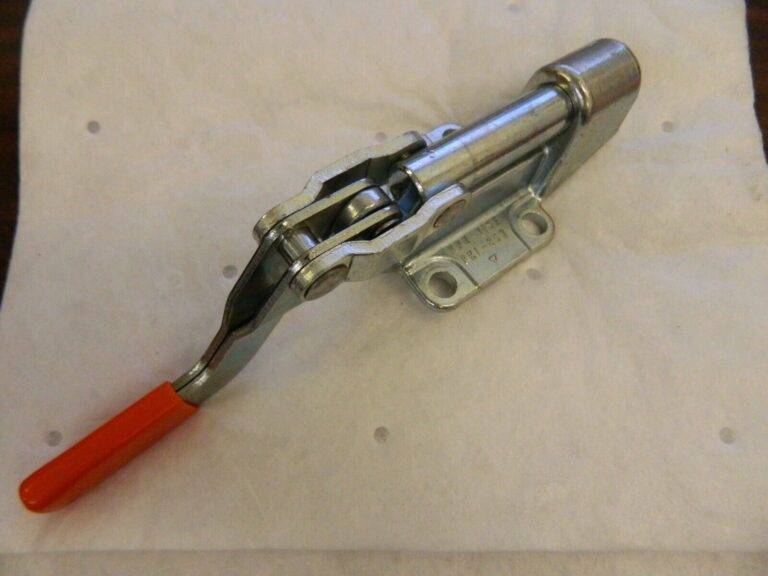

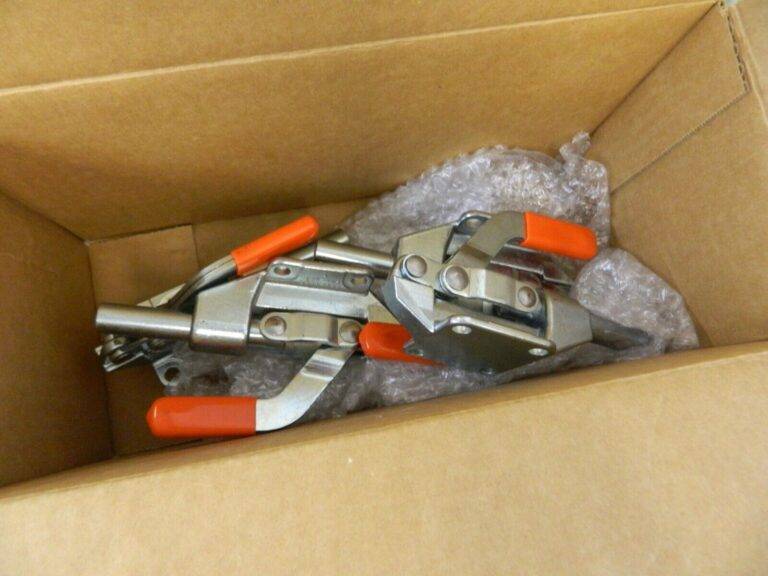

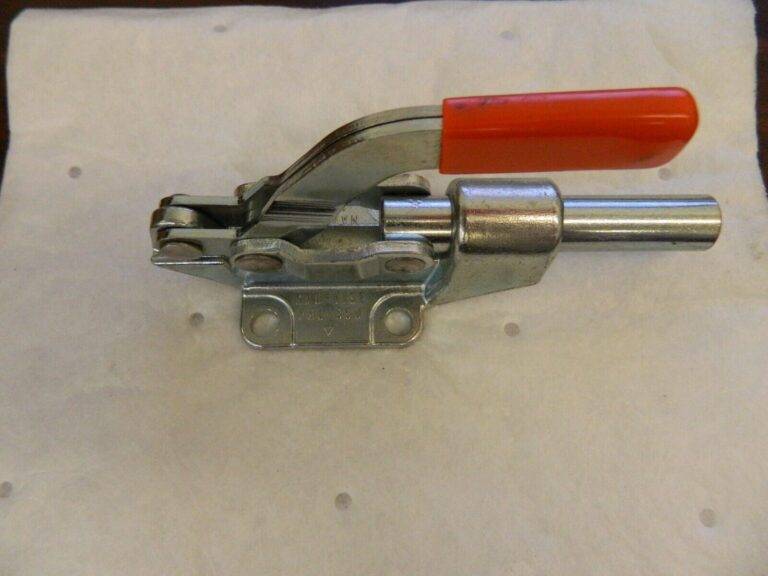

Please review photos, comes as shown.
