Description
KYOCERA
Turning Insert: WNGA433T00625 A66N, Ceramic 10pk TCS61102
MSRP: $200
- Insert Style WNGA
- Insert Size Code 433
- Insert Shape Trigon 80°
- Included Angle 80 degree
- Inscribed Circle (Decimal Inch) 0.5000
- Corner Radius (Decimal Inch) 0.0469
- Corner Radius (mm) 1.19
- Insert Material Ceramic
- Manufacturer Grade A66N
- Coating/Finish Al2O3; TiC
- Relief Angle 0 °
- Wiper Edge No
- Insert Thickness 4.76
- Insert Thickness (Decimal Inch) 0.1875
- Insert Hand Neutral
- Number Of Cutting Edges 6
- Insert Shape Code W
- Corner Radius (Inch) 3/64
- Hole Diameter (Mm) ( – 0 Decimals) 5.16
- Hole Diameter (Decimal Inch) 0.2032
- Maximum Depth of Cut (Decimal Inch) 0.2280
- Inscribed Circle (Inch) 1/2
- Inscribed Circle (mm) 12.70
- Insert Holding Method Pin; Clamp
- Insert Thickness (Inch) 3/16
- Clearance Code N
- Tolerance Code G
- Series ISOI
- Coating Process PVD
- Length Range (Decimal Inch) 0.6500 – 0.7000
- Rake Negative
- Insert Length (Decimal Inch) 0.6840
- Primary Workpiece Material Hard Material
- Primary Workpiece Material Code H
- Iso Code WNGA080412T01525
- Standards ISO; ANSI
- Manufacturers Catalog Number TCS61102
- Material Grade H10; H01
- UNSPSC Code 23242105
- Coating Classification PVD
- Cutting Edge Style Chamfered
- Industry Standard Number WNGA433T00625A66N
- Width (Decimal Inch – 4 Decimals) 0.6840 in
- Multi-Use Tool Yes
- Full Radius No
- Multi-Use Application External Turning; Chamfering; Facing; Internal Facing; Boring

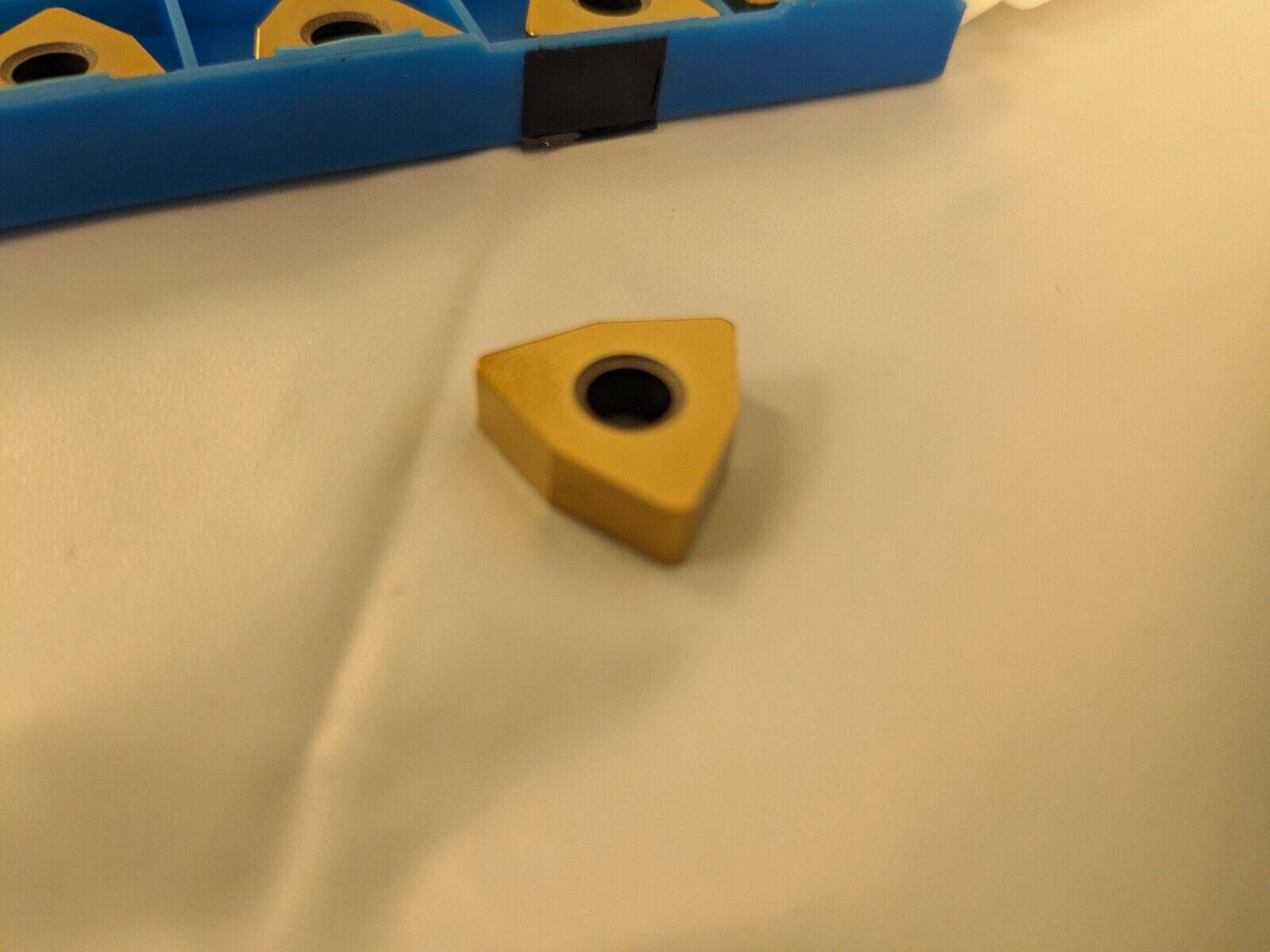

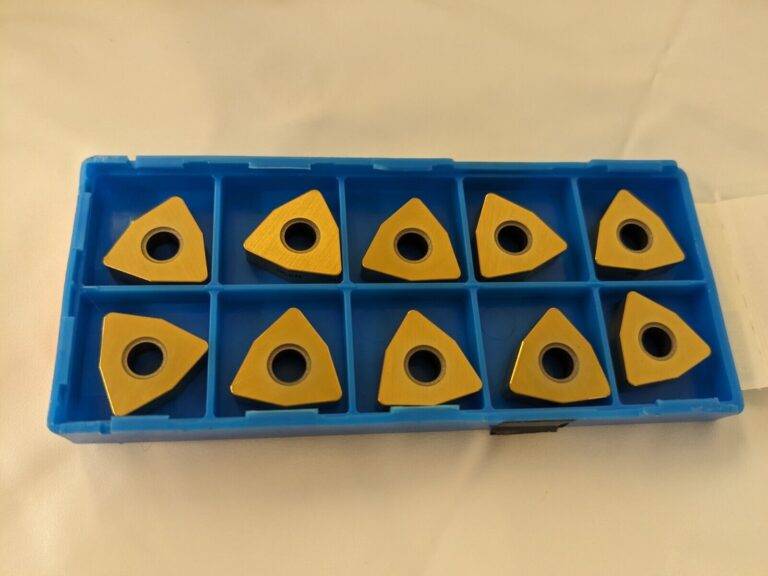

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
dec 12 23
HS3806
bullet 1
BRAND: Kyocera
INSERT MATERIAL: Ceramic
MSRP: $200
MPN: TCS61102
INSERT TYPE: Turning Insert
