Description
Kyocera
1 Lot of 3 Turning Inserts
MSRP: $50.00
- Insert Style VBMT
- Insert Shape Code V
- Insert Size Code 331
- Insert Shape Diamond
- Coating/Finish Bright/Uncoated
- Manufacturer Grade KPD001
- Corner Radius (Inch) 1/64
- Corner Radius (mm) 0.40
- Corner Radius (Decimal Inch) 0.0156
- Insert Material Polycrystalline Diamond
- Hole Diameter (Mm) ( – 0 Decimals) 4.39
- Hole Diameter (Decimal Inch) 0.1730
- Inscribed Circle (Inch) 3/8
- Inscribed Circle (Decimal Inch) 0.3750
- Insert Holding Method Screw
- Insert Hand Neutral
- Insert Thickness (Inch) 3/16
- Insert Thickness 4.76
- Insert Thickness (Decimal Inch) 0.1875
- Clearance Code B
- Tolerance Code M
- Included Angle 35.0
- Relief Angle 5
- Series ISOI
- Rake Positive
- Number Of Cutting Edges 1
- Primary Workpiece Material S
- Primary Workpiece Material Code S; N
- Secondary Workpiece Material Superalloy
- Ansi Code VBMT331KPD001
- Iso Code VBMT160404
- Standards ISO; ANSI
- Manufacturers Catalog Number VBMT331 KPD001
- Cutting Direction Neutral
- Material Grade Super Micrograin
- Chip Breaker T
- Rake Angle 10
- Multi-Use Tool No
- Multi-Use Application Turning
These items are new and in the original sealed package. SOLD AS IS.

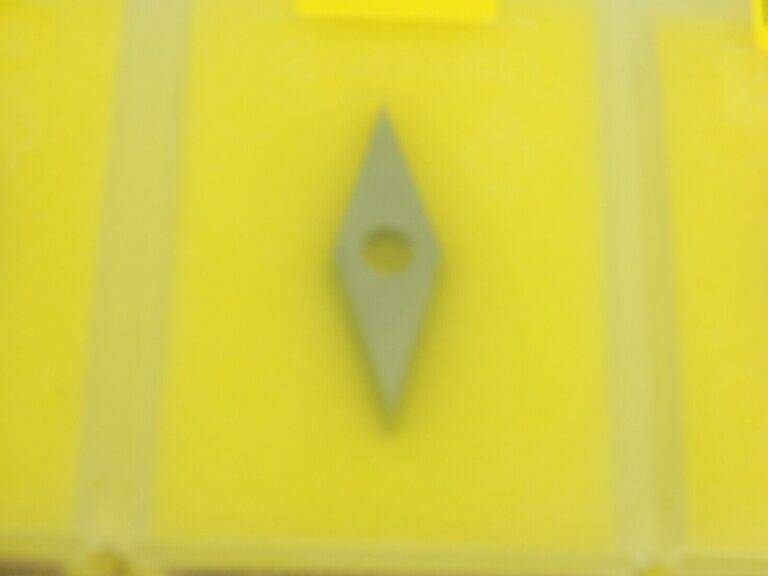

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
January 22 2024
TB 15468
Shelf K 3
BRAND: Kyocera
MSRP: $50.00
INSERT MATERIAL: Diamond
MODEL: TBR05612
MPN: Does Not Apply
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: China
LOCATION: TB15468ShelfK3
