Description
BRAND kyocera
Item
MSRP: $160.00
- specs
Insert Style TPGR
Insert Size Code 222
Insert Shape Triangle
Included Angle 60
Inscribed Circle (Decimal Inch) 0.2500
Corner Radius (Decimal Inch) 0.0313
Insert Material Cermet
Manufacturer Grade TN60
Coating/Finish TiCN; NbC
Relief Angle 11
Wiper Edge No
Insert Thickness (Decimal Inch) 0.1250
Insert Hand Right Hand
Number Of Cutting Edges 3
Insert Shape Code T
Corner Radius (Inch) 1/32
Maximum Depth of Cut (Decimal Inch) 0.0350
Inscribed Circle (Inch) 1/4
Insert Holding Method Clamp
Insert Thickness (Inch) 1/8
Clearance Code P
Tolerance Code G
Series ISOI
Coating Process Uncoated
Length Range (Decimal Inch) 0.7000 – 10.0000
Rake Positive
Insert Length (Decimal Inch) 0.8668
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Stainless Steel
Secondary Workpiece Material Code M
Iso Code TPGR222RA
Standards ISO; ANSI
Manufacturers Catalog Number TSJ89226
Material Grade P01; P10; P20
UNSPSC Code 23242105
Coating Classification Uncoated
Chip Breaker A
Rake Angle 17
Cutting Edge Style Honed
Industry Standard Number TPGR222RATN60
Width (Decimal Inch – 4 Decimals) 0.8668
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Back Boring; Copying; Internal Facing; Boring
(Description).

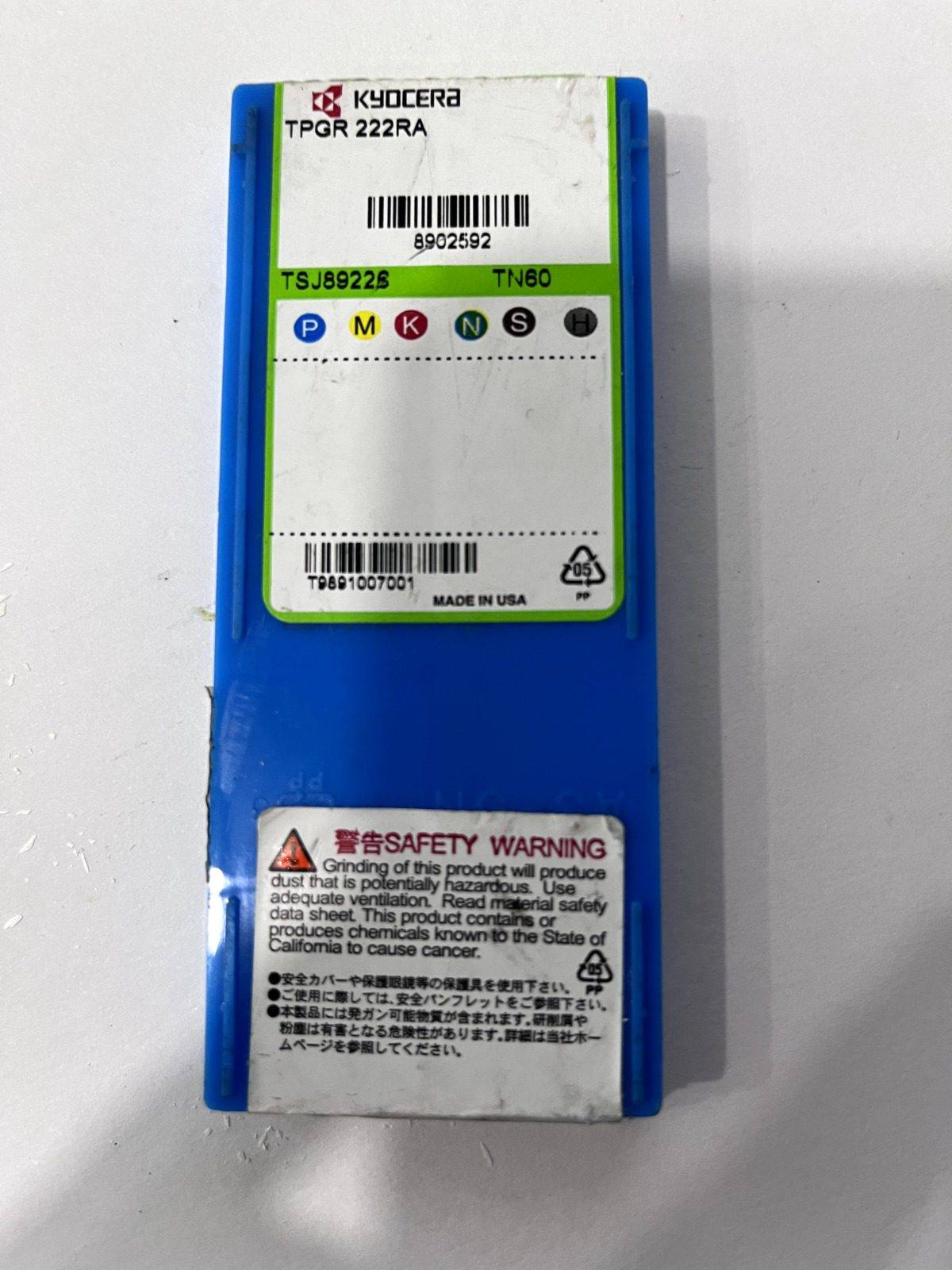

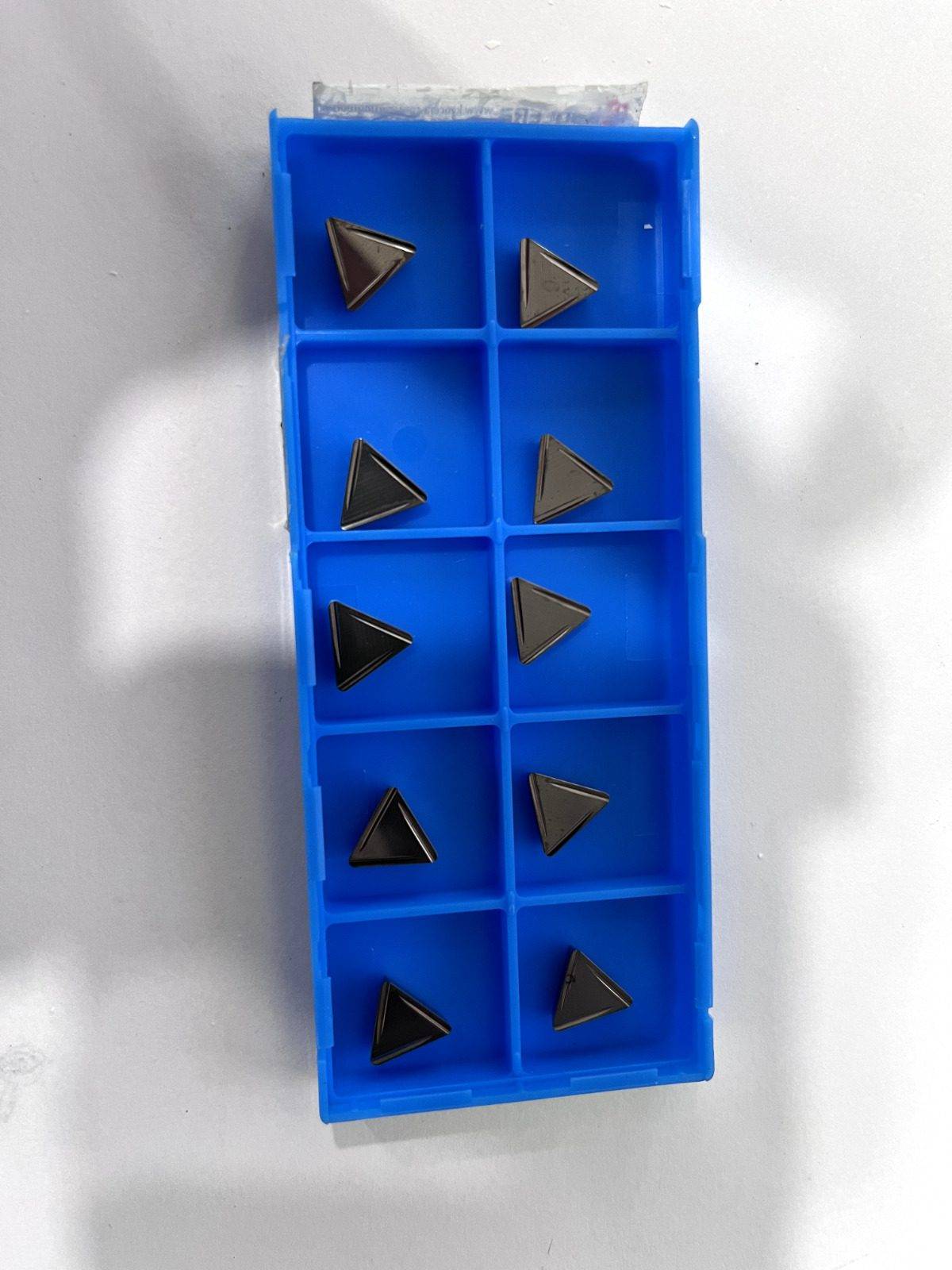

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date april 09 24
Lister#CM 13942
Locozzy 35
BRAND: Kyocera
INSERT MATERIAL: Cermet
MPN: does not apply
INSERT TYPE: Turning Insert
