Description
Kyocera

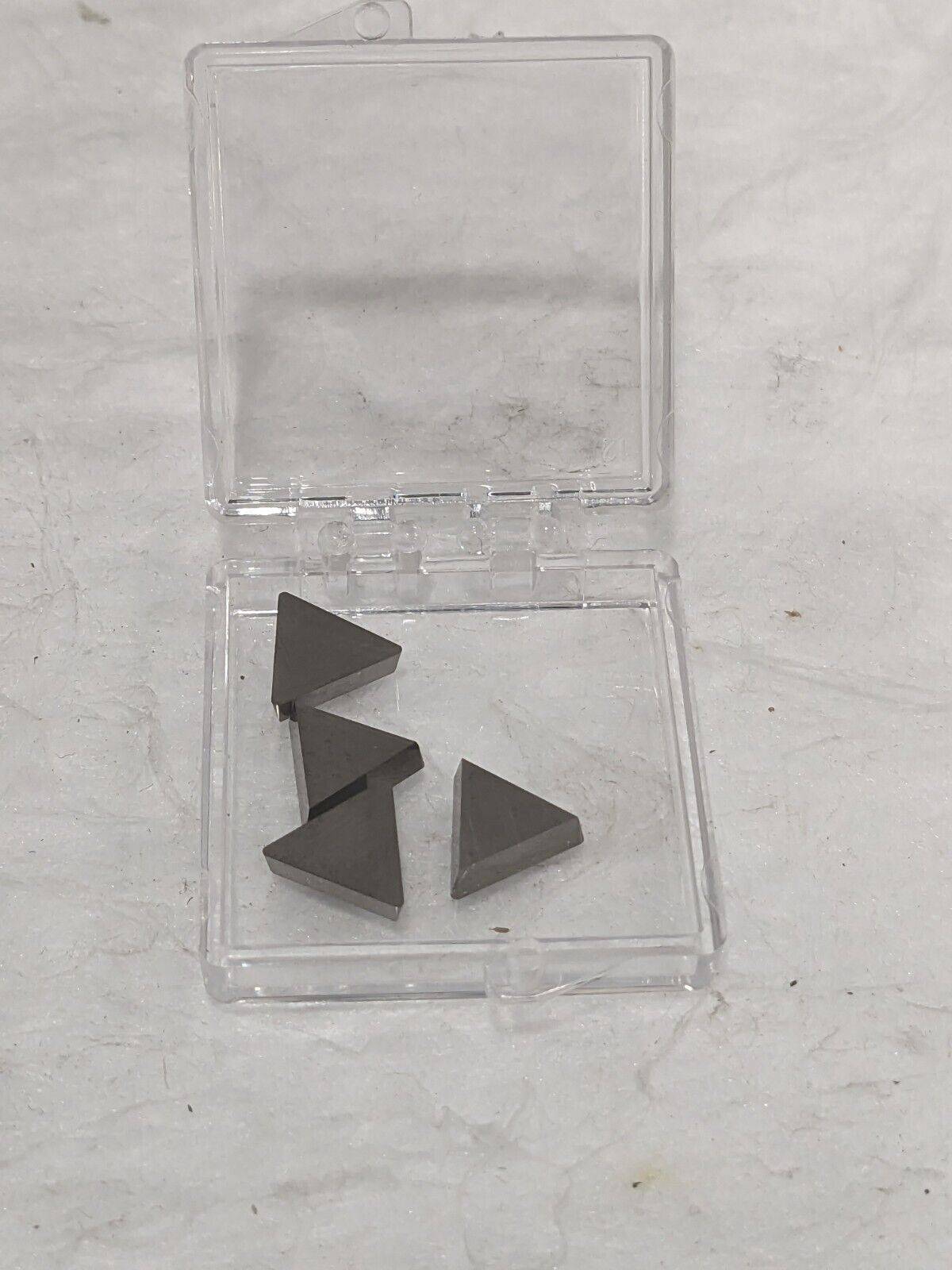

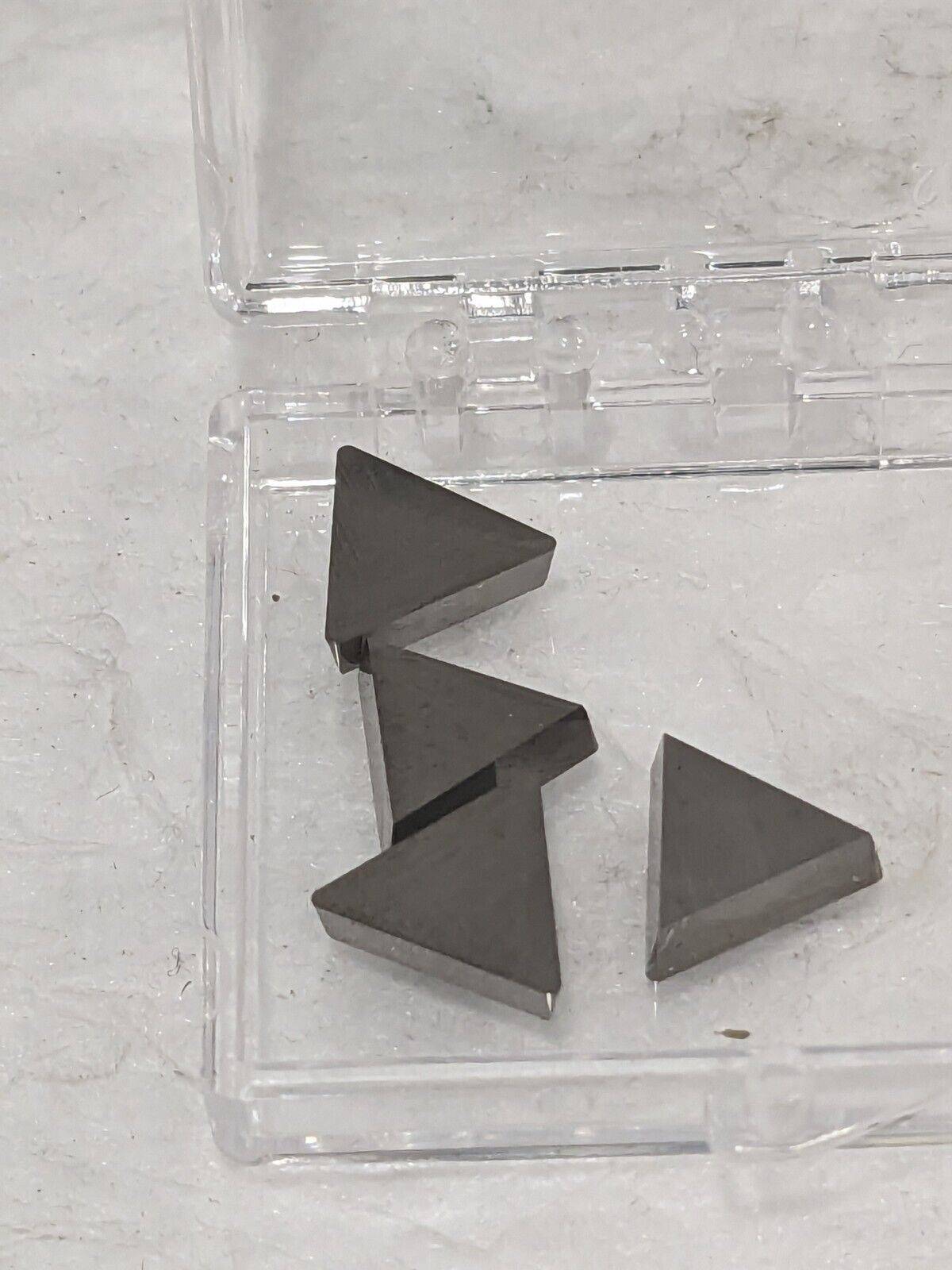

1 Lot of 4 Inserts
MSRP: $40.00
- Insert Style TPG
- Insert Size Code 18151
- Insert Shape Triangle
- Included Angle 60
- Inscribed Circle (Decimal Inch) 0.2188
- Corner Radius (Decimal Inch) 0.0156
- Insert Material Cermet
- Manufacturer Grade TN60
- Coating/Finish TiCN; NbC
- Relief Angle 11
- Wiper Edge No
- Insert Thickness (Decimal Inch) 0.0938
- Insert Hand Neutral
- Number Of Cutting Edges 3
- Insert Shape Code T
- Corner Radius (Inch) 1/64
- Maximum Depth of Cut (Decimal Inch) 0.1182
- Inscribed Circle (Inch) 7/32
- Insert Holding Method Clamp
- Insert Thickness (Inch) 3/32
- Clearance Code P
- Tolerance Code G
- Series ISOI
- Coating Process Uncoated
- Length Range (Decimal Inch) 0.3000 – 0.4000
- Rake Positive
- Insert Length (Decimal Inch) 0.3546
- Primary Workpiece Material Steel
- Primary Workpiece Material Code P
- Iso Code TPGN090204
- Standards ISO; ANSI
- Manufacturers Catalog Number TSJ02657
- Material Grade P01; P10; P20
- UNSPSC Code 23242105
- Coating Classification Uncoated
- Industry Standard Number TPG18151TN60
- Width (Decimal Inch – 4 Decimals) 0.3546
- Multi-Use Tool Yes
- Full Radius No
- Multi-Use Application External Turning; Chamfering; Facing; Boring
These items appear to be new and in good condition. SOLD AS IS.
Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
April 11 2024
TB 16325
BW 1 Bin 11
BRAND: Kyocera
MSRP: $40.00
INSERT MATERIAL: Cermet
MODEL: TSJ02657
MPN: Does Not Apply
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: Unknown
LOCATION: TB16325BW1Bin11
