Description
Kyocera
1 Lot of 10 Inserts
MSRP: $100.00
- Insert Style DCMT
- Insert Size Code 2151
- Insert Shape Diamond 55°
- Included Angle 55
- Inscribed Circle (Decimal Inch) 0.2500
- Corner Radius (Decimal Inch) 0.0156
- Insert Material Cermet
- Manufacturer Grade PV90
- Coating/Finish TiN
- Relief Angle 7
- Wiper Edge No
- Insert Thickness (Decimal Inch) 0.0938
- Insert Hand Neutral
- Number Of Cutting Edges 2
- Insert Shape Code D
- Corner Radius (Inch) 1/64
- Hole Diameter (Decimal Inch) 0.1102
- Maximum Depth of Cut (Decimal Inch) 0.2047
- Inscribed Circle (Inch) 1/4
- Insert Holding Method Screw
- Width (Inch) 1/4
- Insert Thickness (Inch) 3/32
- Clearance Code C
- Tolerance Code M
- Series ISOI
- Coating Process Uncoated
- Length Range (Decimal Inch) 0.6000 – 0.6500
- Rake Positive
- Insert Length (Decimal Inch) 0.6140
- Primary Workpiece Material Stainless Steel; Steel
- Primary Workpiece Material Code P; M

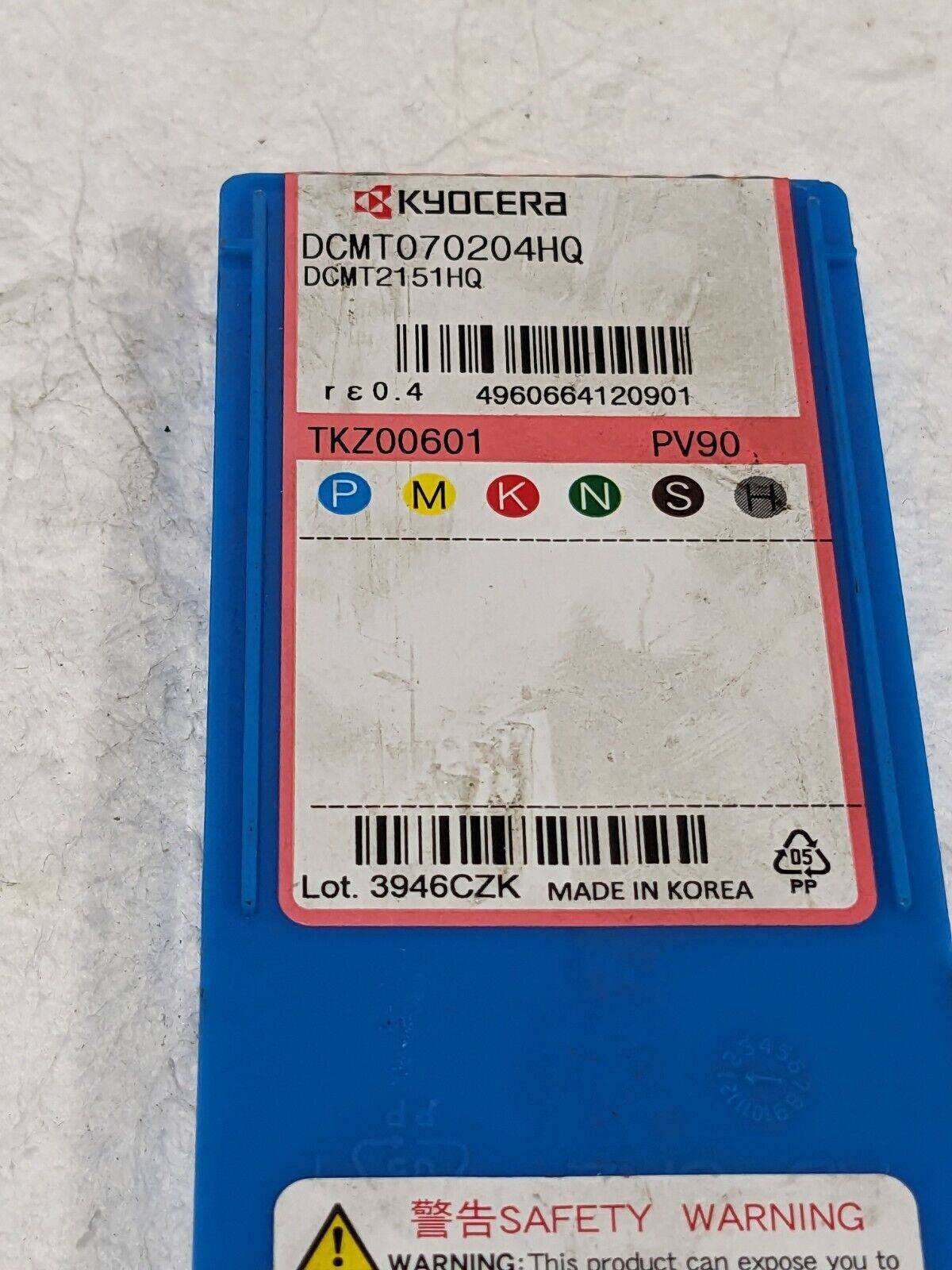

- Iso Code DCMT070204HQ
- Standards ISO; ANSI
- Manufacturers Catalog Number TKZ00601
- Material Grade P01; M20; M10; P10; P20; M01
- UNSPSC Code 23242105
- Coating Classification Uncoated
- Chip Breaker HQ
- Rake Angle 15
- Cutting Edge Style Honed
- Industry Standard Number DCMT2151HQPV90
- Width (Decimal Inch – 4 Decimals) 0.25
- Multi-Use Tool Yes
- Full Radius No
- Multi-Use Application External Turning; Back Boring; Copying
These items are new and in the original sealed package. SOLD AS IS.
Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
April 09 2024
TB 16294
Cab Padme Bin 2
BRAND: Kyocera
MSRP: $100.00
INSERT MATERIAL: Cermet
MODEL: TKZ00601
MPN: Does Not Apply
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: Japan
LOCATION: TB16294CabPadmeBin2
