Description
Kyocera
1 Lot of 10 Inserts
MSRP: $100.00
- Insert Style DCMT
- Insert Size Code 3251
- Insert Shape Diamond
- Included Angle 55
- Inscribed Circle (Decimal Inch) 0.3750
- Corner Radius (Decimal Inch) 0.0156
- Insert Material Cermet
- Manufacturer Grade CCX
- Coating/Finish TiCN; TiN; Al2O3
- Relief Angle 7
- Wiper Edge No
- Insert Thickness (Decimal Inch) 0.1563
- Insert Hand Neutral
- Number Of Cutting Edges 2
- Insert Shape Code D
- Corner Radius (Inch) 1/64
- Hole Diameter (Decimal Inch) 0.1732
- Maximum Depth of Cut (Decimal Inch) 0.3047
- Inscribed Circle (Inch) 3/8
- Insert Holding Method Screw
- Width (Inch) 3/8
- Insert Thickness (Inch) 5/32
- Clearance Code C
- Tolerance Code M
- Series ISOI
- Coating Process CVD
- Length Range (Decimal Inch) 0.7000 – 10.0000
- Rake Positive
- Insert Length (Decimal Inch) 0.9140
- Primary Workpiece Material Steel
- Primary Workpiece Material Code P
- Secondary Workpiece Material Cast Iron
- Secondary Workpiece Material Code K
- Iso Code DCMT11T304XQ
- Manufacturers Catalog Number TMJ40058
- Material Grade K20; K10; K01; P10; P20
- UNSPSC Code 23242105
- Coating Classification CVD
- Chip Breaker XQ
- Rake Angle 7
- Cutting Edge Style Honed
- Industry Standard Number DCMT3251XQCCX
- Width (Decimal Inch – 4 Decimals) 0.375
- Multi-Use Tool Yes
- Full Radius No
- Multi-Use Application External Turning; Back Boring; Copying
These items are new and in the original sealed package. SOLD AS IS.

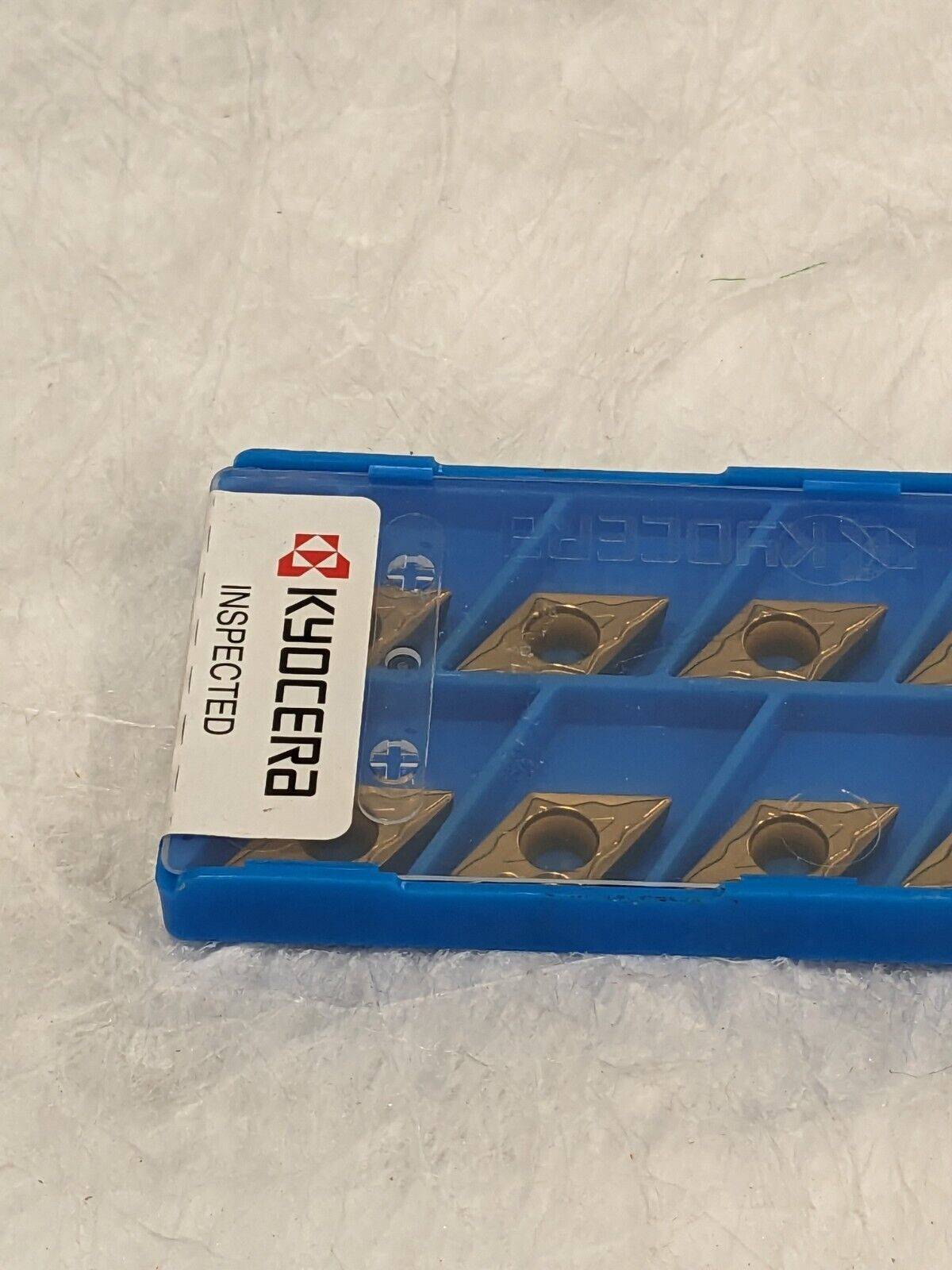

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
April 25 2024
TB 16478
Cab Sam Middle Bin 21
BRAND: Kyocera
MSRP: $100.00
INSERT MATERIAL: Cermet
MODEL: TMJ40058
MPN: Does Not Apply
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: Japan
LOCATION: TB16478CabSamMiddleBin21
