Description
Kyocera
MSRP: $50.00
Model: 8826872
Description:
Insert Style TPGB
Insert Size 221
Material CBN
Inscribed Circle (mm) 6.35
Inscribed Circle (Decimal Inch) 0.2500
Inscribed Circle (Inch) 1/4
Thickness (Inch) 1/8
Thickness (Decimal Inch) 0.1250
Thickness (mm) 3.18
Corner Radius (Inch) 1/64
Corner Radius (mm) 0.3969
Corner Radius (Decimal Inch) 0.0156
Manufacturer’s Grade KBN25M
Coating Megacoat
Material Grade Micrograin
Hole Diameter (mm) 3.30
Hole Diameter (Decimal Inch) 0.1300

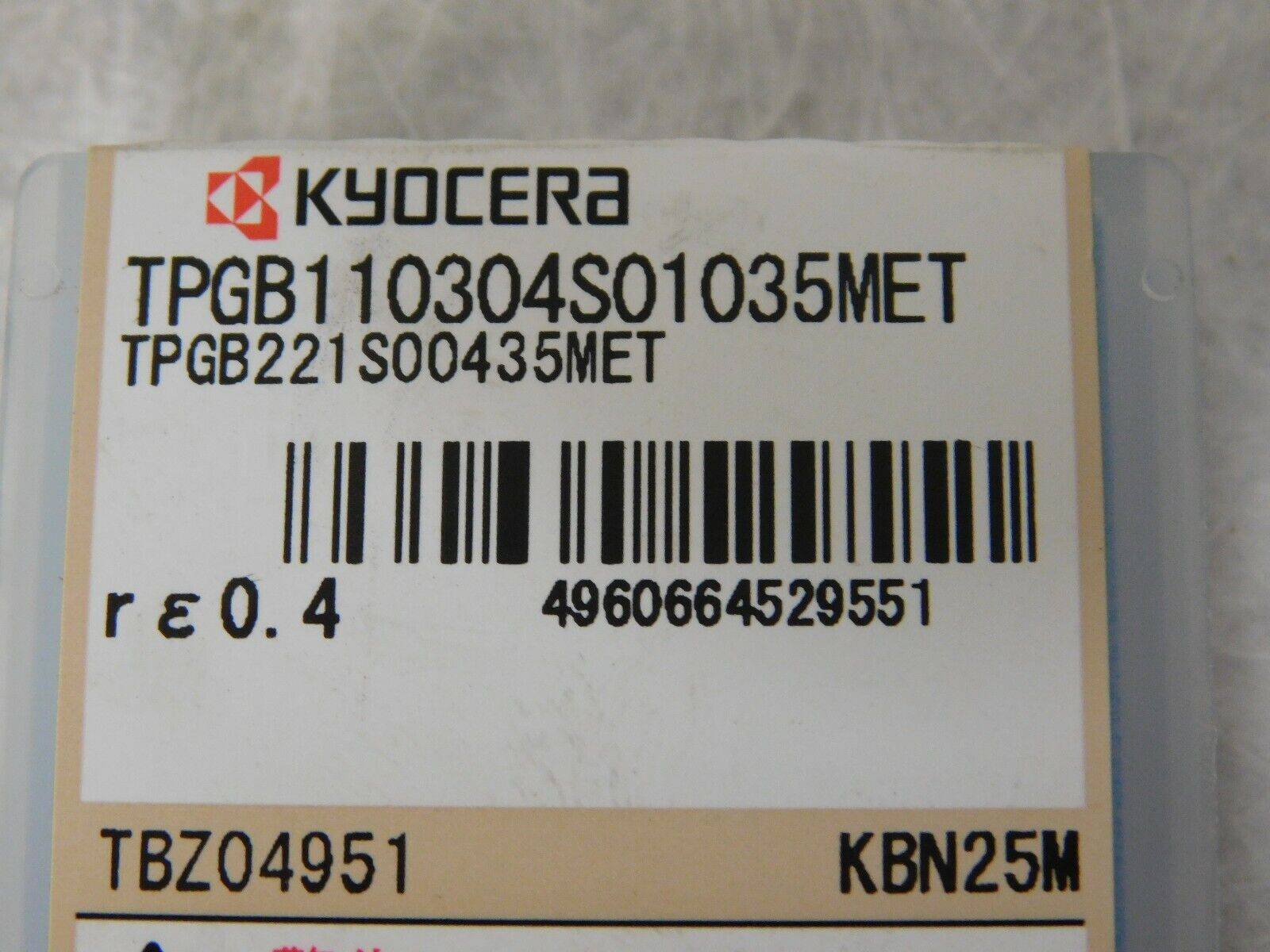

ISO Number TPGB110304S01035MET
Rake Positive
Relief Angle 11
Manufacturers Catalog Number TPGB221S00435MET
Primary Workpiece Material H
Included Angle 60
Cutting Direction Neutral
Insert Hand Neutral
Insert Holding Method Screw
Cutting Edge Style Chamfered & Honed
Multi Use Application Turning
MultiUseTool No
Shape Triangle

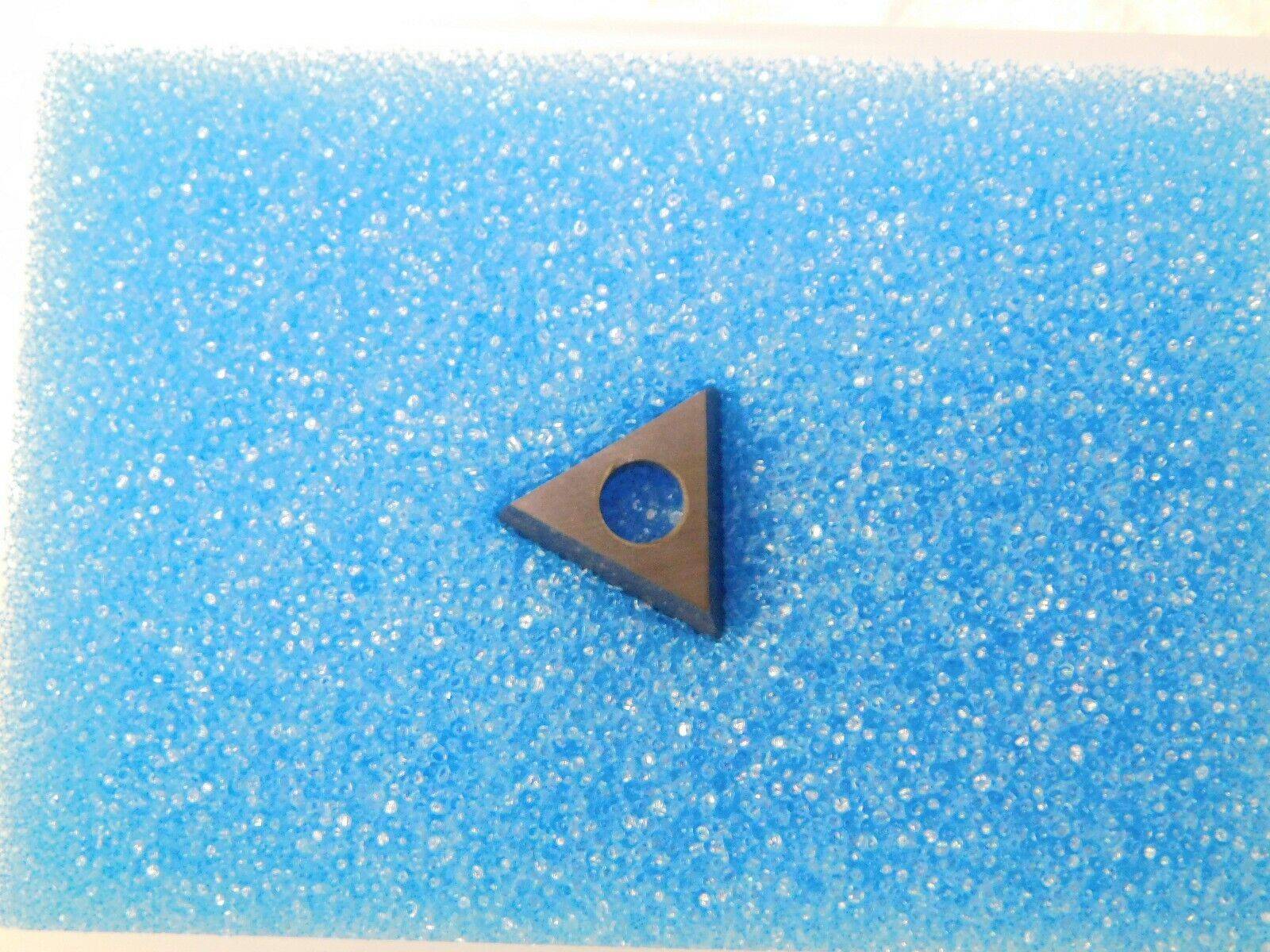

This listing is for One Insert that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Tina June 24 2020
TB 5456
Cab Tiff Bin H6
MODEL: 8826872
LOCATION: TB5456CabTiffBinH6
MSRP: 50.00
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: Unknown
MPN: Does Not Apply
BRAND: Kyocera
INSERT MATERIAL: CBN
