Description
Kyocera
Carbide Grooving Inserts
MSRP: $140
- Insert Style GDM
- Insert Size 3020
- Insert Size Code 3020
- Material Carbide
- Insert Material Carbide
- Cutting Width (mm) 3.00
- Cutting Width (Decimal Inch) 0.1181
- Coated Coated
- Manufacturer’s Grade PR1535; PR1535
- Manufacturer Grade PR1535
- Coating Megacoat Nano
- Cutting Direction Neutral
- Insert Hand Neutral
- Cutting Height (mm) 4.30
- Cutting Height (Decimal Inch) 0.1693
- Corner Radius 0.009843 in; 0.25 mm
- Chipbreaker PM
- Multi-use Tool Yes
- Cutting Tool Application Cut-Off
- Coating Process PVD
- Primary Workpiece Material Code S
- Secondary Workpiece Material Code M
- Ansi Code GDM3020N025PMPR1535
- Iso Code GDM3020N025PM
- Standards ANSI; ISO
- Relief Angle 3?
- Multi-Use Application Cut-Off
- Multi-Use Tool Yes
- Corner Radius (mm) 0.25
- Corner Radius (Decimal Inch) 0.009843
- Coating Process PVD; PVD
- Overall Length (mm) 20.00
- Overall Length (Decimal Inch) 0.7874
- Series GD
- Rake Angle 3?
- Rake Positive
- ISO Number GDM3020N025PM
- Manufacturers Catalog Number GDM3020N-025PM
- Insert Thickness (Decimal Inch) 0.0906
- Insert Thickness (mm) 2.3000
- Series Number GD

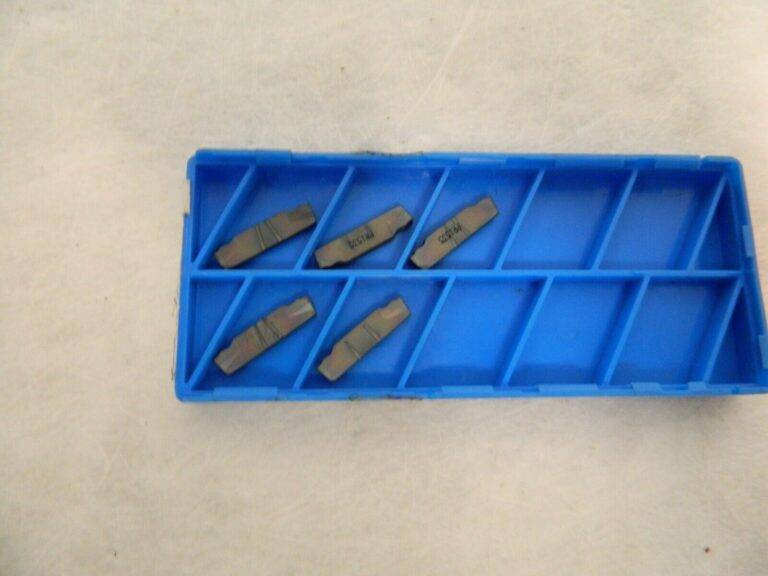

New open box. Includes 5 inserts.

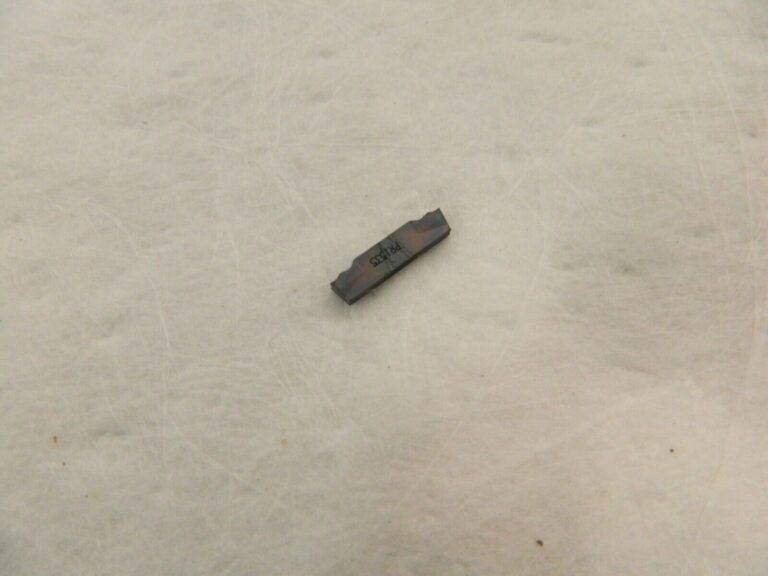

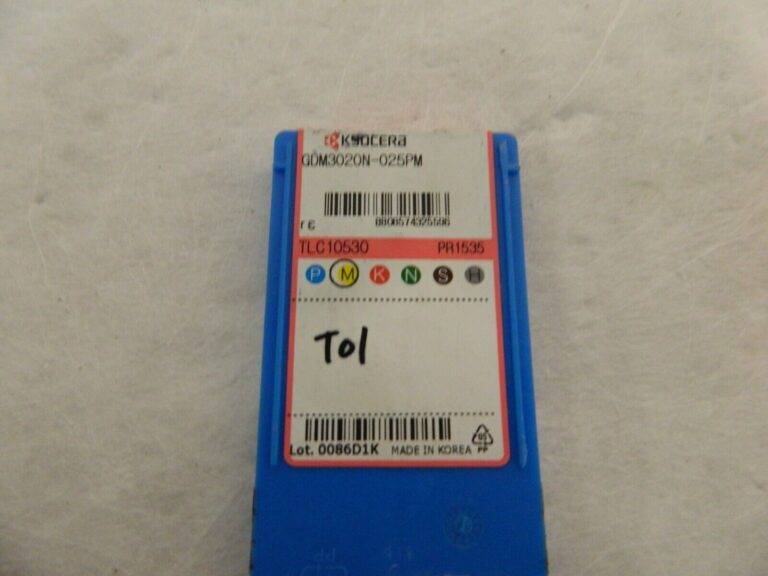

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
aug 29 24
HS6450
kasi C8
BRAND: Kyocera
UNIT TYPE: Unit
INSERT MATERIAL: Carbide
MPN: 8842613
INSERT TYPE: Grooving Insert
COUNTRY/REGION OF MANUFACTURE: Korea, Republic of
UNIT QUANTITY: NA
CALIFORNIA PROP 65 WARNING: na
