Description
Kyocera
MSRP: $360
Model: 8827635
Description:
Insert Style TKFB
Insert Size 12
Material Carbide
Thickness (Decimal Inch) 0.1181
Thickness (mm) 3.00
Corner Radius (mm) 0.0508
Corner Radius (Decimal Inch) 0.0020
Manufacturer’s Grade PR1025
Coating TiCN
Hole Diameter (mm) 5.20
Hole Diameter (Decimal Inch) 0.2047
Rake Positive
Coating Process PVD
Manufacturers Catalog Number TKFB12R28005M PR1025
Primary Workpiece Material P
Included Angle 60
Cutting Direction Right Hand
Insert Hand Right Hand
Maximum Depth of Cut (mm) 4.60
Maximum Depth of Cut (Decimal Inch) 0.1811
Insert Holding Method Screw
Cutting Width (mm) 2.80
Multi Use Application Turning
MultiUseTool No
Shape Triangle
Additional Information: Please note the item does not come with the original packaging

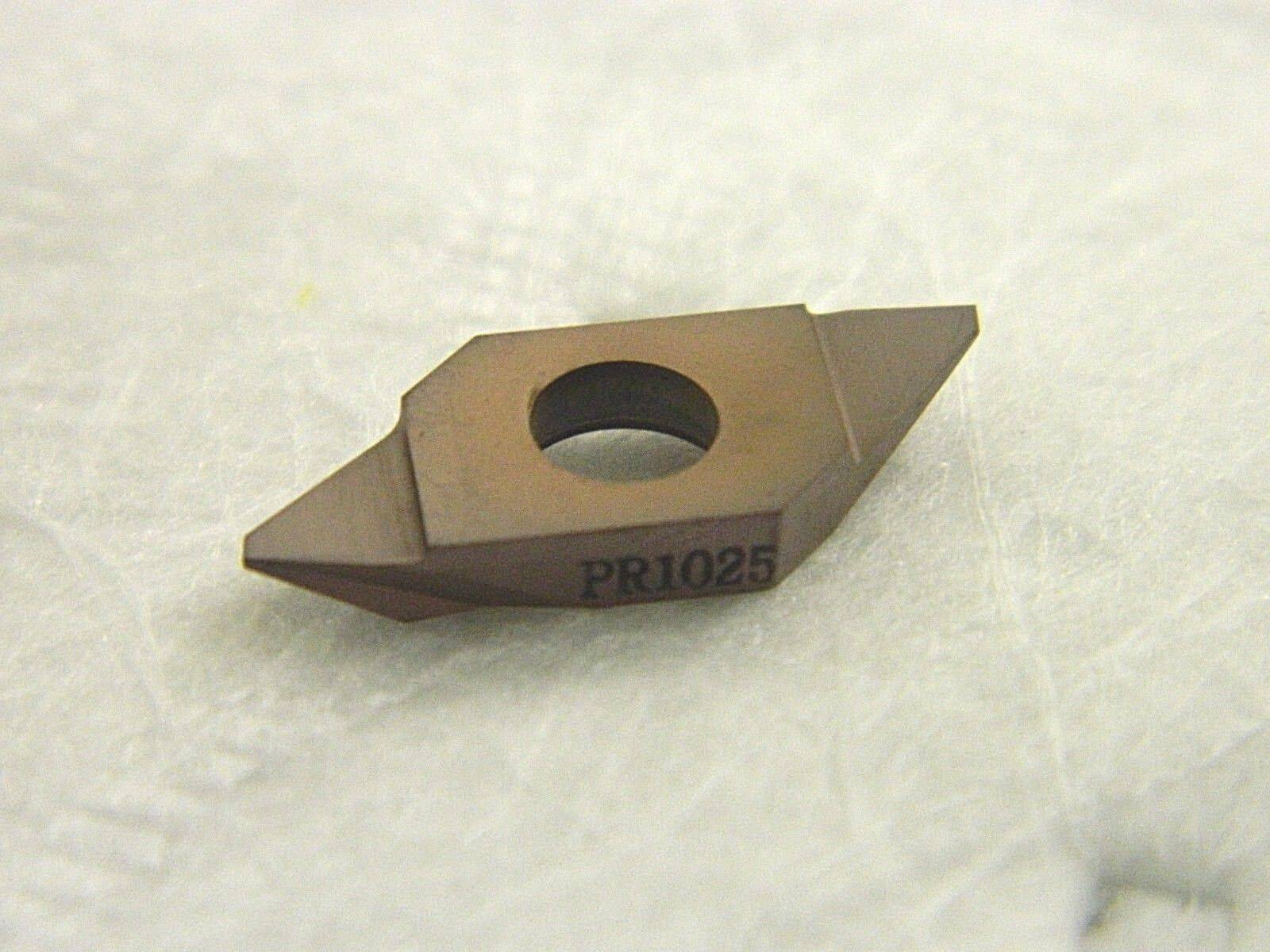

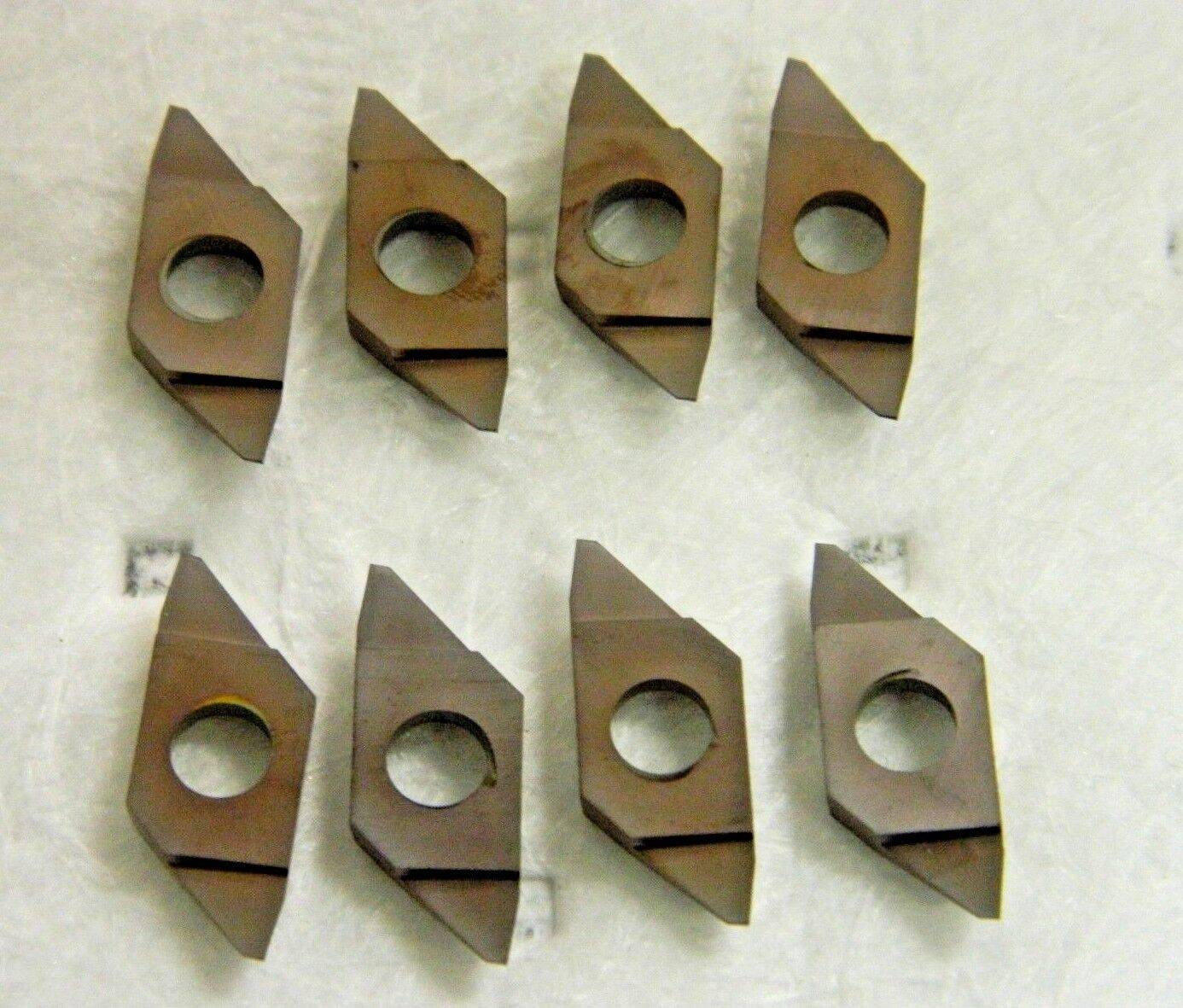

This listing is for One Lot of 8 Carbide Turning Inserts that is in the picture as well as described. Please note the item does not come with the original packaging. Comes exactly as shown in photos. Please ask any questions prior to buying!
