Description
KYOCERA
60° Lead Angle Indexable & Chamfer End Mill THC05847
MSRP: $135
- Cutting Diameter (Decimal Inch) 0.767717
- Cutting Diameter (mm) 19.50
- Minimum Cutting Diameter (mm) 8.00
- Minimum Cutting Diameter (Decimal Inch) 0.314961
- Maximum Cutting Diameter (Decimal Inch) 0.748031
- Maximum Cutting Diameter (mm) 19.00
- Shank Type Flatted
- Shank Diameter (Inch) 0.787402
- Shank Diameter (mm) 20.00
- Compatible Insert Size Code SEKW422FN; SEKW421TN; SEKW421FN; SEMT421C; SEKW422TN
- Number Of Cutter Inserts 1
- Overall Length (mm) 110.00
- Overall Length (Decimal Inch) 4.3307
- Cutting Direction Right Hand
- Insert Style SEKW 421; SEKW 422; SEMT 421
- Series MCSE
- Through Coolant None
- Maximum Depth of Cut (mm) 10.00
- Maximum Depth of Cut (Decimal Inch) 0.3937
- Toolholder Style MCSE
- Functional Length 4.33 in
- Maximum Body Diameter 20 mm; 0.787 in
- Tool Application Slotting
- Number of Cutter Inserts 1
- Insert Holding Method Screw
- Number of Flutes 1
- Head Length (Decimal Inch) 1.5748
- Head Length (mm) 40.00
- Weldon Flat No
- Axial Rake Angle 0
- Radial Rake Angle -3.50
- Shank Length (Decimal Inch) 2.7559
- Shank Length (mm) 70.00
- Complete Insert Compatibility SEMT 421C; SEKW 422TN; SEKW 421TN; SEKW 422FN; SEKW 421FN

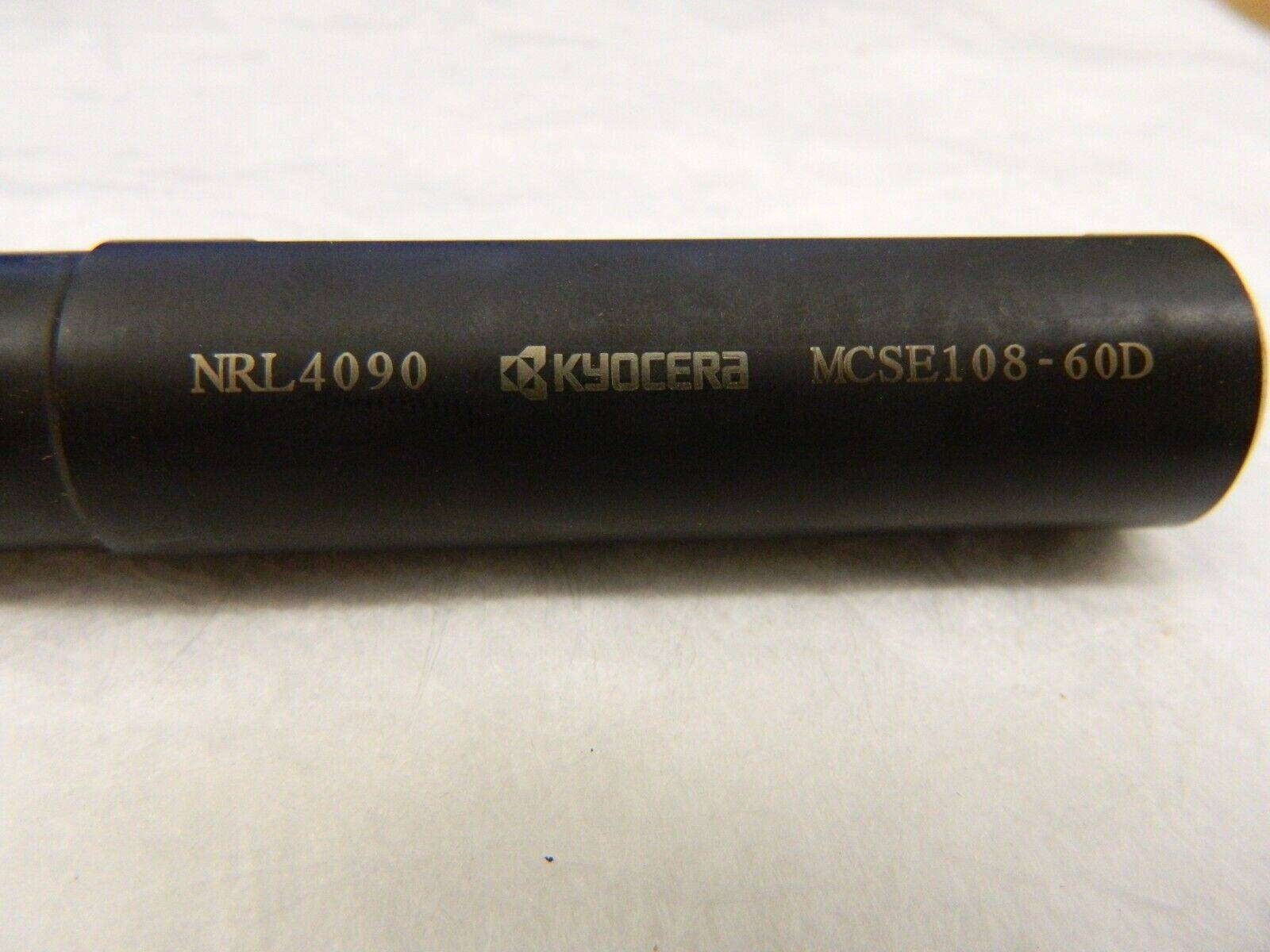

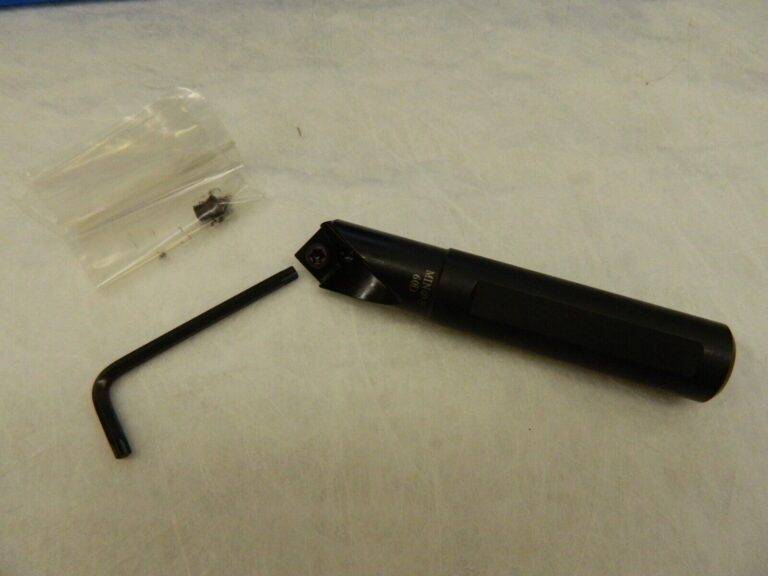

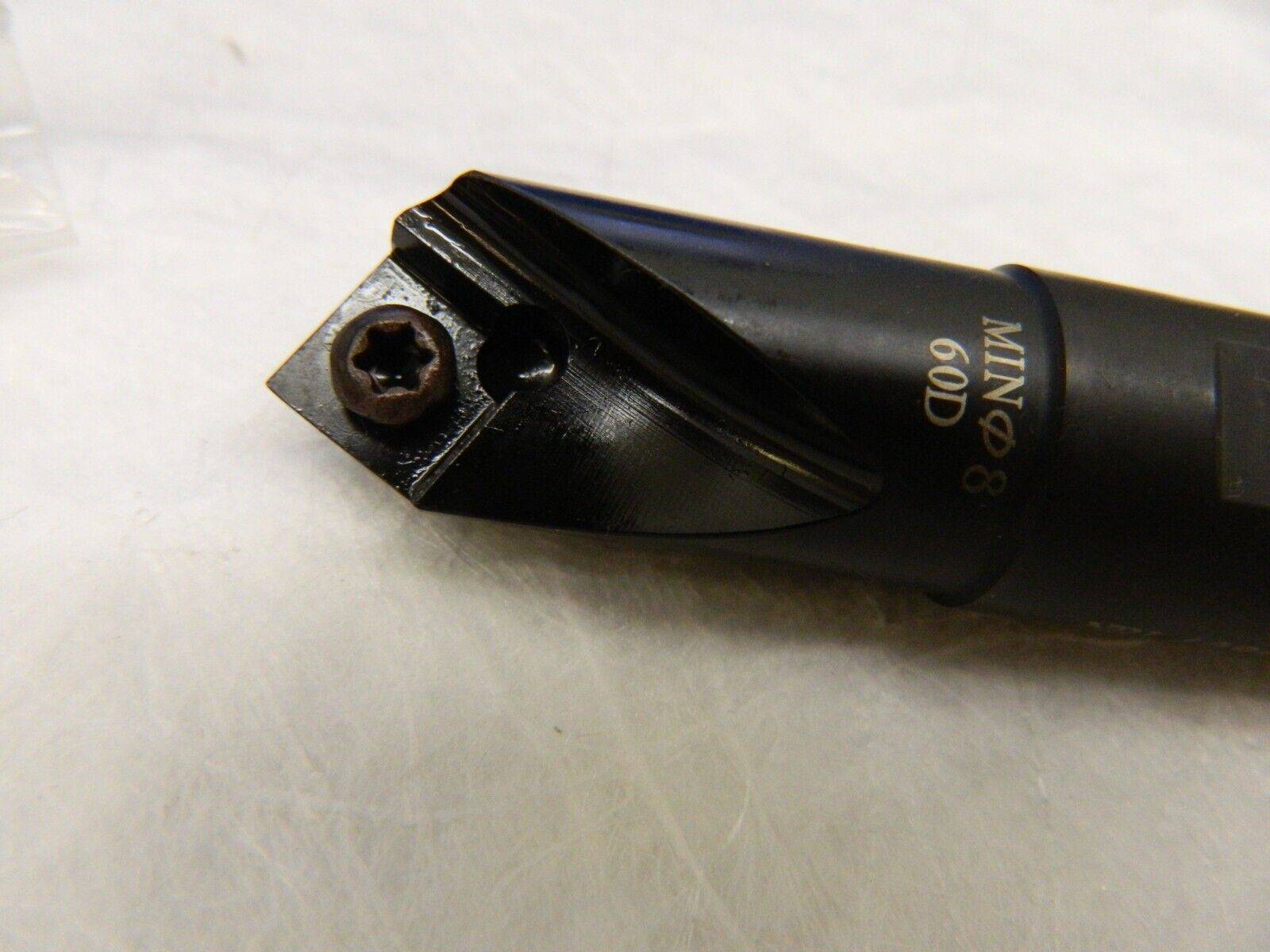

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Dec 28 22
HS549
C67
END MILL TYPE: Chamfer & Angle End Mill
MSRP: $135
MPN: THC05847
