Sale!
Komet Carbide Boring Insert TOHX140304 G06 Grade BK6425 Qty 10 W3026060046425O
Komet Carbide Boring Insert TOHX140304 G06 Grade BK6425 Qty 10 W3026060046425O
Komet Carbide Boring Insert TOHX140304 G06 Grade BK6425 Qty 10 W3026060046425O

Komet Carbide Boring Insert Tohx140304 G06 Grade Bk6425 Qty 10 W3026060046425o

Original price was: $150.00.Current price is: $69.42.

Komet

MSRP: $150.00

Model: W3026060046425O

Description:

Material Carbide
Insert Style TOHX
Insert Size 140304
Manufacturer’s Grade BK6425
Inscribed Circle (mm) 8.20
Inscribed Circle (Decimal Inch) 0.3228
Thickness (mm) 3.00
Thickness (Decimal Inch) 0.1181
Corner Radius (mm) 0.40
Corner Radius (Decimal Inch) 0.0157
Coating TiCN/Al2O3/TiN
Chipbreaker G06
Length (mm) 4.50
Length (Decimal Inch) 0.1772
Rake Positive
Rake Angle 6
Relief Angle 8
Included Angle 60
Cutting Direction Left Hand
Insert Hand Left Hand
Coating Process CVD
Insert Holding Method Screw
Shape Triangle

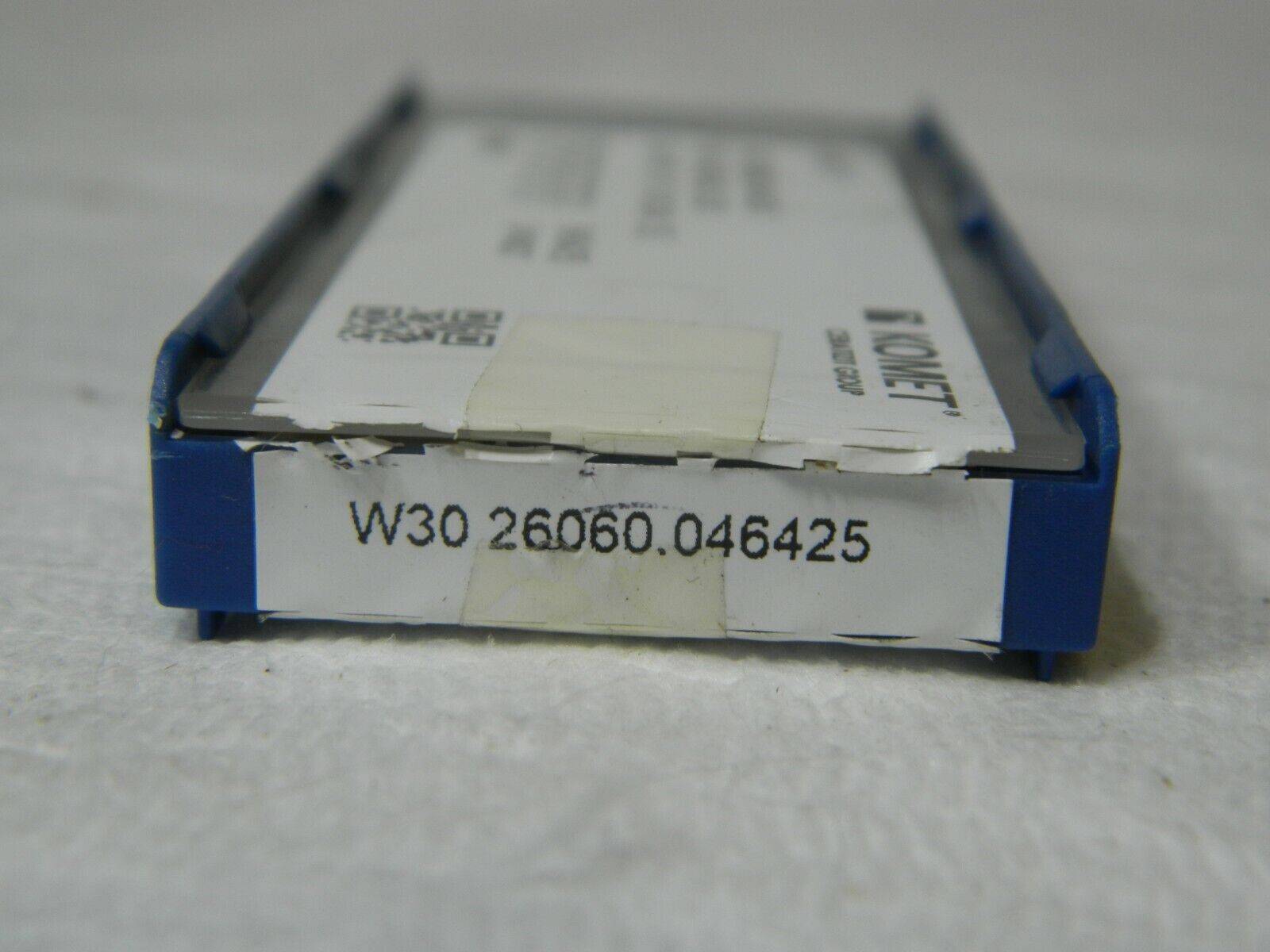

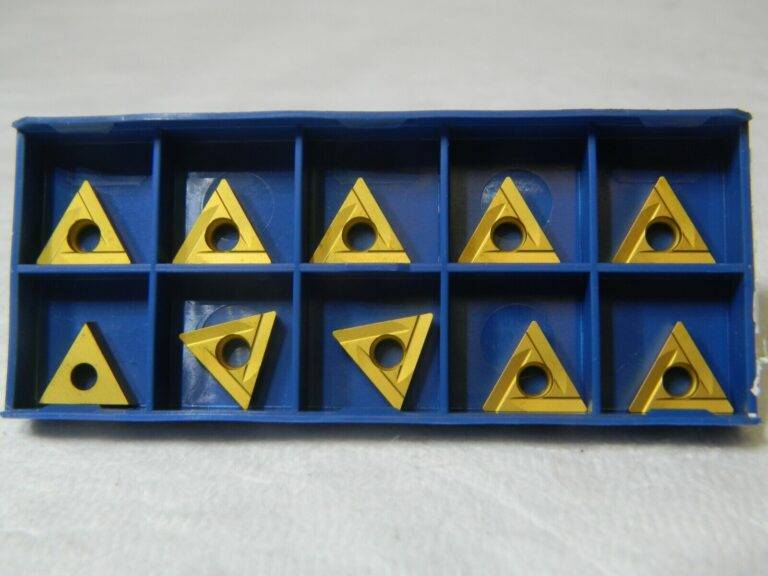

This listing is for One Lot of 10 Inserts that is in the picture as well as described. Please ask any questions prior to buying!


Tina  January 11 2021

TB 7685
Cab Dragon Bin 75

LOCATION: TB7685CabDragonBin75
MPN: Does Not Apply
MSRP: 150.00
COUNTRY/REGION OF MANUFACTURE: Germany
INSERT MATERIAL: Carbide
MODEL: W3026060046425O
BRAND: KOMET

4 in stock

SKU: Jan1121TB7685CabDragonBin75 Category:

Description

Komet

MSRP: $150.00

Model: W3026060046425O

Description:

Material Carbide
Insert Style TOHX
Insert Size 140304
Manufacturer’s Grade BK6425
Inscribed Circle (mm) 8.20
Inscribed Circle (Decimal Inch) 0.3228
Thickness (mm) 3.00
Thickness (Decimal Inch) 0.1181
Corner Radius (mm) 0.40
Corner Radius (Decimal Inch) 0.0157
Coating TiCN/Al2O3/TiN
Chipbreaker G06
Length (mm) 4.50
Length (Decimal Inch) 0.1772
Rake Positive
Rake Angle 6
Relief Angle 8
Included Angle 60
Cutting Direction Left Hand
Insert Hand Left Hand
Coating Process CVD
Insert Holding Method Screw
Shape Triangle

This listing is for One Lot of 10 Inserts that is in the picture as well as described. Please ask any questions prior to buying!


Tina  January 11 2021

TB 7685
Cab Dragon Bin 75

LOCATION: TB7685CabDragonBin75
MPN: Does Not Apply
MSRP: 150.00
COUNTRY/REGION OF MANUFACTURE: Germany
INSERT MATERIAL: Carbide
MODEL: W3026060046425O
BRAND: KOMET

Additional information

Weight 0.90718474 lbs
Location

MSRP

COUNTRY/REGION OF MANUFACTURE

Germany
Insert Material

Condition

New – Open box
Condition Description

“New old Inventory, Never used. Please refer to our Pictures, Photos and description. Boxes or packaging may be open due to testing and or for pictures for your viewing!”
