Description
KENNAMETAL Turning Insert: DNMG443MS KCU25, Carbide 4050489
MSRP: $150
- ANSI Insert Code DNMG443
- ISO Insert Code DNMG150612
- Relief Angle 0
- Insert Style DNMG
- Corner Radius (Inch) 3/64
- Corner Radius (Decimal Inch) 0.0469
- Included Angle 55
- Manufacturer Grade KCU25
- Coating/Finish AlTiN
- Wiper Edge No
- Insert Hand Neutral
- Insert Thickness (Inch) 1/4
- Insert Thickness (Decimal Inch) 0.2500
- Series KENLOC
- Inscribed Circle (Decimal Inch) 0.5000
- Inscribed Circle (Inch) 1/2
- Insert Material Carbide
- Insert Shape D – Diamond (Rhombic) 55-Deg
- Chip Breaker Operation Medium Machining; Roughing
- Grade Characteristics Aluminum & Non-Ferrous (N) – Moderate Wear-Resistance and Toughness; Steel (P) – Moderate Wear-Resistance and Toughness; Cast Iron (K) – Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – Moderate Wear-Resistance and Toughness; Stainless Steel (M) – Moderate Wear-Resistance and Toughness
- Side Clearance Negative
- Number Of Cutting Edges 4
- Insert Shape Code D
- Hole Diameter (Decimal Inch) 0.2031
- Maximum Depth of Cut (Fractional Inch) 13/32
- Maximum Depth of Cut (Decimal Inch) 0.4065
- Insert Holding Method Pin; Clamp
- Width (Inch) 1/2
- Clearance Code N
- Tolerance Code M
- Coating Process PVD
- Length Range (Decimal Inch) 0.7000 – 10.0000
- Rake Negative
- Insert Length (Decimal Inch) 1.2208
- Primary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
- Primary Workpiece Material Code P; S; K; M; N
- Iso Code DNMG150612MS
- Standards ISO; ANSI
- Manufacturers Catalog Number 4050489
- Material Grade C6; C2
- Coating Classification PVD
- Chip Breaker MS
- Rake Angle 13
- Cutting Edge Style Honed
- Industry Standard Number DNMG443MS
- Width (Decimal Inch – 4 Decimals) 0.5000
- Multi-Use Tool Yes
- Full Radius No
- Multi-Use Application Back Boring; Facing; Turning; Back Turning; Boring
- ANSI Size Code 443
- ISO Size Code 150612
- UNSPSC Code 23242105
- Insert Size Code 443
(Description).

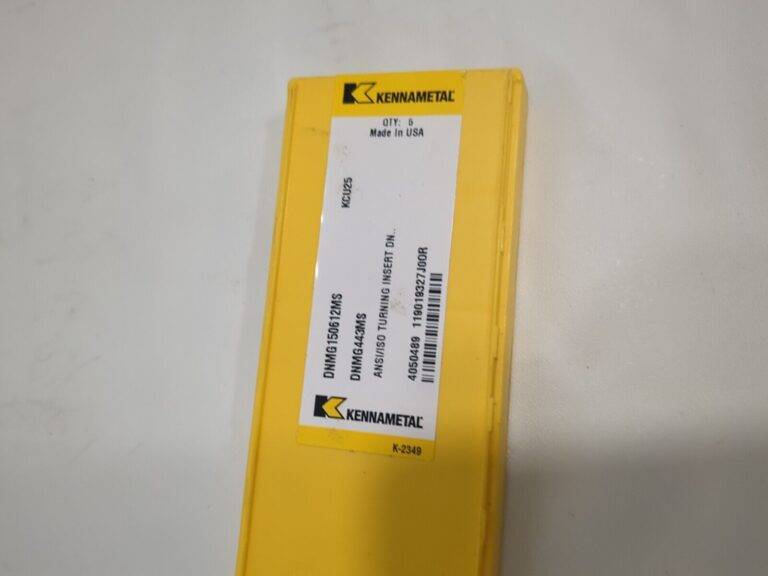

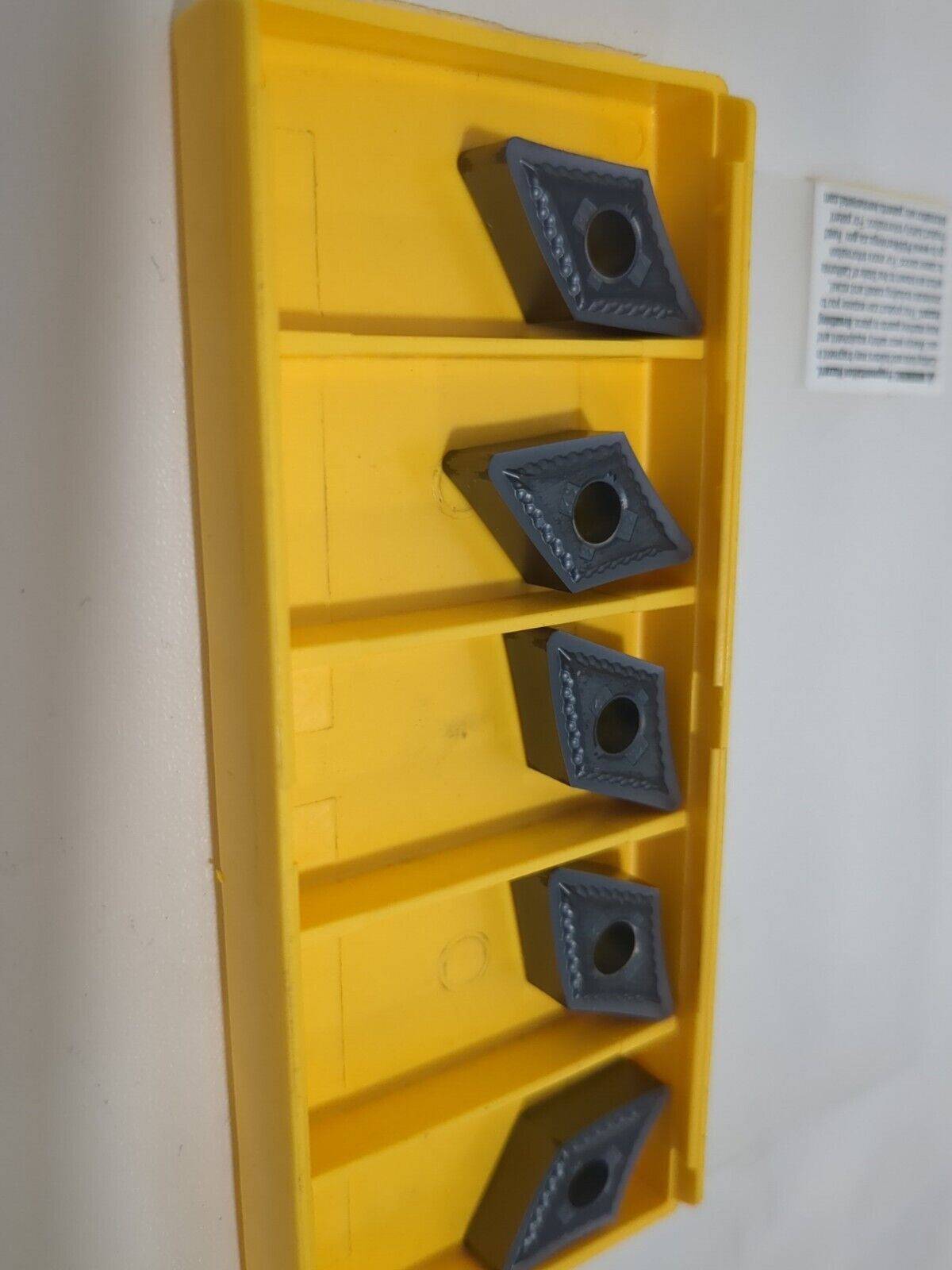

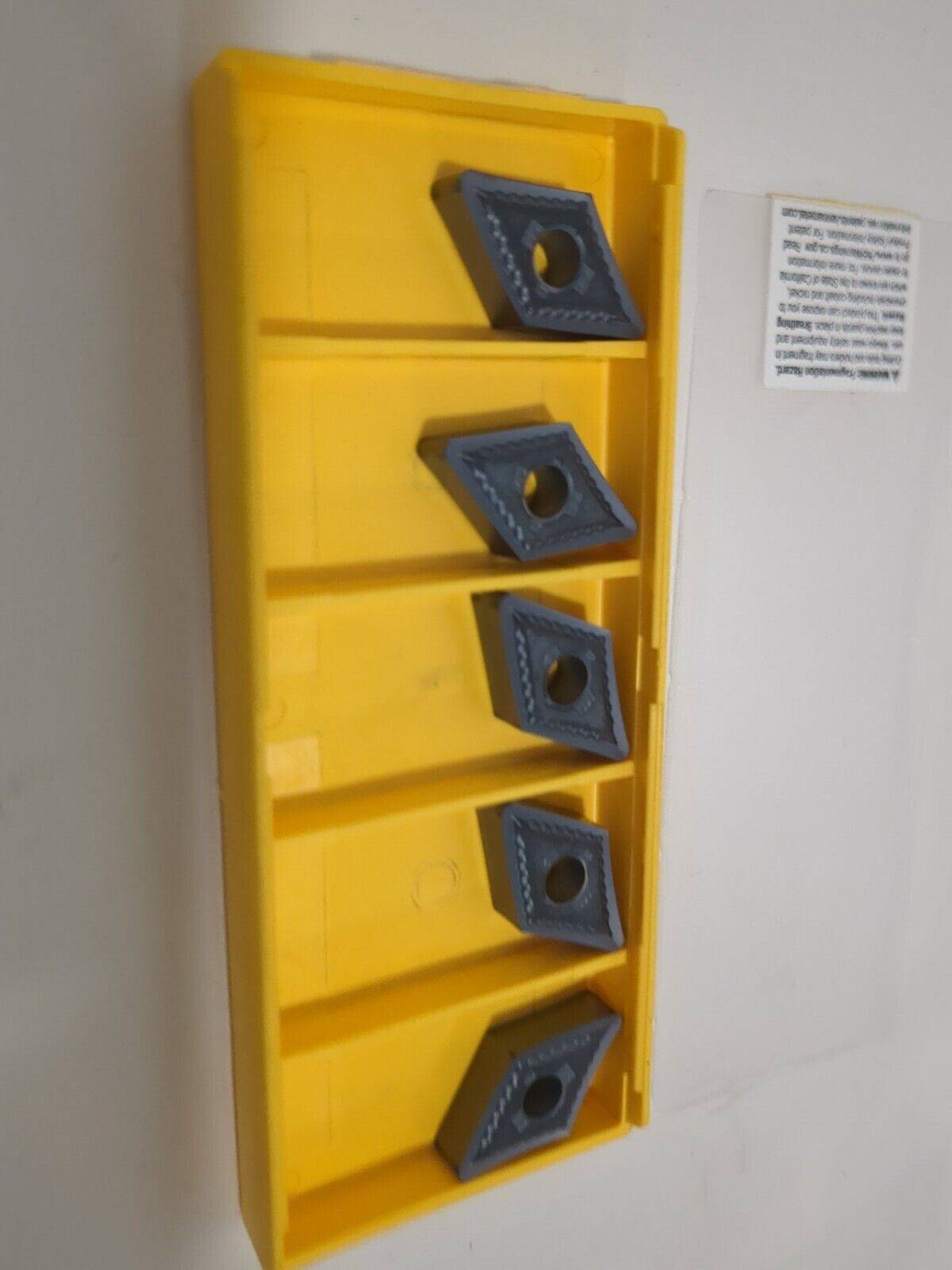

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
nov 08 24
HS7513
mike 8
BRAND: Kennametal
INSERT MATERIAL: Carbide
MPN: 4050489
INSERT TYPE: Turning Insert
