Description
Kennametal

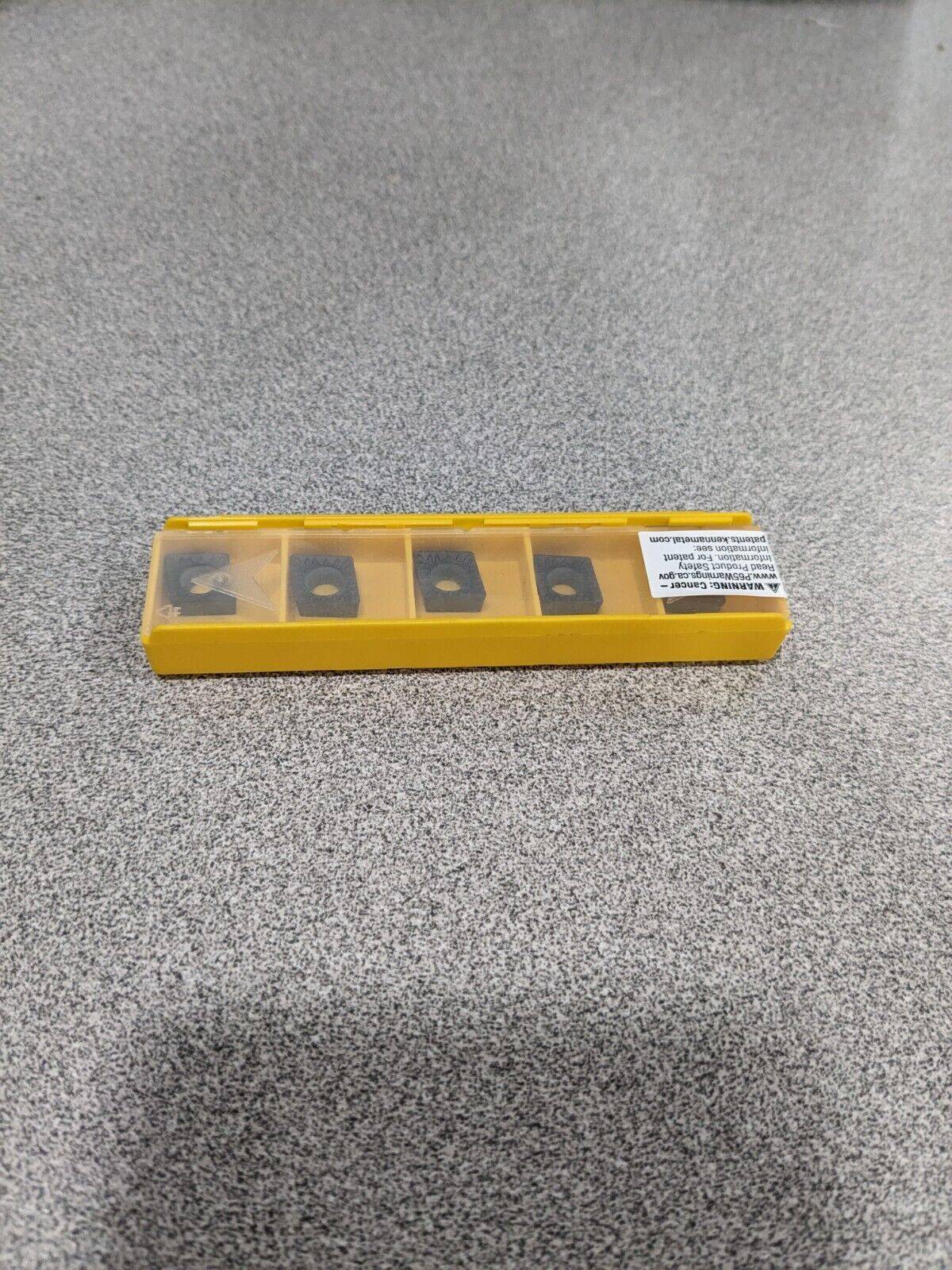

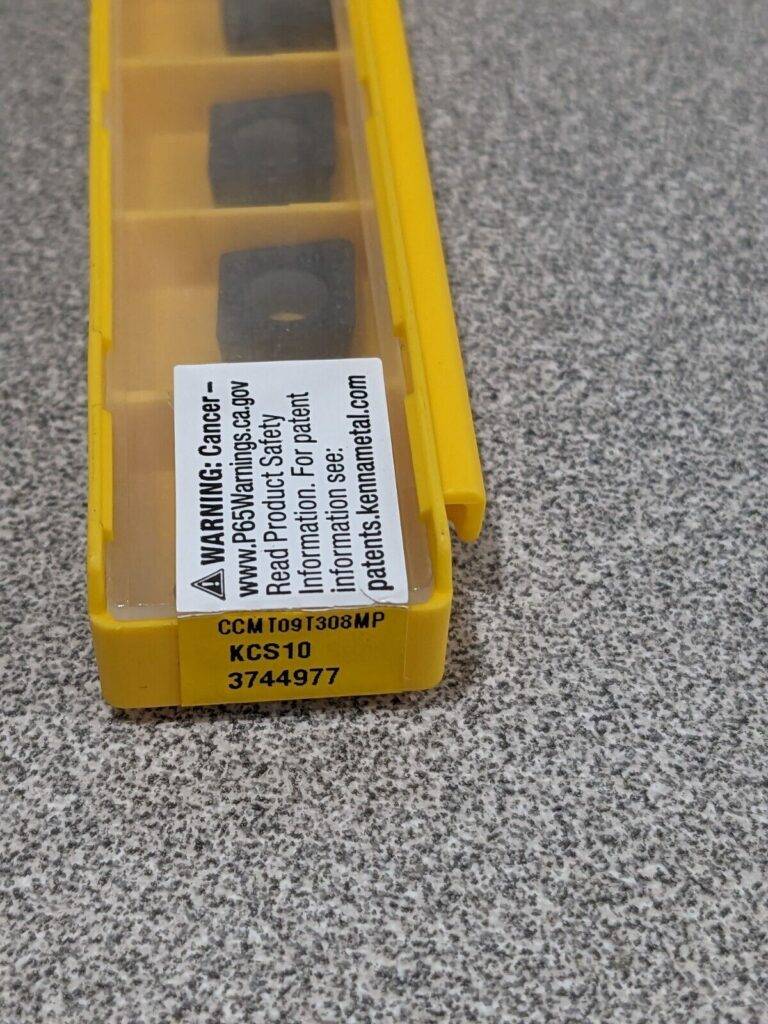

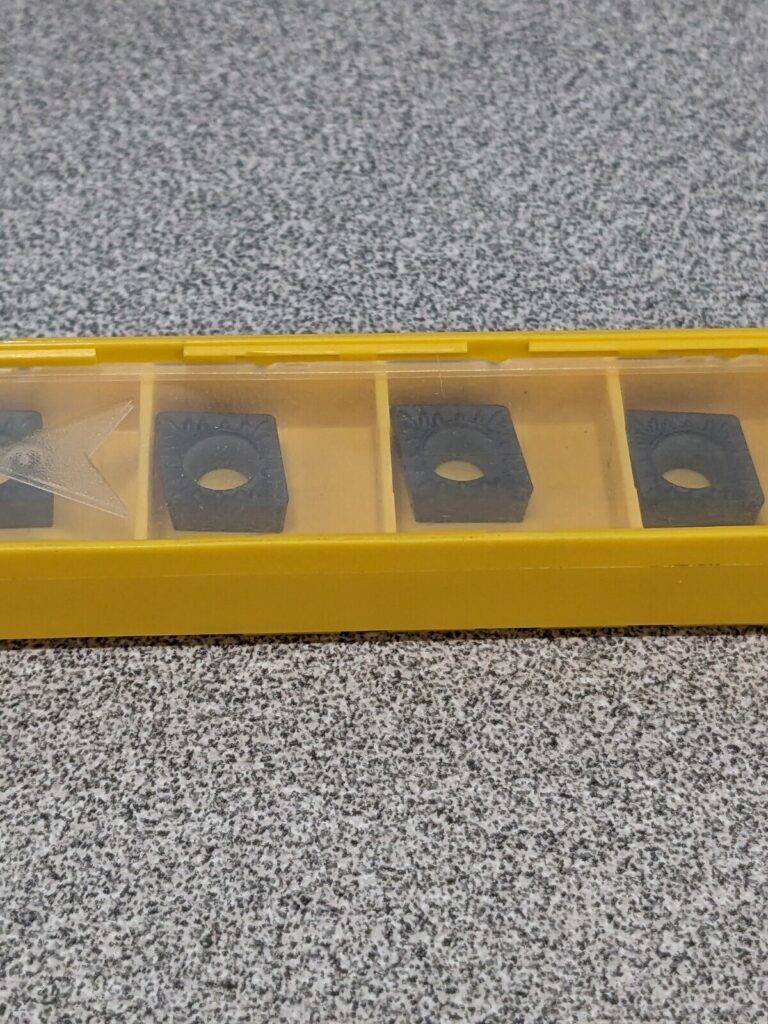

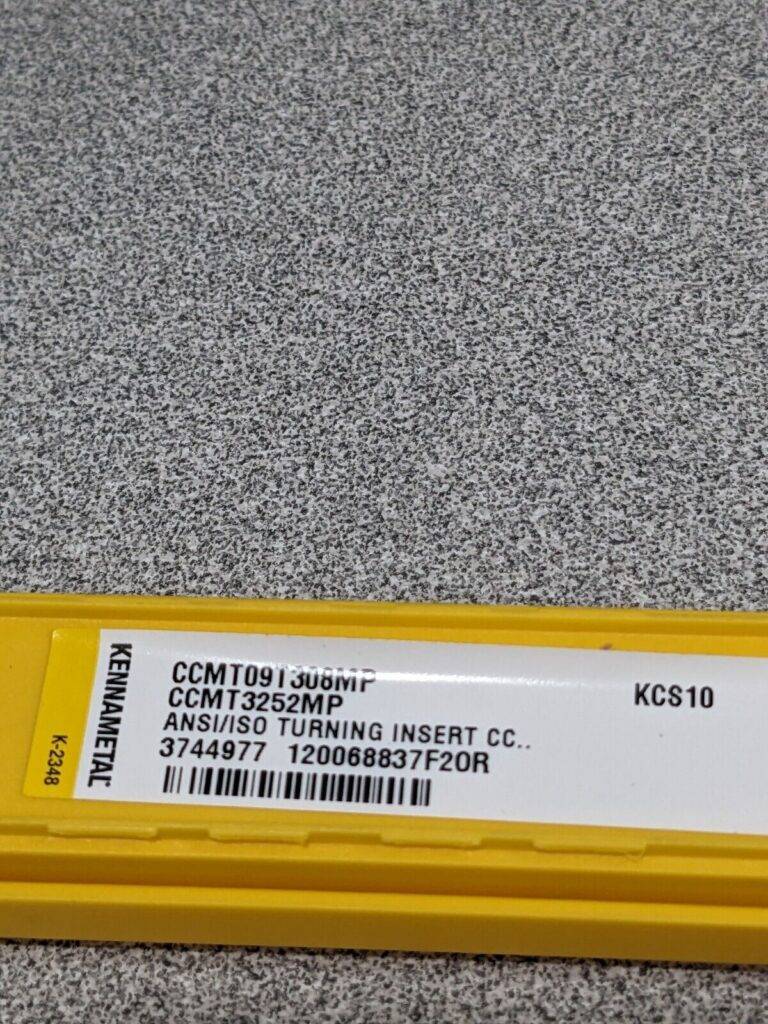

1 Lot of 5 Inserts
MSRP: $80.00
- Insert Style CCMT
- Insert Size Code 3252
- Insert Shape Diamond 80°
- Included Angle 80 degree
- Inscribed Circle (Decimal Inch) 0.3750
- Corner Radius (Decimal Inch) 0.0313
- Insert Material Carbide
- Manufacturer Grade KCS10
- Coating/Finish AlTiN
- Relief Angle 7
- Wiper Edge No
- Insert Thickness (Decimal Inch) 0.1563
- Insert Hand Neutral
- Number Of Cutting Edges 2
- Insert Shape Code C
- Corner Radius (Inch) 1/32
- Hole Diameter (Mm) ( – 0 Decimals) 4.40
- Hole Diameter (Decimal Inch) 0.1732
- Maximum Depth of Cut (Decimal Inch) 0.1268
- Inscribed Circle (Inch) 3/8
- Insert Holding Method Screw
- Width (Inch) 3/8 in
- Insert Thickness (Inch) 5/32
- Clearance Code C
- Tolerance Code M
- Series Screw-On
- Coating Process PVD
- Length Range (Decimal Inch) 0.3000 – 0.4000
- Rake Positive
- Insert Length (Decimal Inch) 0.3808
- Insert Length (mm) 9.67
- Primary Workpiece Material Stainless Steel; Superalloys & Titanium
- Primary Workpiece Material Code S; M
- Standards ISO; ANSI
- Manufacturers Catalog Number 3744977
- Material Grade C3; C4
- UNSPSC Code 23242105
- Coating Classification PVD
- Chip Breaker MP
- Rake Angle 12
- Cutting Edge Style Honed
- Industry Standard Number CCMT3252MP
- Width (Decimal Inch – 4 Decimals) 0.3750 in
- Multi-Use Tool Yes
- Full Radius No
- Multi-Use Application Facing; Turning; Boring
These items are new and in good condition. SOLD AS IS.
Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
March 06 2024
TB 15976
BW 2 Bin 37
BRAND: Kennametal
MSRP: $80.00
INSERT MATERIAL: Carbide
MODEL: 3744977
MPN: Does Not Apply
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: United States
LOCATION: TB15976BW2Bin37
