Description

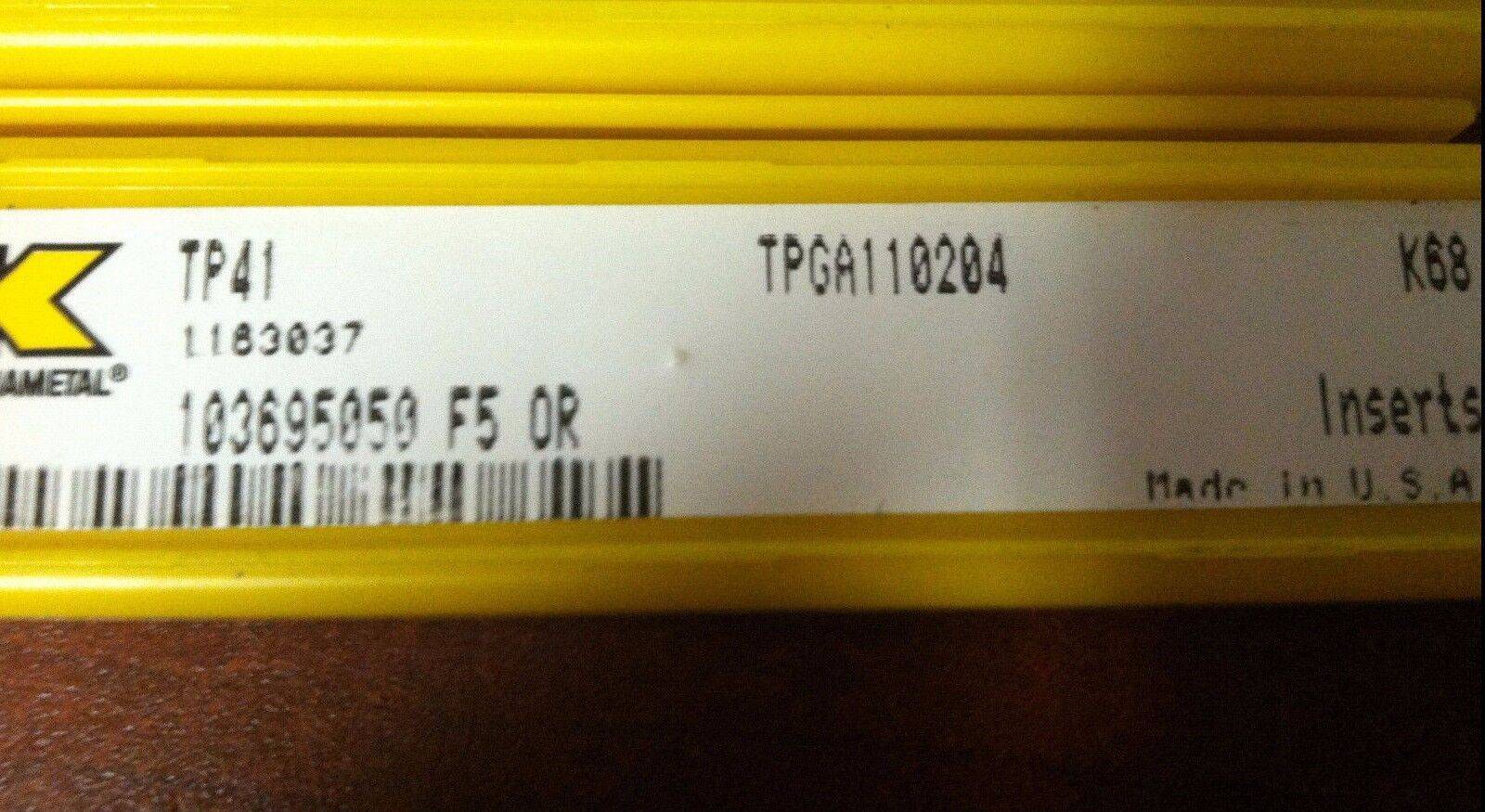

Kennametal 1163037 TP41 TPGA110204 K68 60° Uncoated Carbide Turning Inserts, USA
TP
Insert Size
Material
Inscribed Circle (Decimal Inch)
Inscribed Circle (Inch)
Thickness (Inch)
Thickness (Decimal Inch)
Manufacturer's Grade
Corner Radius (Inch)
Corner Radius (Decimal Inch)
0.0156
Coating
Material Grade
Length (mm)
Length (Decimal Inch)
Hole Diameter (mm)
Hole Diameter (Decimal Inch)
Rake
Relief Angle (Degree)
Primary Workpiece Material
Included Angle (Degree)
Insert Hand
Series
Maximum Depth of Cut (mm)
Maximum Depth of Cut (Decimal Inch)
Insert Holding Method
Shape
Insert Style
TP
Insert Size
41
Material
Carbide
Inscribed Circle (Decimal Inch)
0.2500
Inscribed Circle (Inch)
1/4
Thickness (Inch)
3/32
Thickness (Decimal Inch)
0.0938
Manufacturer's Grade
K68
Corner Radius (Inch)
1/64
Corner Radius (Decimal Inch)
0.0156
Coating
Uncoated
Material Grade
C3
Length (mm)
11.00
Length (Decimal Inch)
0.4331
Hole Diameter (mm)
2.80
Hole Diameter (Decimal Inch)
0.1102
Rake
Positive
Relief Angle (Degree)
11
Primary Workpiece Material
M; K; N; S
Included Angle (Degree)
60
Insert Hand
Neutral
Series
Screw-On
Maximum Depth of Cut (mm)
1.25
Maximum Depth of Cut (Decimal Inch)
0.0492
Insert Holding Method
Screw
Shape
Triangle
MSRP $100

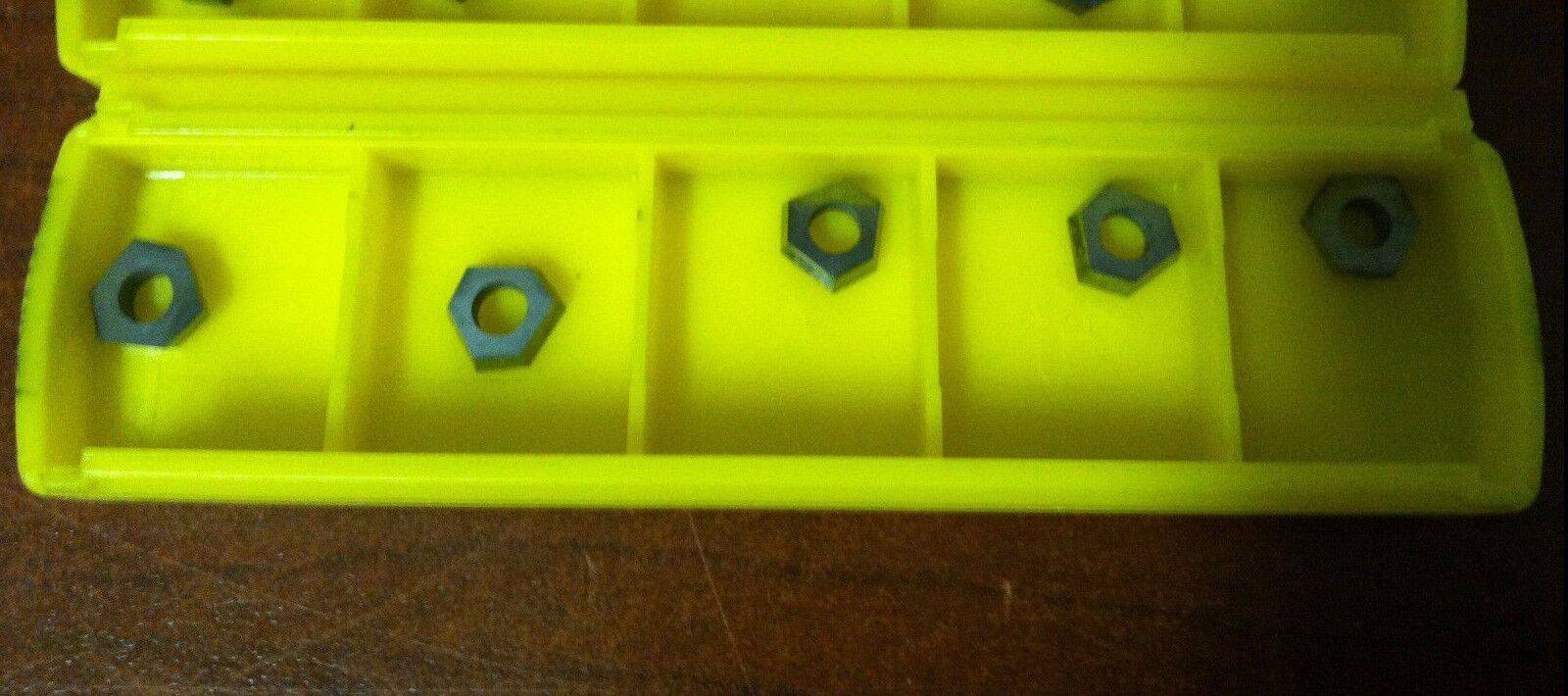

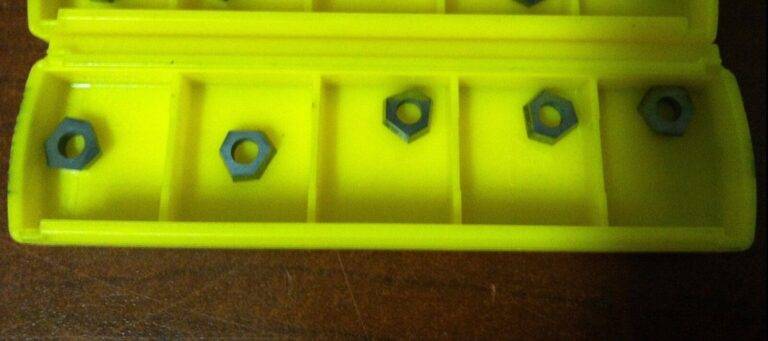

You are buying one lot of 10 inserts.
