Description
Kennemetal
MSRP: $175
Model: 5551057
Description:
Tap Type Standard Hand Tap
Thread Size (Inch) 5/16-18
Class of Fit 3BX
Number of Flutes 4
Chamfer Bottoming
Material Solid Carbide
Finish/Coating AlCrTiN
Thread Direction Right Hand
Through Coolant Through Coolant
Thread Standard UNC
Overall Length (Decimal Inch) 3.15000
Overall Length (Inch) 3.1500
Overall Length (mm) 80.00
Oversize No
Material Grade KCK17
Series/List T351
Thread Length (Decimal Inch) 0.6700
Thread Length (Inch) 0.6700
Thread Length (mm) 17.00
Neck Length (Inch) 0.5900
Tapping Depth (mm) 32
Shank Diameter (Decimal Inch) 0.3125
Shank Diameter (mm) 7.94
Shank Length (Decimal Inch) 1.69
Shank Length (mm) 43

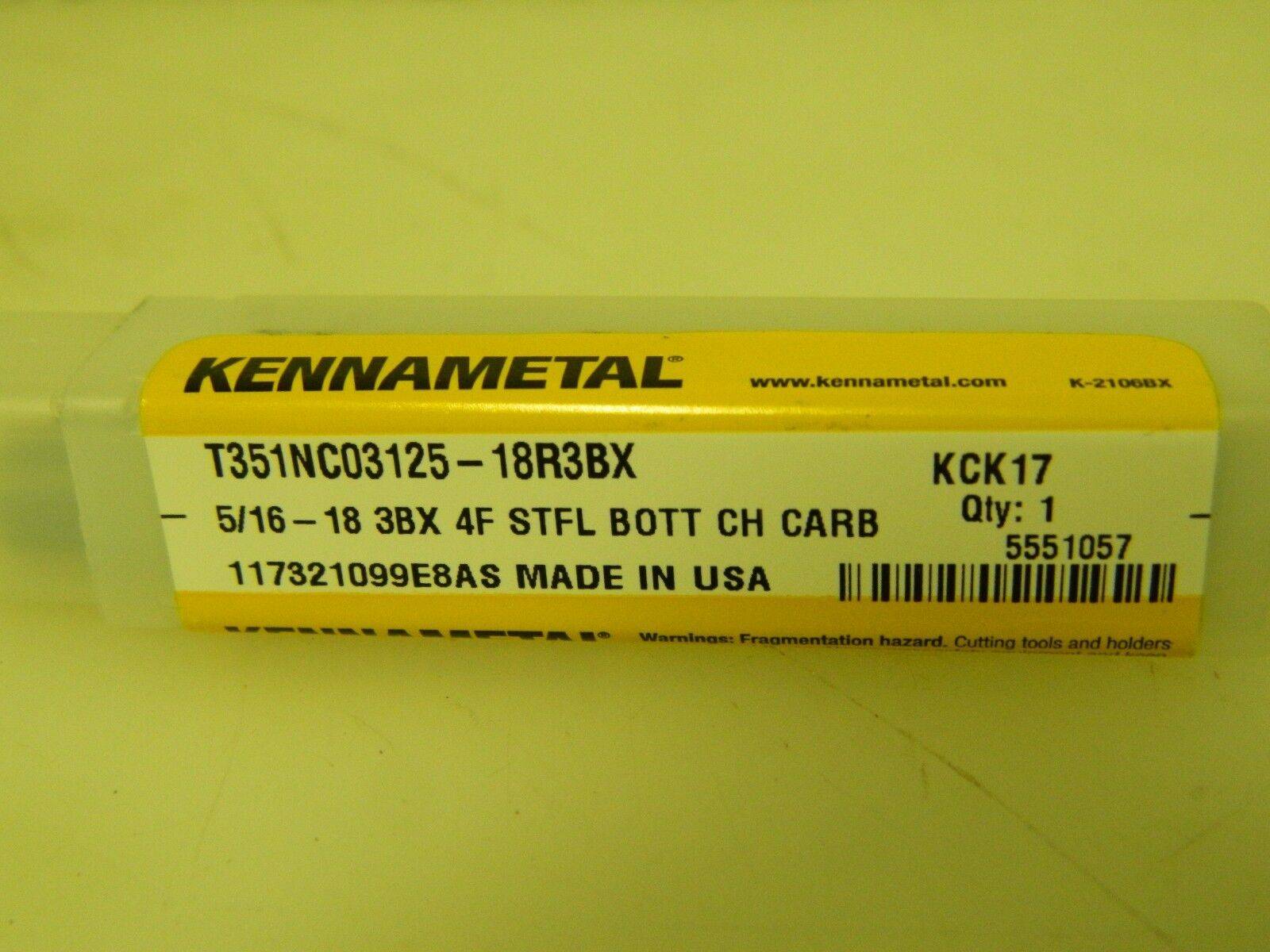

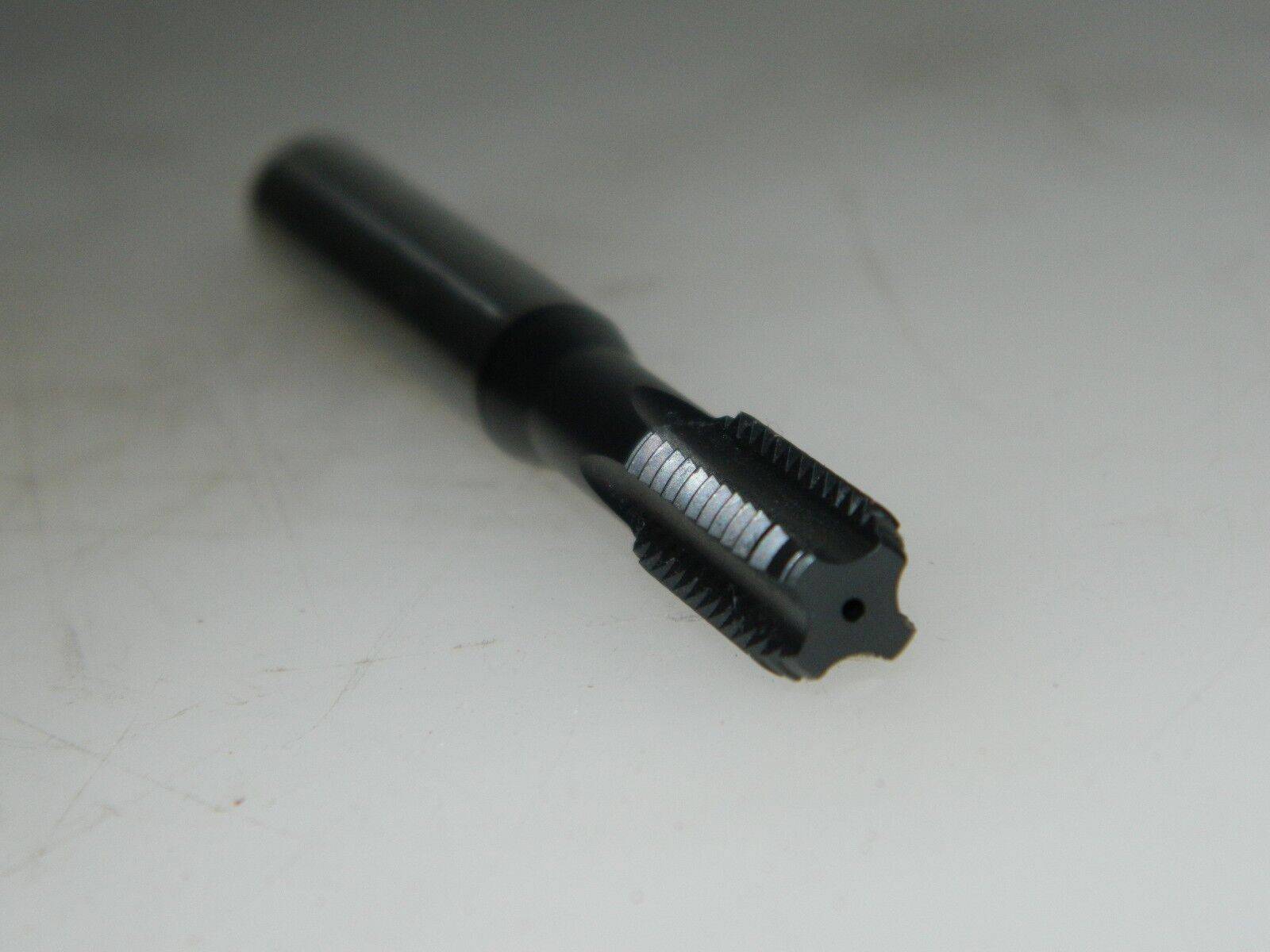

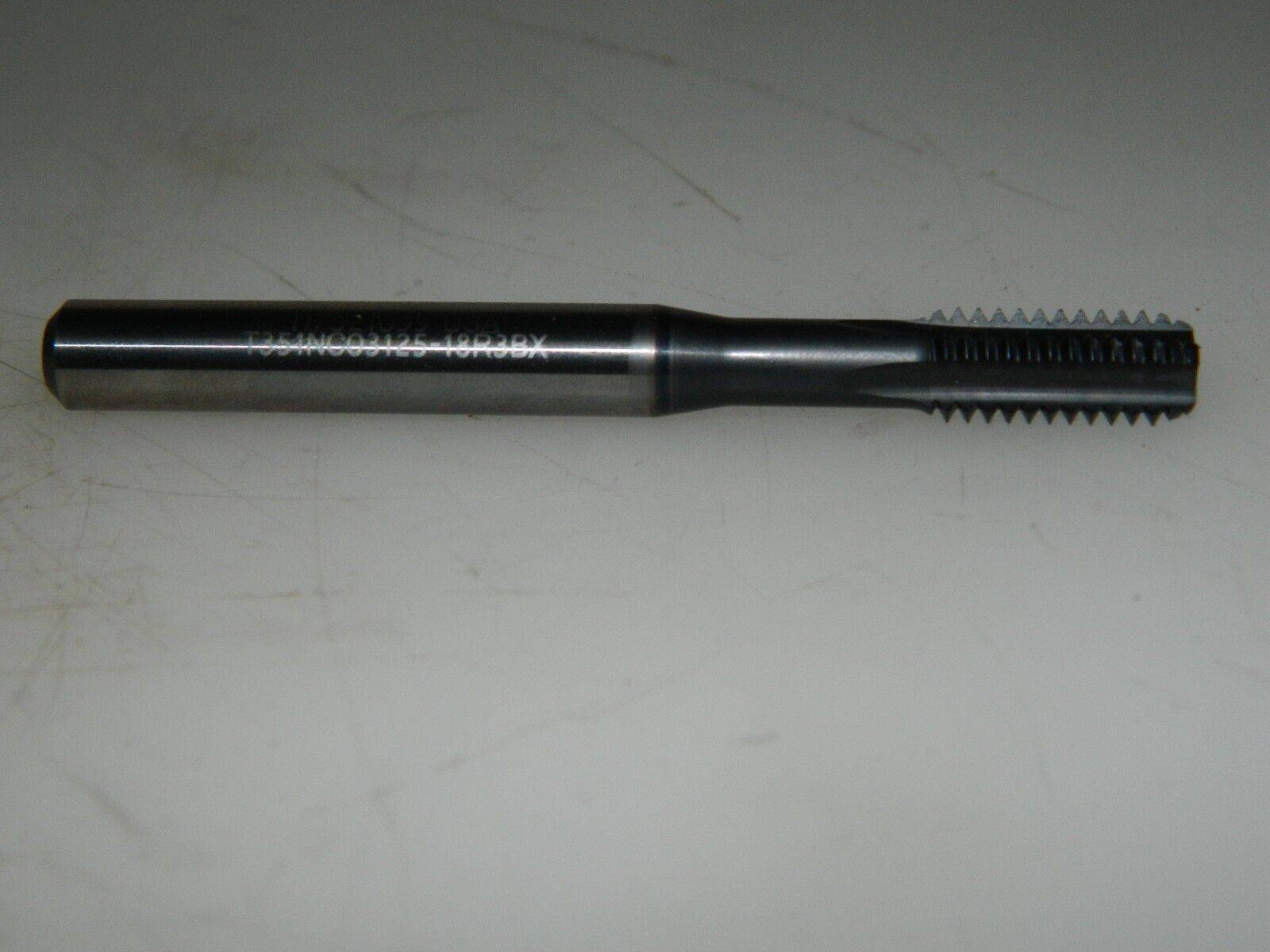

This listing is for One standard hand tap that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
