Description
BRAND Kennametal
Item
MSRP: $400.00
| Mill Diameter (Decimal Inch) |
0.7500 |
| Mill Diameter (Inch) |
3/4 |
| Number Of Flutes |
6 |
| End Mill Material |
Solid Carbide |
| Length of Cut (Decimal Inch) |
1.6250 |
| Length of Cut (Inch) |
1-5/8 |
| Shank Diameter (Inch) |
3/4 |
| Shank Diameter (Decimal Inch) |
0.7500 |
| Overall Length (Decimal Inch) |
4.0000 |
| Overall Length (Inch) |
4 |
| Single Or Double End |
Single |
| Coating/Finish Family |
AlTiN |
| Centercutting |
Yes |
| Cutting Direction |
Right Hand |
| Flute Direction |
Right Hand |
| Extended Reach |
No |
| Coolant Through |
No |
| Helix Angle |
38 |
| Primary Workpiece Material |
High-Temp Alloy; Stainless Steel; Steel; Hardened Materials |
| Primary Workpiece Material Code |
P; S; H; M |
| Coating/Finish |
AlTiN |
| Variable Helix |
No |
| Variable Index |
Yes |
| Chipbreaker |
No |
| Flute Type |
Spiral |
| Material Grade |
KCSM15 |
| Length Type |
Stub |
| Length Of Cut Range (Decimal Inch) |
1.5000 – 2.0000 |
| Mill Diameter Tolerance |
+0.0000/-0.0020 in |
| Shank Diameter Tolerance |
+0.000/+0.00051 in |
| Series |
HARVI III |
| System Of Measurement |
Fractional Inch |
| UNSPSC Code |
27112803 |
| Country of Origin |
UNITED STATES |
| Ordered as Part # |
5351903 |
(Description).

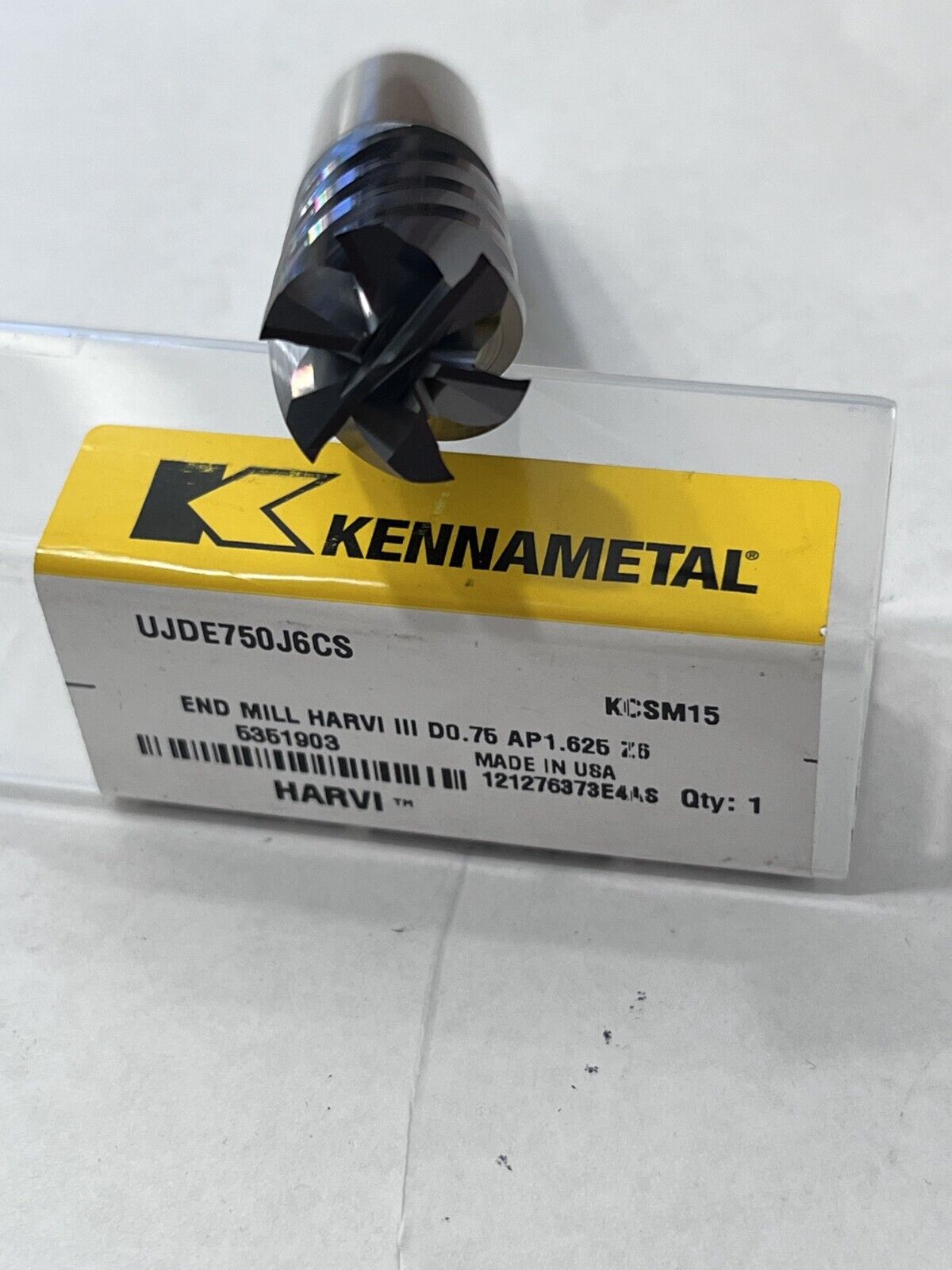

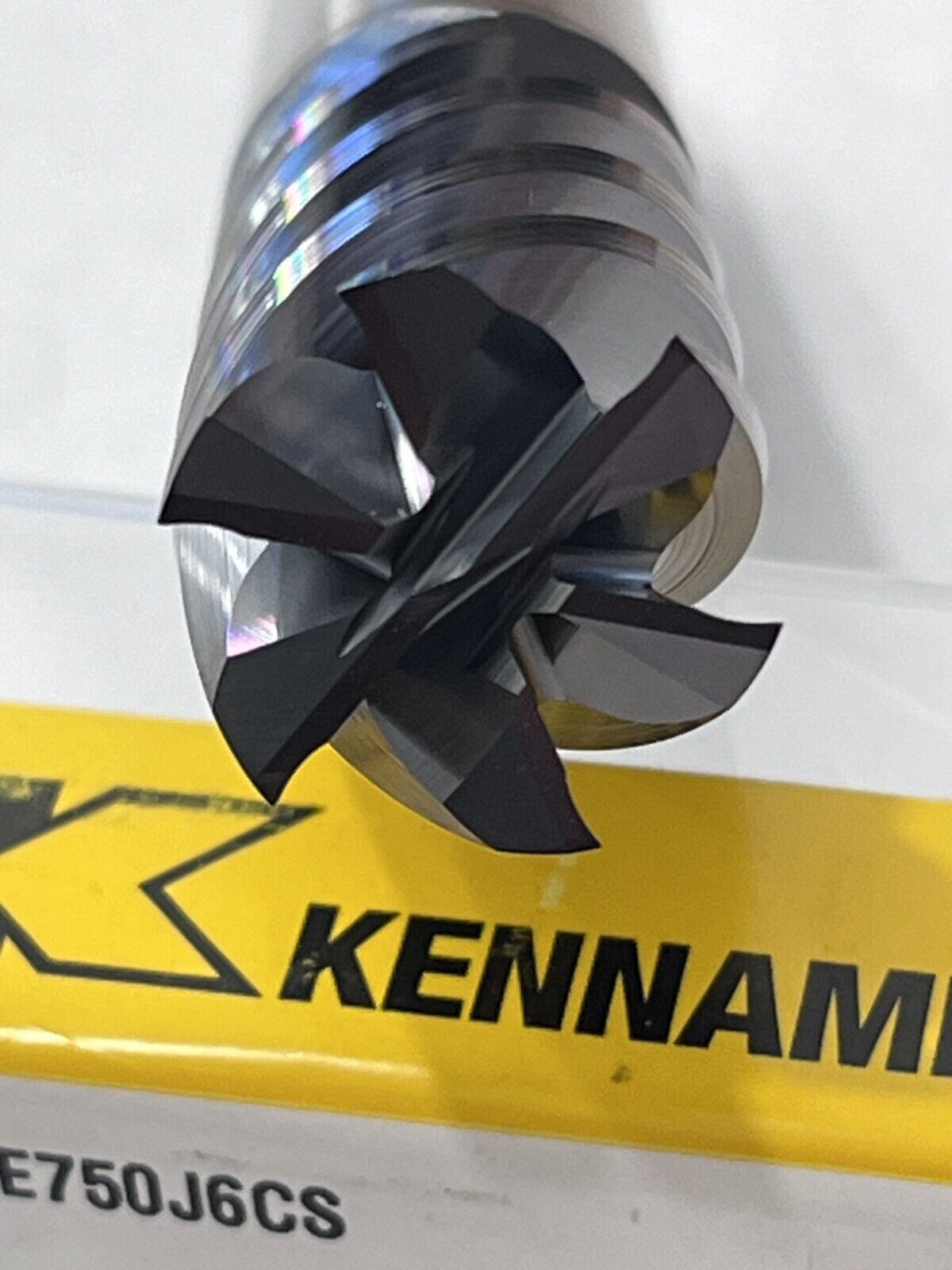

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
BRAND: Kennametal
END TYPE: Square
NUMBER OF FLUTES: 6
END MILL TYPE: Square End Mill
MATERIAL: Solid Carbide
