Description
KENNAMETAL Screw Machine Length Drill Bit 21/32″ Dia 140 deg Point 4150367
MSRP: $200
- Drill Bit Size (Inch) 21/32
- Drill Bit Size (Decimal Inch) 0.6562
- Tool Material Solid Carbide
- Cutting Direction Right Hand
- Coating/Finish Multilayer TiAlN
- Number Of Flutes 2
- Spiral Type Regular
- Flute Type Spiral
- Drill Point Angle 140
- Coolant Through No
- Shank Type Straight-Cylindrical
- Shank Diameter (Decimal Inch) 0.7087
- Overall Length (mm) 123
- Overall Length (Decimal Inch) 4.8425
- Shank Diameter (mm) 18.00
- Point Type Standard
- Series B041A-CPG
- Web Configuration Tapered
- Drill Length Type Stub
- Maximum Drilling Depth (Decimal Inch) 2.0079
- Maximum Drilling Depth (mm) 51.00
- Shank Length (Decimal Inch) 1.8898
- Shank Length (mm) 48.00
- Drill Point Length (mm) 2.89
- Drill Point Length (Decimal Inch) 0.1137
- Flute By Diameter Ratio 3xD
- Drill Bit Diameter Tolerance -0.018 to 0.000 mm; -0.0007 to 0.0000 in
- Flute Length (Decimal Inch) 2.8740
- Flute Length (mm) 73.00
- Drill Bit Size Range (Decimal Inch) 0.6000+
- Specification Number DIN 6537K
- Specification Designation DIN
- UNSPSC Code 23241635
(Description).

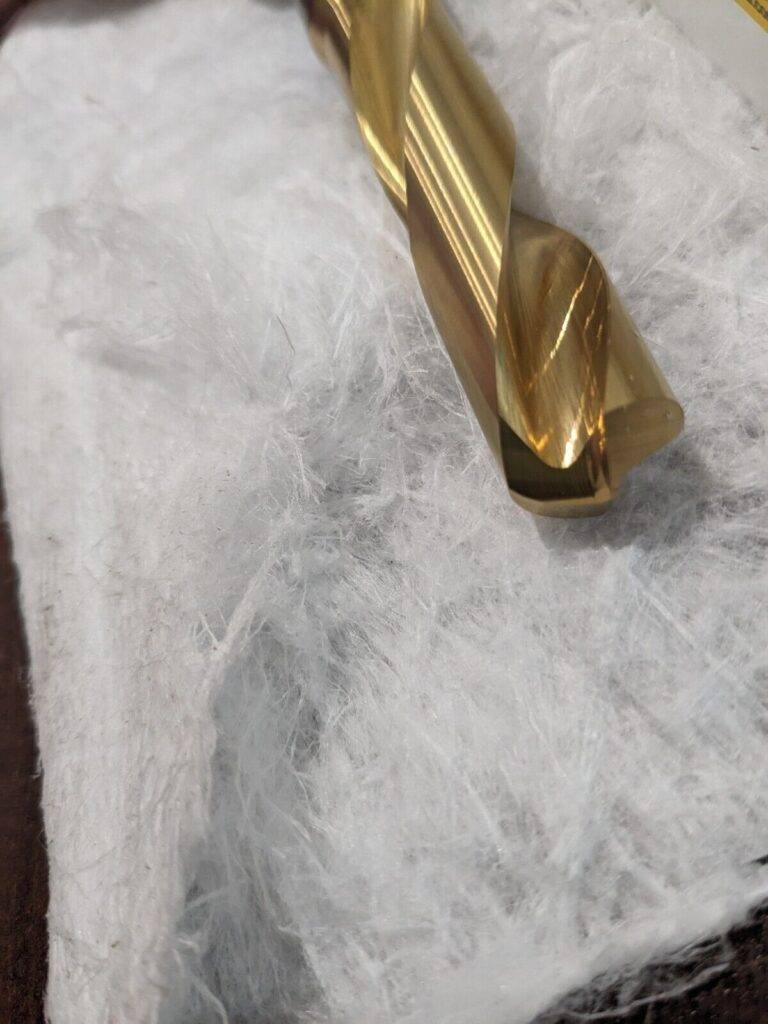

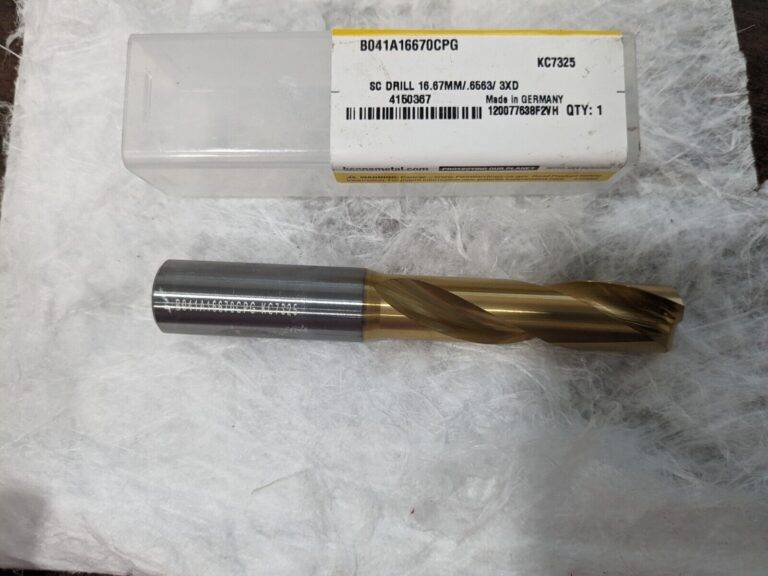

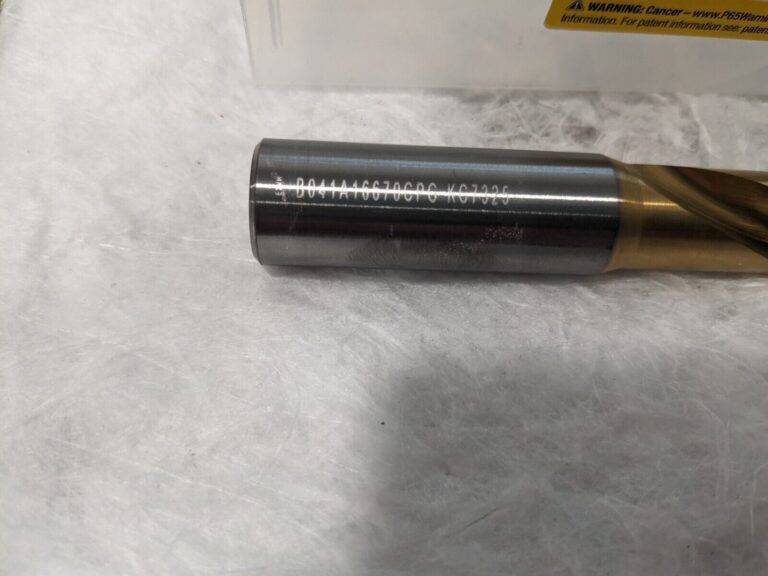

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
apr 10 24
HS5041
kasi C5
BRAND: Kennametal
MPN: 4150367
