Description
KENNAMETAL

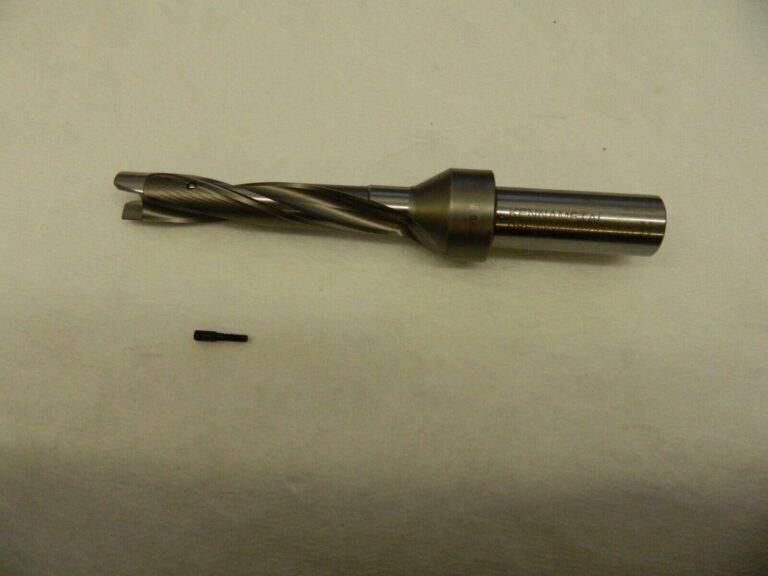

Replaceable Tip Drill 15.88-16.38 mm Weldon Flat Shank 1505138
MSRP: $370
- Minimum Drill Diameter (Decimal Inch) 0.6252
- Minimum Drill Diameter (mm) 15.88
- Maximum Drill Diameter (mm) 16.38
- Maximum Drill Diameter (Decimal Inch) 0.6449
- Drill Depth by Diameter Ratio 5xD
- Maximum Drill Depth (mm) 80.00
- Maximum Drill Depth (Decimal Inch) 3.1500
- Shank Type Weldon Flat
- Insert Style KSEM0625
- Insert Seat Size 1
- Shank Diameter (mm) 19.05
- Maximum Drill Depth Range (Decimal Inch) 2.5000 to 3.5000
- Maximum Drill Depth Range (mm) 80.00 to 100.00
- Compatible Insert Style KSEM0625
- Overall Length (mm) 171.45
- Overall Length (Decimal Inch) 6.7500
- Series KSEM
- Flute Length (mm) 99.19
- Flute Length (Decimal Inch) 3.9051
- Shank Length (Decimal Inch) 2.0000
- Coolant Hole Thread Type NPT
- Body Side Coolant Hole Thread Size (Inch) 1/8-27
- Shank End Coolant Hole Thread Size (Inch) 1/8-27
- Tip Length (Decimal Inch) 0.1000
- Coolant Through Yes
- Coating Classification Kennametal
Please review photos, comes as shown.
