Description
KENNAMETAL
Replaceable Tip Drill: 11.11 to 11.49 mm Weldon Flat Shank 5307706
MSRP: $250
- Minimum Drill Diameter (Decimal Inch) 0.4375
- Minimum Drill Diameter (mm) 11.11
- Maximum Drill Diameter (mm) 11.49
- Maximum Drill Diameter (Decimal Inch) 0.4524
- Drill Depth by Diameter Ratio 5xD
- Maximum Drill Depth (mm) 57.40
- Maximum Drill Depth (Decimal Inch) 2.2600
- Shank Type Weldon Flat
- Shank Diameter (Inch) 5/8
- Shank Diameter (Inch – 0 Decimals) 0.6250
- Shank Diameter (Decimal Inch) 0.6250
- Insert Seat Size L
- Shank Diameter (mm) 15.88
- Tool Material Steel
- Maximum Drill Depth Range (Decimal Inch) 1.5000 to 2.5000
- Maximum Drill Depth Range (mm) 40.00 to 60.00
- Overall Length (mm) 127.25
- Overall Length (Decimal Inch) 5.0100
- Series KenTIP
- Toolholder Style KTIP
- Flute Length (Decimal Inch) 2.9100
- Shank Length (Decimal Inch) 1.8900
- Tip Length (Decimal Inch) 0.0760
- Coolant Through Yes

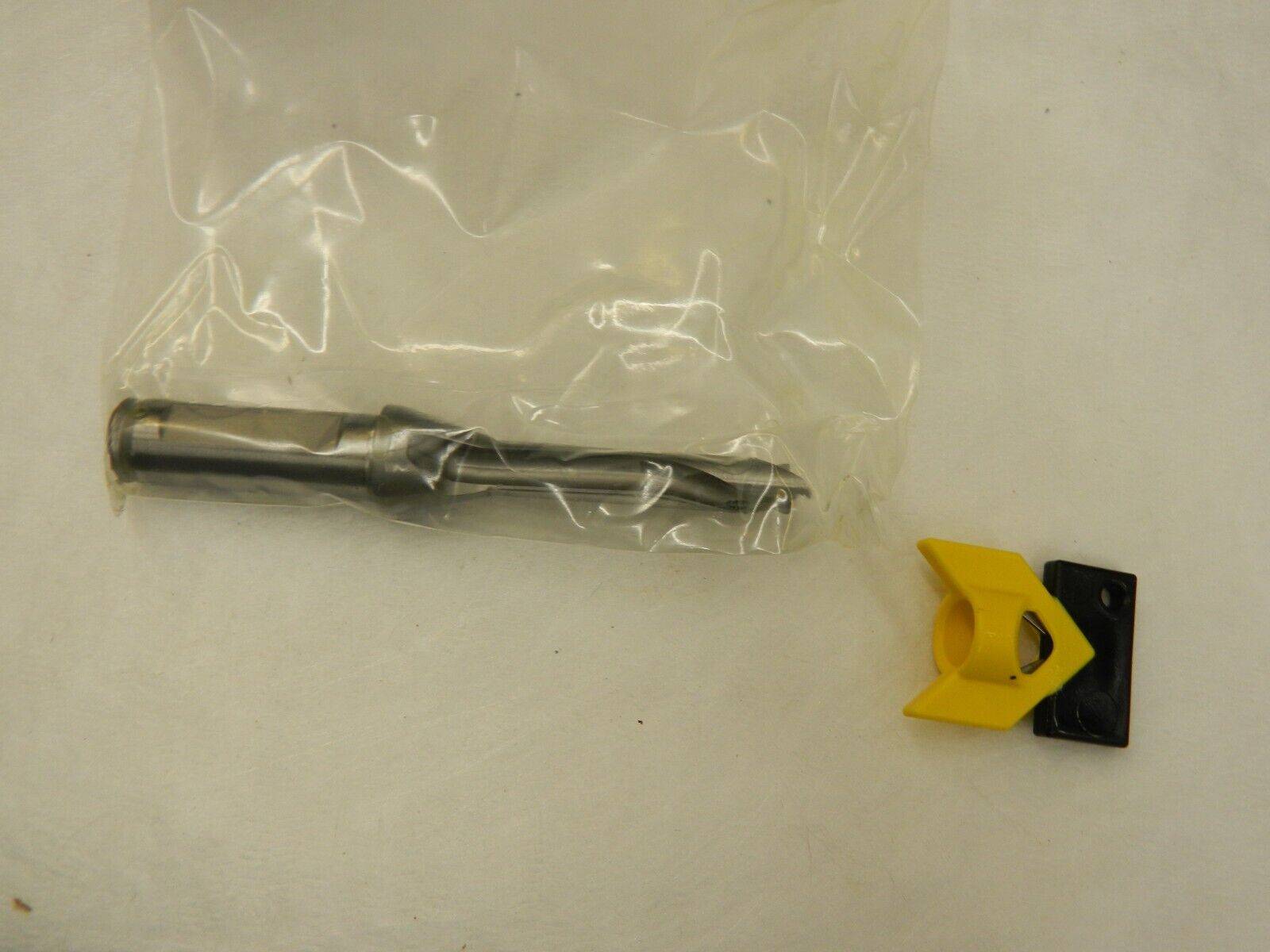

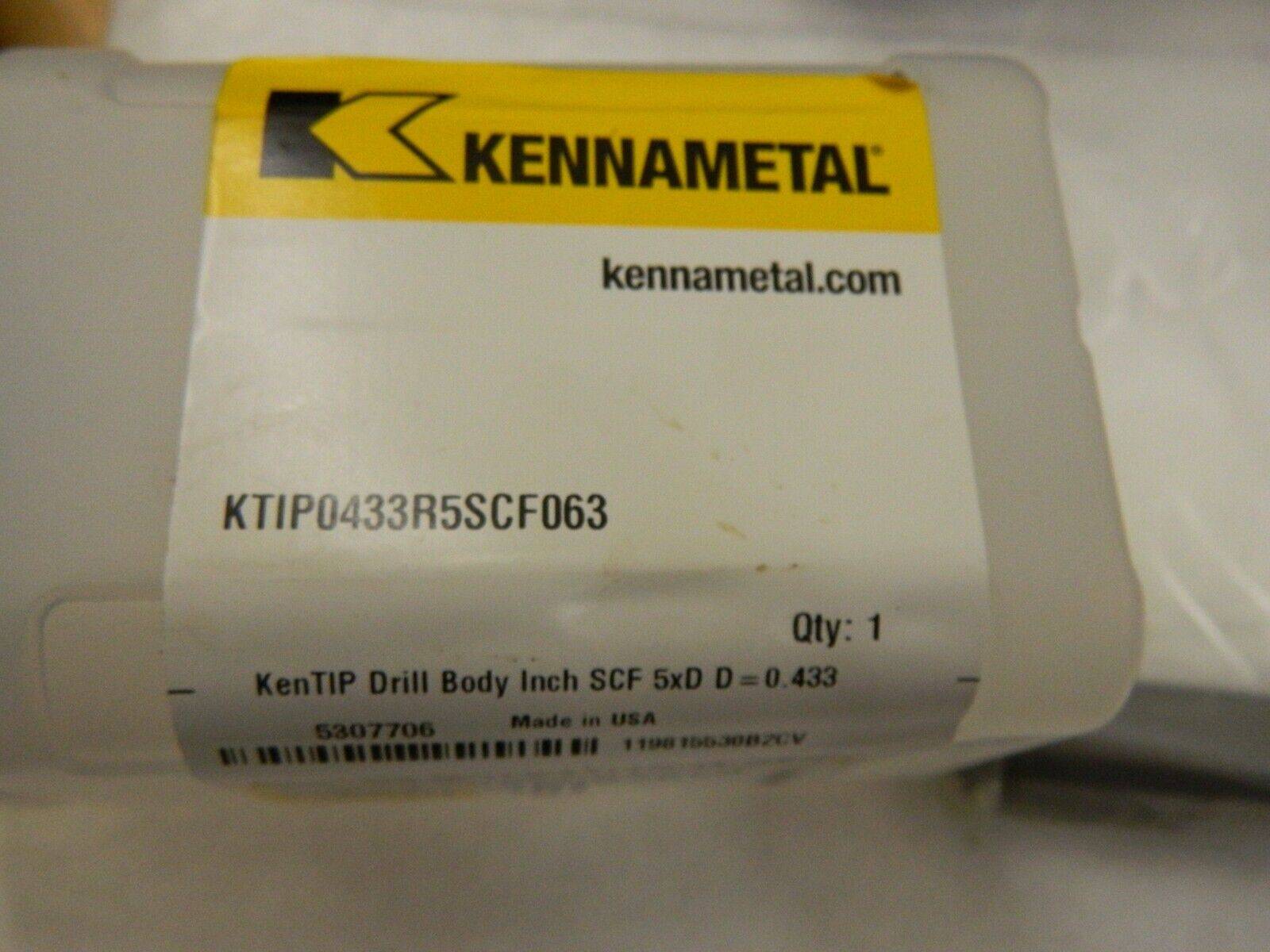

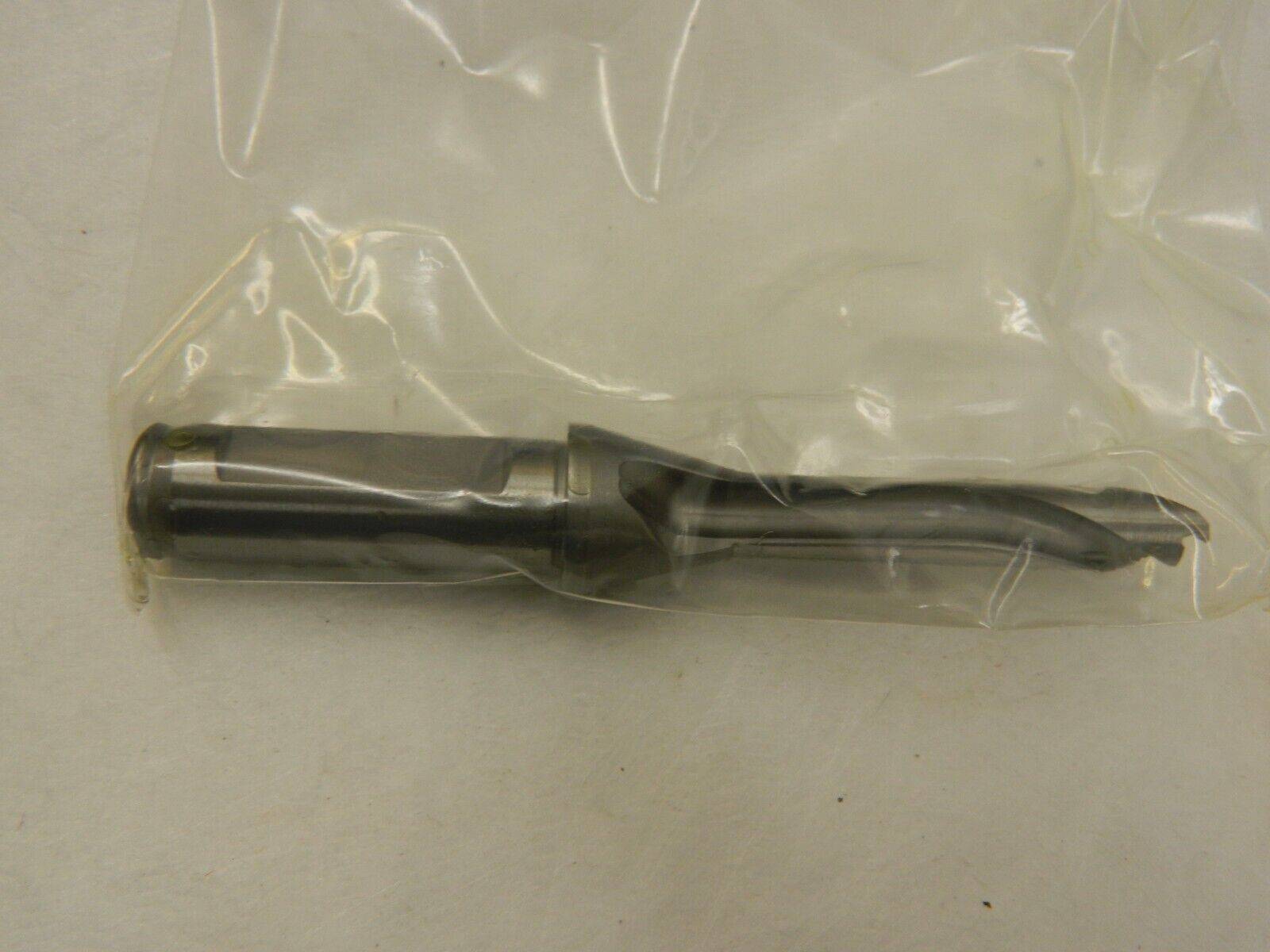

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Jan 26 23
HS939
I bin9
BRAND: Kennametal
MSRP: $250
MPN: 5307706
