Description
KENNAMETAL Indexable Profiling Toolholder: Internal, 5 ° Lead Angle 1152698
MSRP: $700
- Internal or External Internal
- Hand of Holder Right Hand
- Compatible Insert Size Code NPL
- Toolholder Style E-NEL
- Rake Neutral
- Insert Holding Method Clamp
- Toolholder Material Carbide
- Shank Width/Diameter (Decimal Inch) 0.5000
- Overall Length (mm) 207.01
- Shank Width/Diameter (mm) 12.70
- Overall Length (Decimal Inch) 8.1500
- Shank Width/Diameter (Inch) 1/2
- Series Top Notch Profiling Boring Bar
- Rake Angle 0
- Lead Angle 5
- Center to Cutting Edge (Decimal Inch) 0.3750
- Minimum Hole Diameter (mm) 19.05
- Minimum Hole Diameter (Decimal Inch) 0.7500
- UNSPSC Code 23153308
- Complete Insert Compatibility NPL 51
- Coolant Through Yes

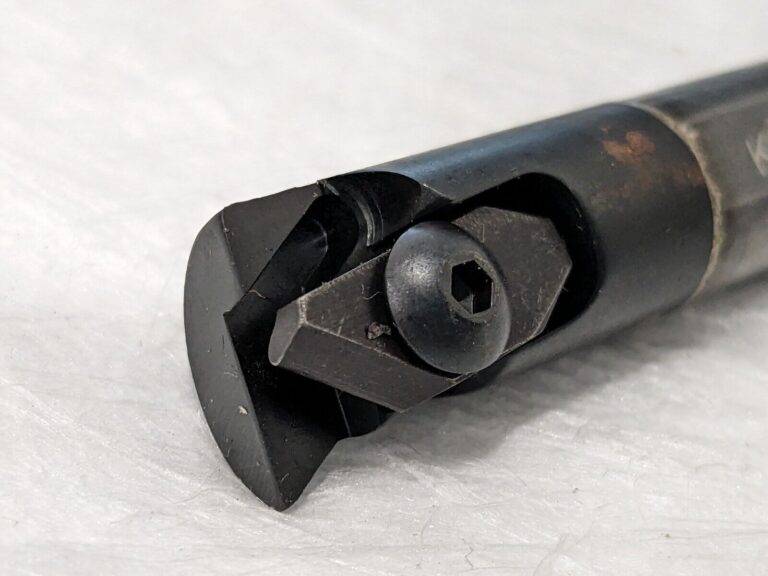

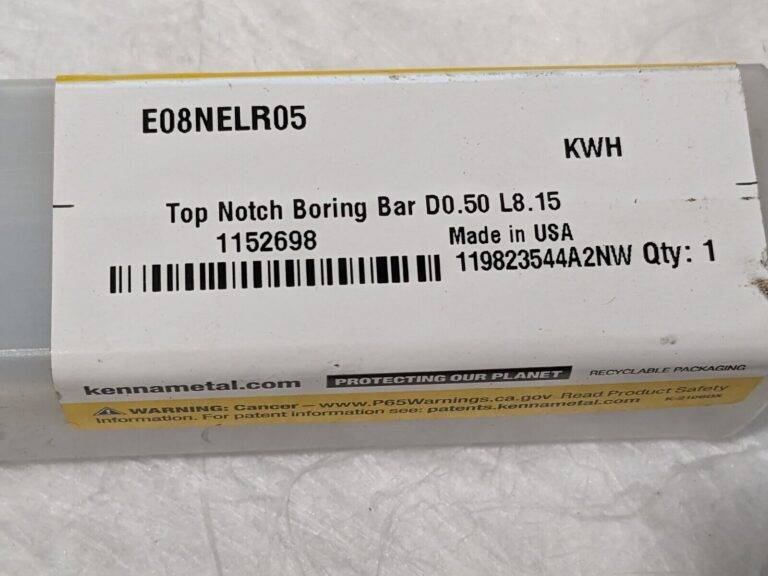

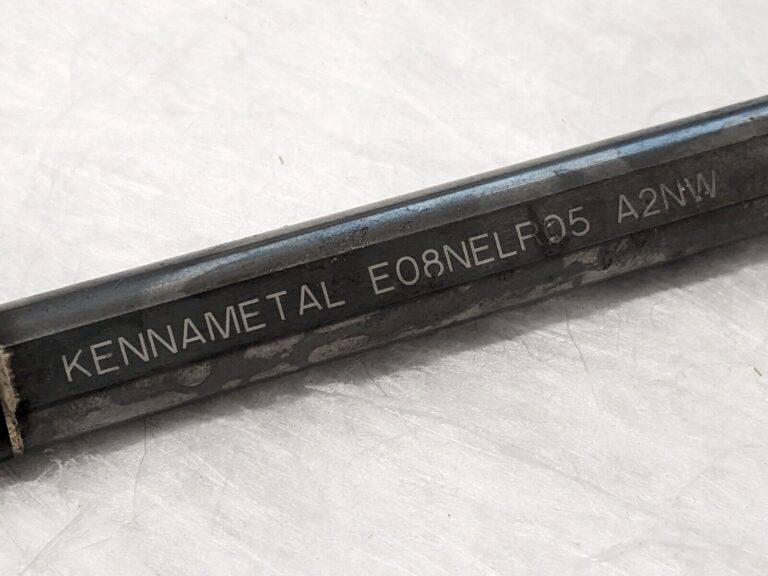

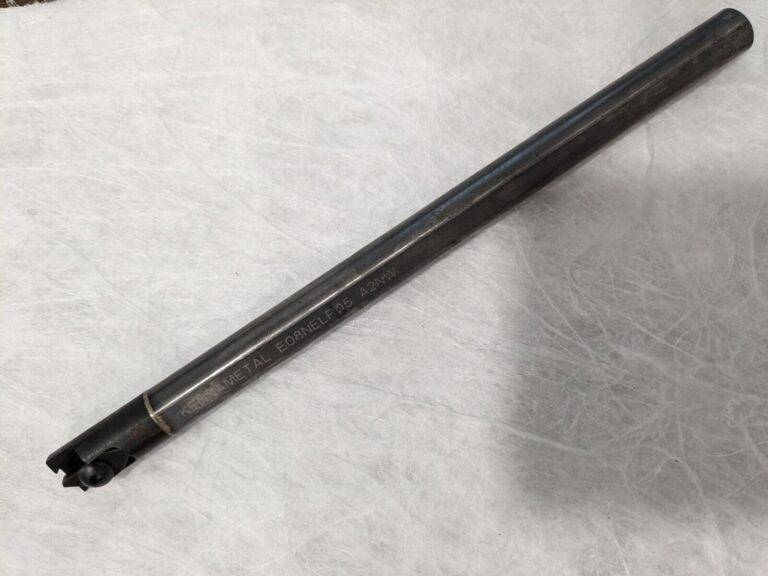

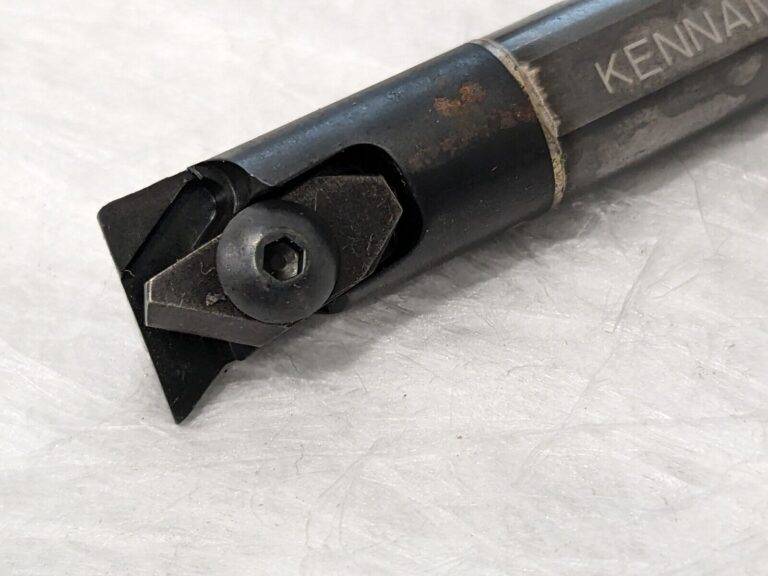

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
apr 24 24
HS5170
xb6
BRAND: Kennametal
UNIT TYPE: Unit
MPN: 1152698
COUNTRY/REGION OF MANUFACTURE: United States
UNIT QUANTITY: n/a
TOOLHOLDER TYPE: Indexable Profiling Toolholder
CALIFORNIA PROP 65 WARNING: n/a
