Description
BRAND Kennametal
Item
MSRP: $700.00
| Compatible Drill Style |
DFPR |
| Maximum Drill Diameter (Decimal Inch) |
1.0390 |
| Maximum Drill Depth (Inch) |
5 |
| Maximum Drill Depth (Decimal Inch) |
5.0000 |
| Shank Type |
Flange; Weldon Flat |
| Shank Diameter (Inch) |
1 |
| Shank Diameter (Decimal Inch) |
1.0000 |
| Number of Drill Inserts |
2 |
| Cutting Direction |
Right Hand |
| Maximum Drill Depth Range (Decimal Inch) |
5.0000 to 7.0000 |
| Tool Material |
Steel |
| Compatible Insert Style |
DFPR |
| Compatible Insert Size Code |
090305; 100305 |
| Drill Depth by Diameter Ratio |
5xD |
| Coolant Entry Style Code |
1-Axial Concentric Entry |
| Overall Length (Decimal Inch) |
7.8730 |
| Series |
DFPR |
| Flute Length (Decimal Inch) |
5.0000 |
| Body Length (mm) |
144.00 |
| Body Length (Decimal Inch) |
5.6690 |
| Shank Length (Decimal Inch) |
2.2040 |
| Shank Length (mm) |
56.00 |
| Coolant Hole Thread Size |
“1/4-18 NPT” |
| Tool Application |
Drilling |
| Tool Performance |
General Purpose |
| Insert Size (Decimal Inch) |
0.3700×0.1180; 0.3900×0.1180 |
| UNSPSC Code |
23291503 |
| Insert Compatibility |
DFPR090305__O; DFPR100305__I |
| Shank End Coolant Hole Thread Size (Inch) |
1/4-18 |
| Insert Lock Screw |
M3-0.5x8T9 |
| Coolant Through |
Yes |
| Country of Origin |
Germany |
| Ordered as Part # |
7034234 |
(Description).

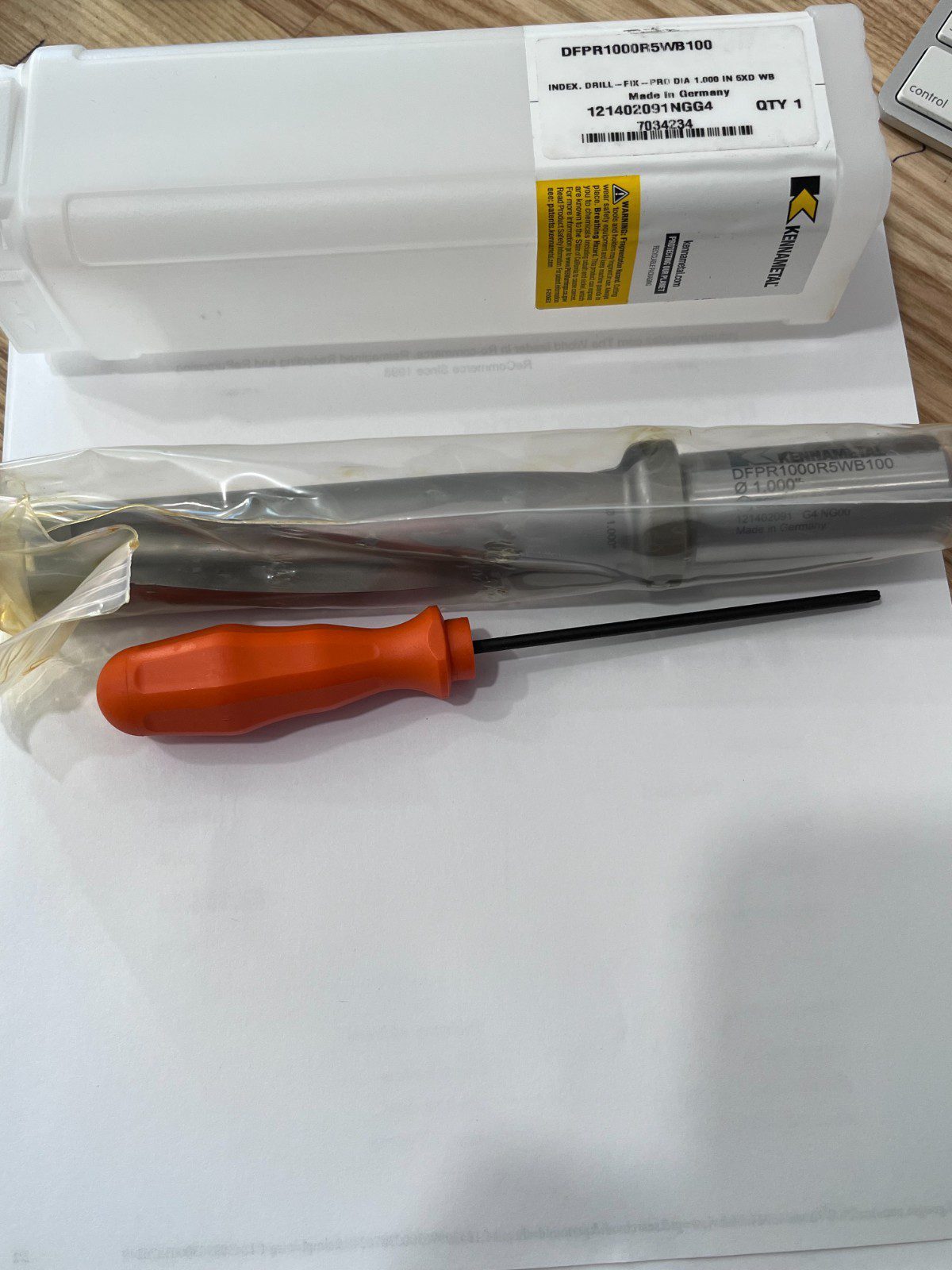

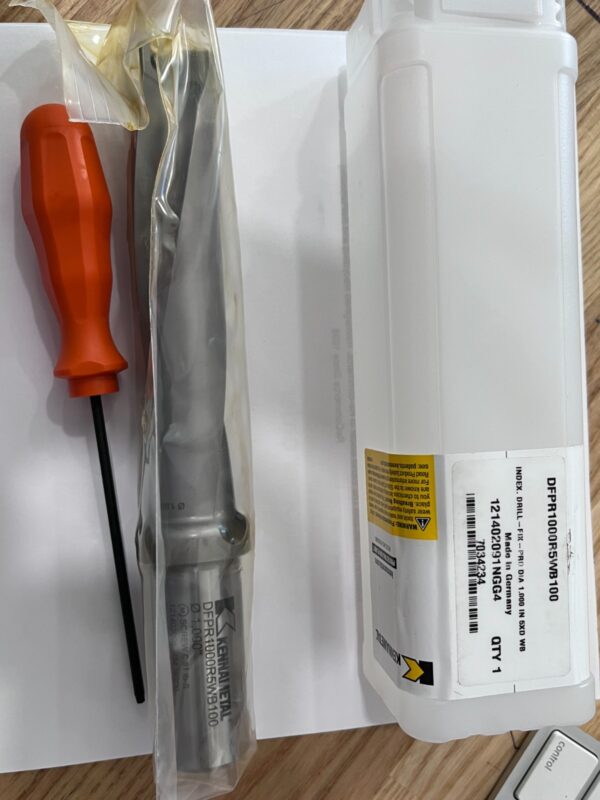

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
BRAND: Kennametal
INSERT MATERIAL: steel
INSERT TYPE: Drill Insert
COUNTRY/REGION OF MANUFACTURE: Germany
