Description
BRAND Kennametal
Item
MSRP: $217.00
| Hand of Holder |
Left |
| Maximum Depth of Cut (Decimal Inch) |
0.5320 |
| Maximum Workpiece Diameter (Decimal Inch) |
1.0630 |
| Toolholder Style |
A4SC |
| Compatible Insert Size Code |
A4..15.. |
| Overall Length (Decimal Inch) |
4.4882 |
| Overall Length (mm) |
114.00 |
| Insert Holding Method |
Screw |
| Shank Width/Diameter (Decimal Inch) |
0.5118 |
| Shank Width/Diameter (mm) |
13.00 |
| Shank Height (Decimal Inch) |
0.5118 |
| Shank Height (mm) |
13.00 |
| Shank Length (mm) |
102.00 |
| Shank Length (Decimal Inch) |
4.0157 |
| Series |
A4 |
| Head Height (mm) |
21.00 |
| Head Height (Decimal Inch) |
0.8268 |
| Head Length (Decimal Inch) |
0.9843 |
| Head Length (mm) |
25.00 |
| Back of Bar to Cutting Edge (Decimal Inch) |
0.4720 |
| Back of Bar to Cutting Edge (mm) |
11.99 |
| Insert Seat Size |
1 |
| Minimum Insert Width (Decimal Inch) |
0.0591 |
| Minimum Insert Width (mm) |
1.50 |
| Maximum Insert Width (Decimal Inch) |
0.0591 |
| Maximum Insert Width (mm) |
1.50 |
| UNSPSC Code |
23153308 |
| Coating Classification |
Kennametal |
| Coolant Through |
No |
(Description).

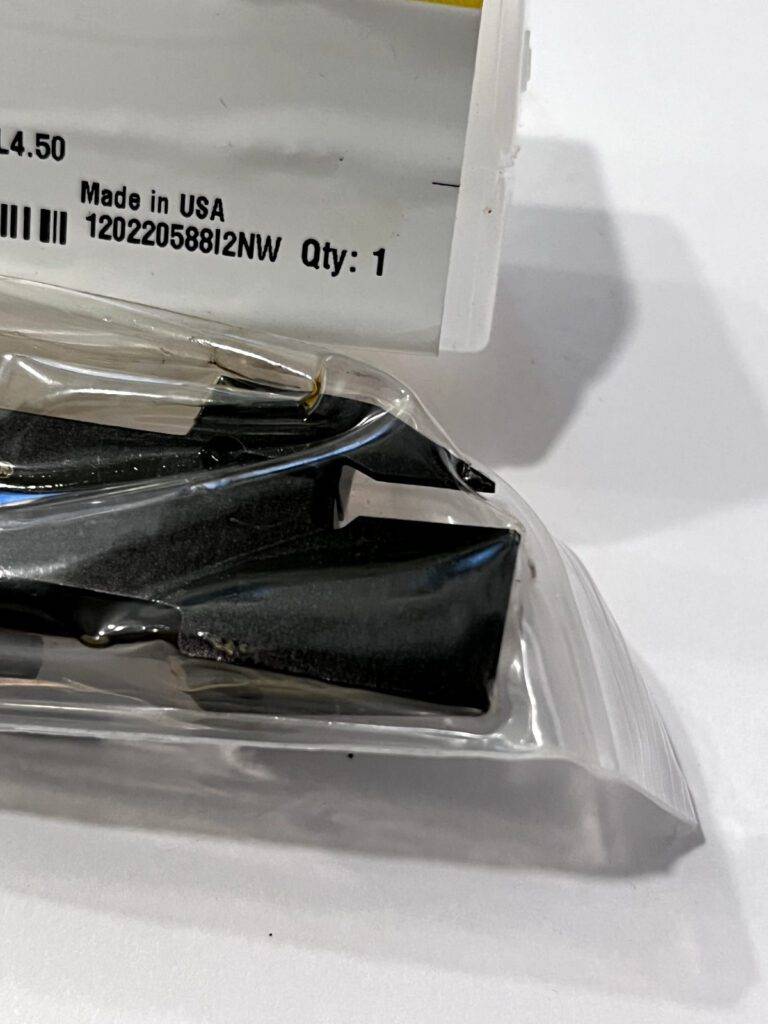

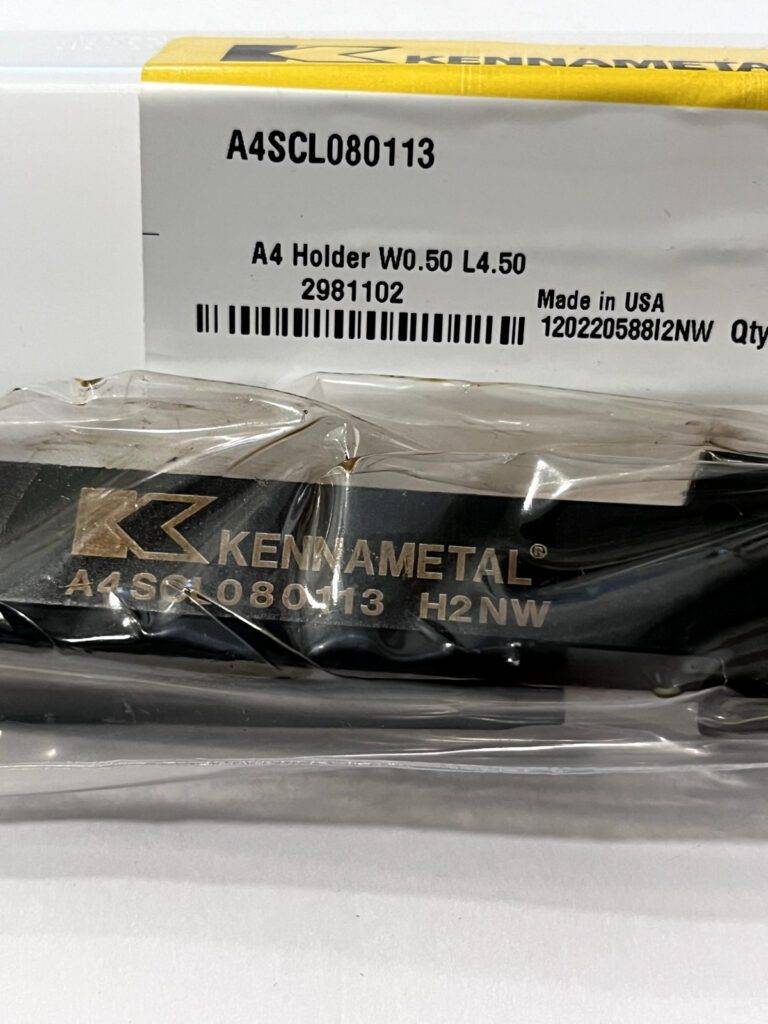

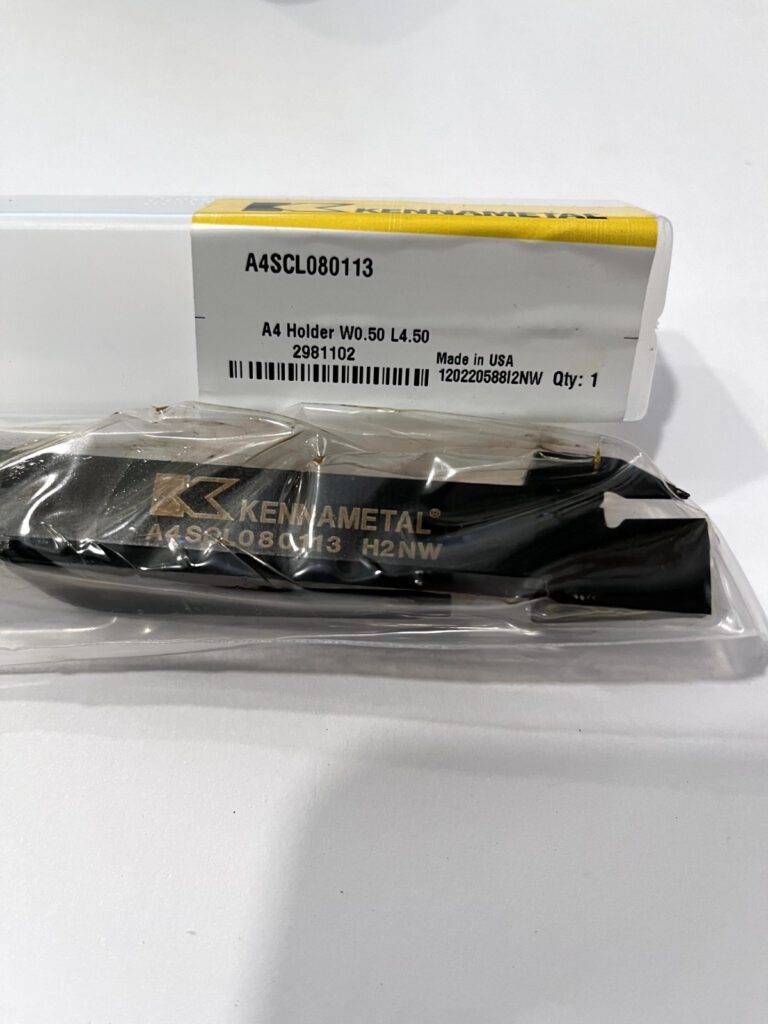

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date Oct2424
Lister#CM 14275
LocTropic 6
BRAND: Kennametal
MPN: does not apply
