KENNAMETAL
Grooving Insert: ER-U4GUP KCU10, Solid Carbide qty 5 6012974
MSRP: $50
- Insert Style ER-U
- Insert Size 4
- Insert Material Solid Carbide
- Manufacturer Grade KCU10
- Cutting Width (Decimal Inch) 0.1920
- Cutting Width (mm) 4.88
- Maximum Depth of Cut (Decimal Inch) 0.1180
- Maximum Depth of Cut (mm) 2.99
- Cutting Height (mm) 4.43
- Insert Hand Neutral
- Maximum Depth Of Cut Range (Decimal Inch) 0.1000 to 0.1500
- Cutting Height (Decimal Inch) 0.1740
- Corner Radius (mm) 2.44
- Corner Radius (Decimal Inch) 0.0960
- Maximum Depth Of Cut Range (mm) 2.00 to 3.00
- Lead Angle 3
- Rake Positive
- Multi-use Tool No
- Cutting Tool Application Grooving; Cut-Off
- Series Beyond Evolution
- Coating Process PVD
- Rake Angle 14.00
- Overall Length (Decimal Inch) 0.4010
- Overall Length (mm) 10.20
- Maximum Corner Radius (Decimal Inch) 0.0960
- Minimum Corner Radius (Decimal Inch) 0.0960
- Insert Thickness (Decimal Inch) 0.1740
- Chip Breaker GUP
- Insert Seat Size 4
- Full Radius Yes
- Overall Width 4.88
- Overall Width (Decimal Inch – 4 Decimals) 0.1920
- Coating/Finish AlTiN
- Single Or Double End Single

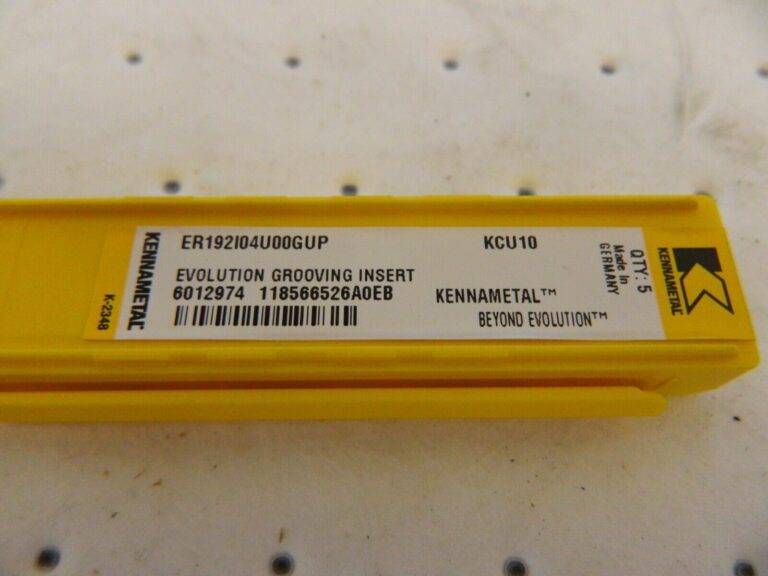

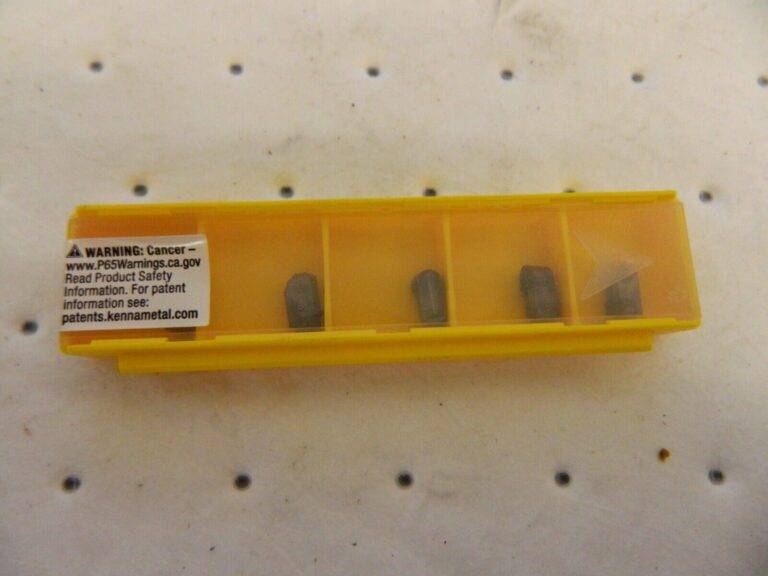

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
May 09 23
HS2098
Crab 29
BRAND: Kennametal
MSRP: $50
INSERT MATERIAL: Carbide
MPN: 6012974
INSERT TYPE: Grooving Insert
