Description
Kennametal
End Mill
MSRP: $50.00
- Corner Radius (Decimal Inch) 0.0591
- Variable Helix No
- Flute Direction Right Hand
- Corner Radius (mm) 1.50
- Pitch Normal
- Variable Index No
- Reach Length (Decimal Inch) 0.7087
- Neck Diameter (Decimal Inch) 0.2220
- Helix Style High
- End Type Corner Radius
- End Mill Material Solid Carbide
- Overall Length (mm) 63.00
- Coating Classification PVD
- Cutting Direction Right Hand
- Mill Diameter (Decimal Inch) 0.2362
- Extended Reach Yes
- Mill Diameter (mm) 6.00
- Neck Diameter (mm) 5.64
- Reach Length (mm) 18.00
- Material Application Hard Material; Cast Iron; Superalloys & Titanium; Steel
- Single Or Double End Single
- Shank Diameter (mm) 6.00
- Length of Cut (mm) 13.00
- For Use With. ER Single Angle Standard Collets
- Material Grade Submicron
- Primary Workpiece Material Code P; S; H; K
- Mill Diameter Tolerance -0.020000 to -0.038000 mm
- Length Type Standard
- Series UDDE
- Coolant Through No
- Centercutting No
- Material Removal Type Roughing & Finishing
- Flute Type Helical
- Shank Diameter Tolerance +0.000 to -0.008 mm
- Shank Type Straight-Cylindrical
- Number Of Flutes 5
- Length Of Cut (Decimal Inch – 4 Decimals) 1.2600
- Coating/Finish AlTiN
- UNSPSC Code 27112803
- Chipbreaker No
- Primary Workpiece Material Hard Material; Cast Iron; Superalloys & Titanium; Steel
This item appears to be new and in good condition. SOLD AS IS.

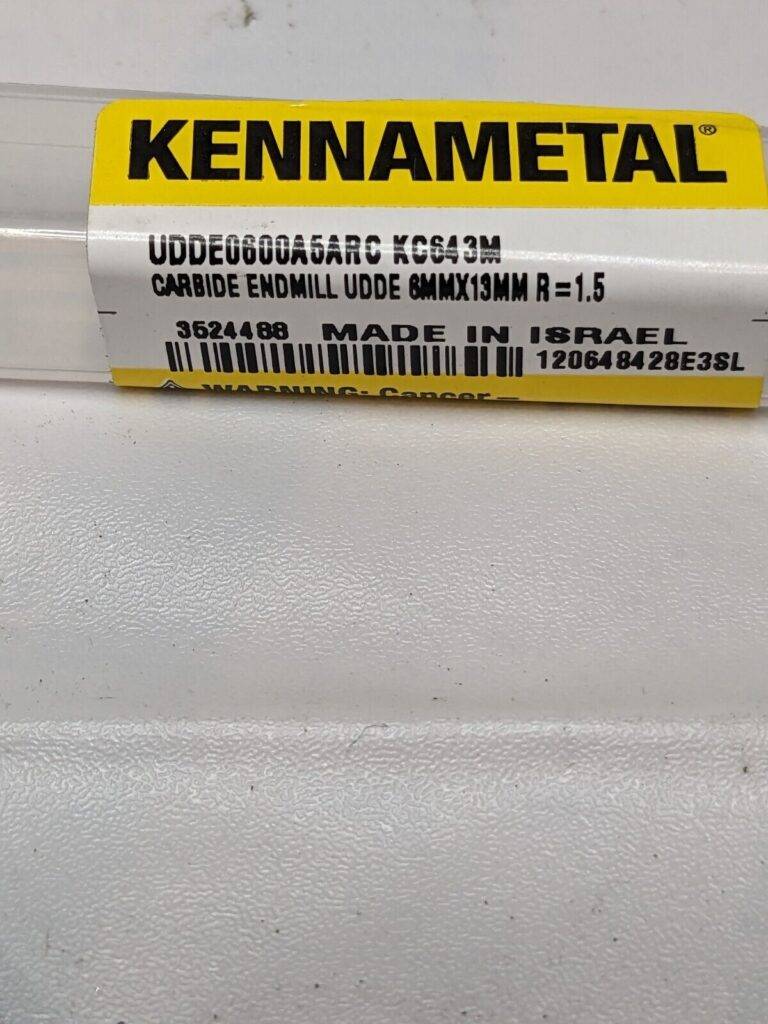

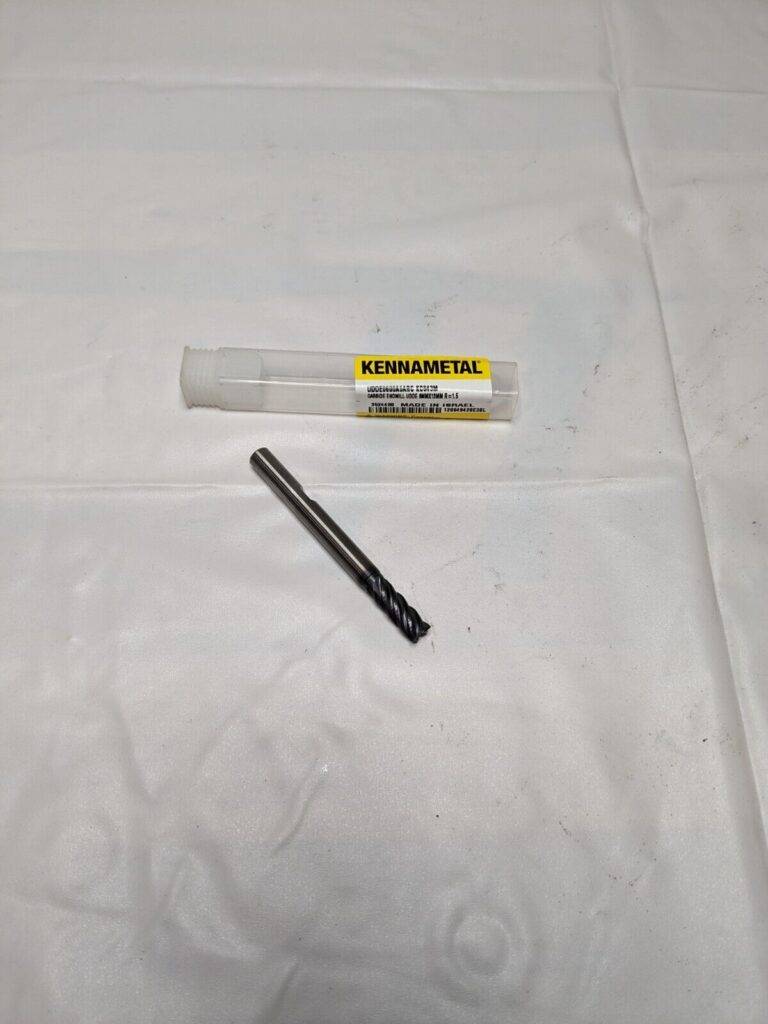

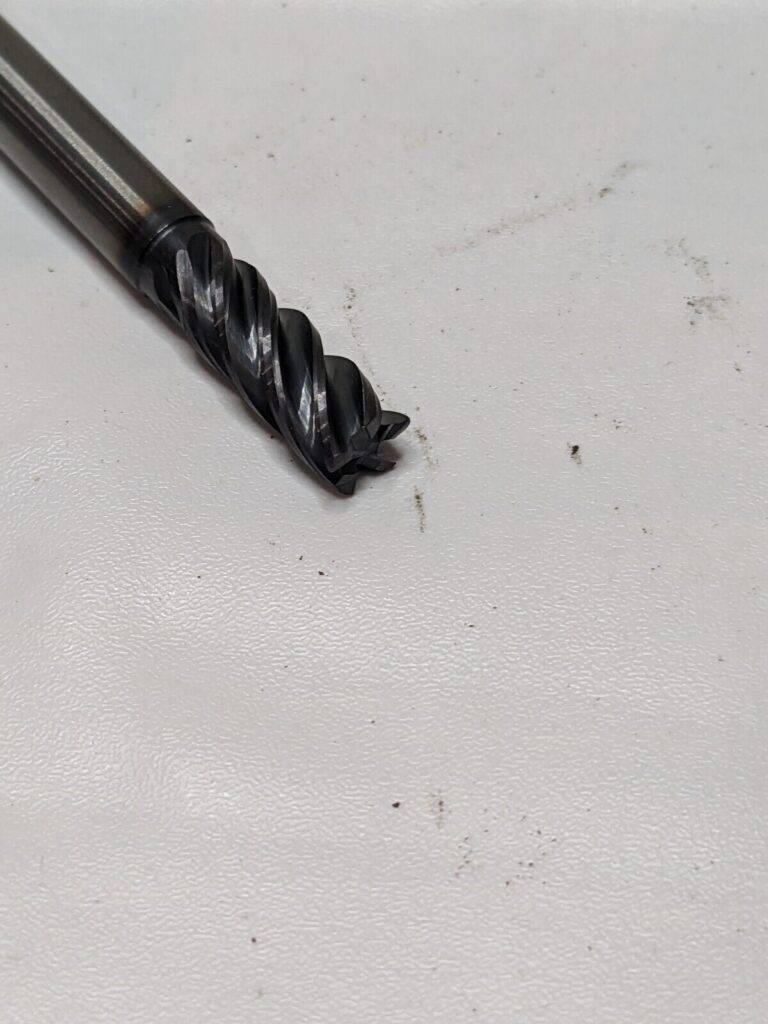

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
January 02 2024
TB 15288
BW 2 Bin 41
LOCATION: TB15288BW2Bin41
MPN: Does Not Apply
MSRP: $50.00
END MILL TYPE: Corner Radius End Mill
COUNTRY/REGION OF MANUFACTURE: Unknown
END TYPE: Corner Radius
MODEL: 3524488
BRAND: Kennametal
