KENNAMETAL
Corner Radius End Mill: 5/8″ Dia 4 Fl 4067264
MSRP: $200
- Mill Diameter (Inch) 5/8
- Mill Diameter (Decimal Inch) 0.6250
- Number Of Flutes 4
- Length of Cut (Inch) 1-5/8
- Single Or Double End Single
- End Mill Material Solid Carbide
- Coating/Finish AlTiN
- Overall Length (Inch) 3-1/2
- Centercutting Yes
- Flute Direction Right Hand
- Corner Radius (Decimal Inch) 0.1200
- Variable Index No
- Variable Helix No
- Cutting Direction Right Hand
- Coolant Through No
- Pitch Normal
- Overall Length (Decimal Inch) 3.5000
- Chipbreaker No
- End Type Corner Radius
- Length Of Cut (Decimal Inch – 4 Decimals) 0.3125
- Length Type Standard
- Flute Type Helical
- Extended Reach Yes
- Shank Type Weldon Flat
- Material Removal Type Roughing & Finishing
- Shank Diameter (Decimal Inch) 0.6250
- Shank Diameter (Inch) 5/8
- Reach Length (Decimal Inch) 1.6250
- Reach Length (Inch) 1-5/8
- Mill Diameter Tolerance +0.000000 to -0.002000 in
- Shank Diameter Tolerance +0.00000 to -0.00043 in
- Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Steel
- Primary Workpiece Material Code P; H; K; M
- UNSPSC Code 27112803
- Material Grade Submicron
- Series HPHV
- Material Application Hard Material; Stainless Steel; Cast Iron; Steel
- Coating Classification PVD
- For Use With. EM IN-HSK Form A; EM-CV Form AD
- Helix Style High

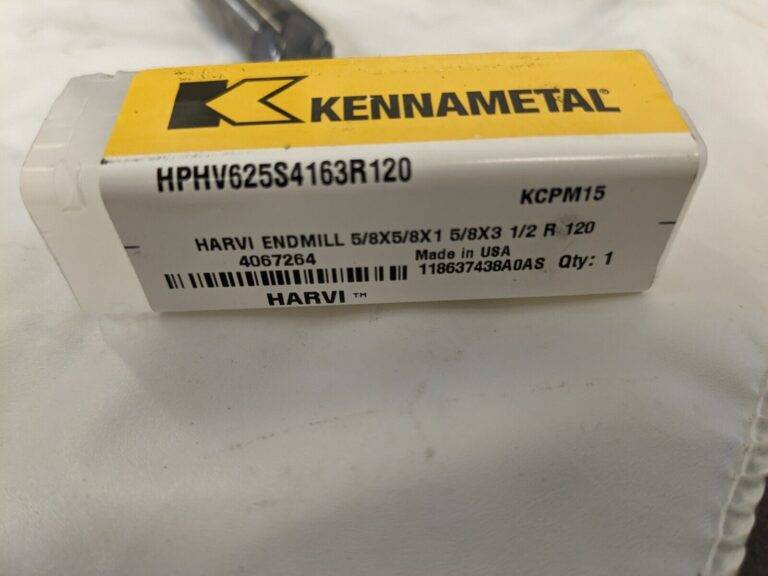

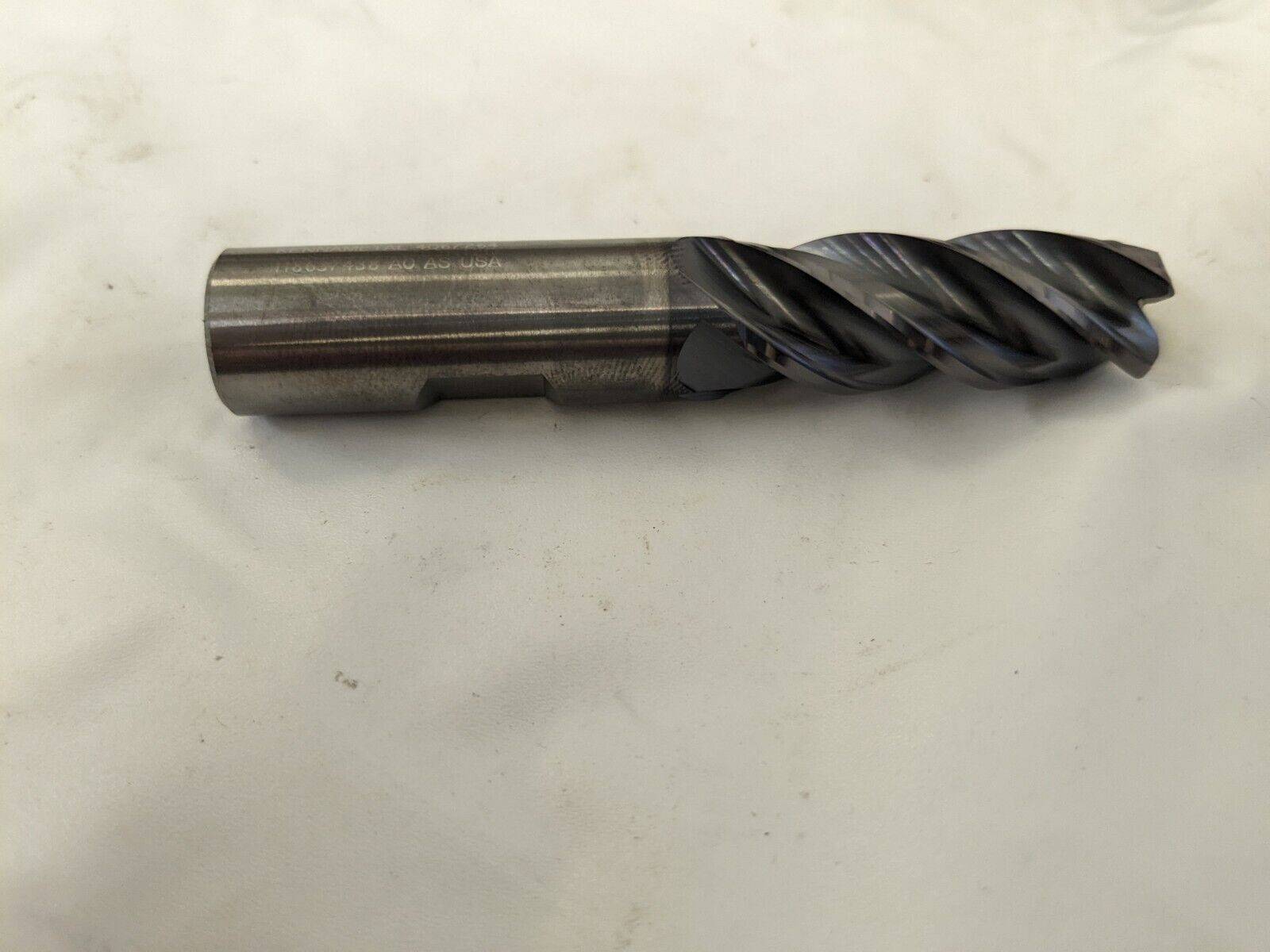

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
dec 04 23
HS3760
bullet 2
END MILL TYPE: Corner Radius End Mill
END TYPE: Corner Radius
MPN: 4067264
MSRP: $200
