Description
BRAND
Item
MSRP: $150.00
- specs
Mill Diameter (Decimal Inch) 0.6300
Mill Diameter (mm) 16.00
End Mill Material Solid Carbide
Corner Radius (Decimal Inch) 0.0394
Corner Radius (mm) 1.00
Number Of Flutes 4
Overall Length (mm) 100.00
End Type Corner Radius
Length of Cut (mm) 24.00
Length Type Long
Flute Type Spiral
Extended Reach Yes
Helix Angle 38
Centercutting Yes
Variable Index Yes
Variable Helix No
Shank Diameter (mm) 16.00
Neck Diameter (mm) 15.00
Neck Diameter (Decimal Inch) 0.5906
Mill Diameter Tolerance -0.032000 to -0.059000 mm
Shank Diameter Tolerance +0.000/-0.011 mm
Cutting Direction Right Hand
Flute Direction Right Hand
Series UBDE
Single Or Double End Single
Length Of Cut (Decimal Inch – 4 Decimals) 0.9449
(Description).

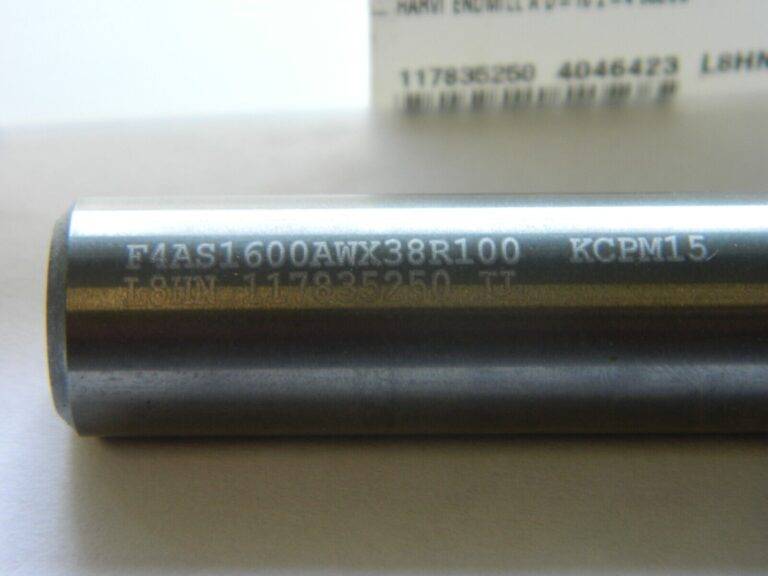

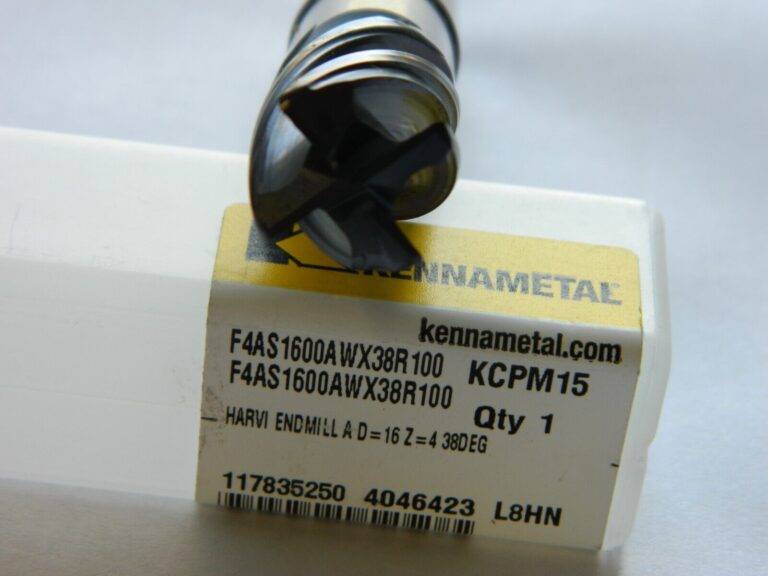

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
Date
Lister#
Loc
BRAND: Kennametal
END TYPE: Corner Radius
NUMBER OF FLUTES: 4
END MILL TYPE: Corner Radius End Mill
MATERIAL: Solid Carbide
