Kennametal
MSRP: $80.00
Model: 3748376
Description:
Insert Style VNMG
Insert Size 332
Material Carbide
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1875
Length (Decimal Inch) 0.6539
Inscribed Circle (Decimal Inch) 0.3750
Inscribed Circle (Inch) 3/8
Corner Radius (Inch) 1/32
Corner Radius (Decimal Inch) 0.0312
Manufacturer’s Grade KCP05
Coating TiCN/Al2O3
Material Grade C3/C4
Chip breaker FF
Length (mm) 16.61
Hole Diameter (mm) 3.81
Hole Diameter (Decimal Inch) 0.1500
Rake Positive
Rake Angle 20
Relief Angle 0
Coating Process CVD
Primary Workpiece Material P
Secondary Workpiece Material K
Included Angle 35
Series KENLOC
Maximum Depth of Cut (mm) 1.25
Maximum Depth of Cut (Decimal Inch) 0.0492
Insert Holding Method Pin & Clamp
Shape Diamond

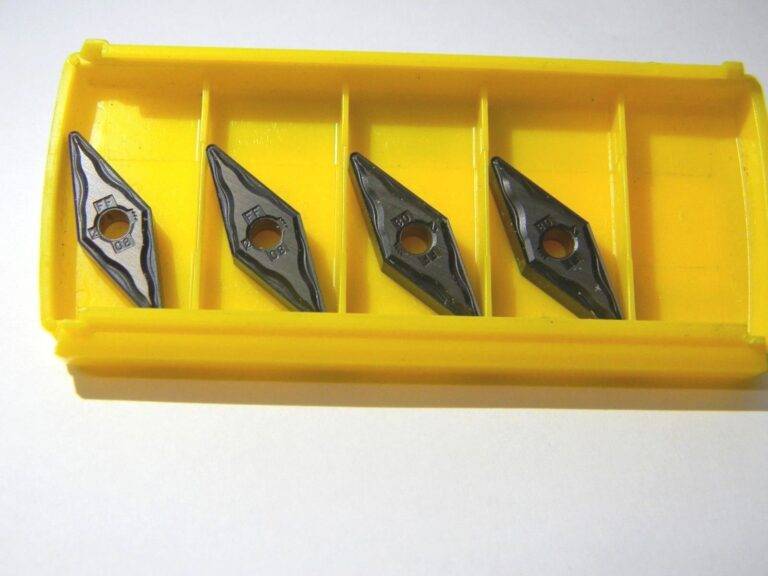

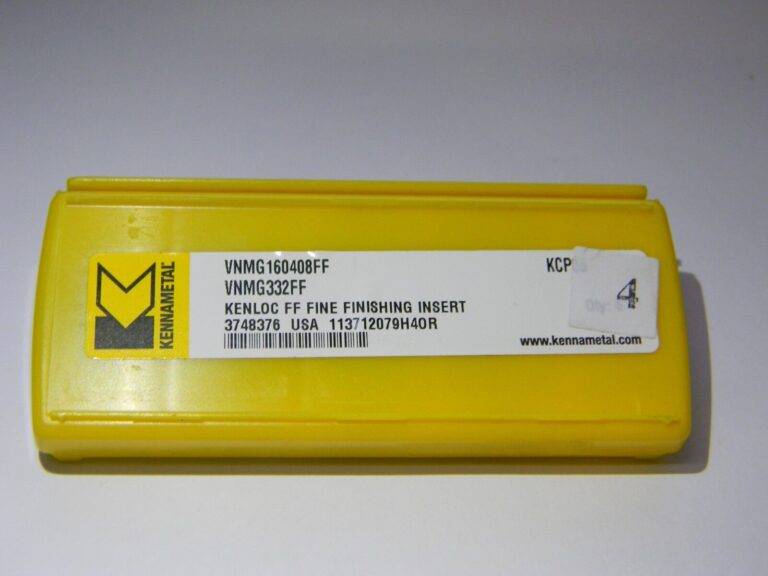

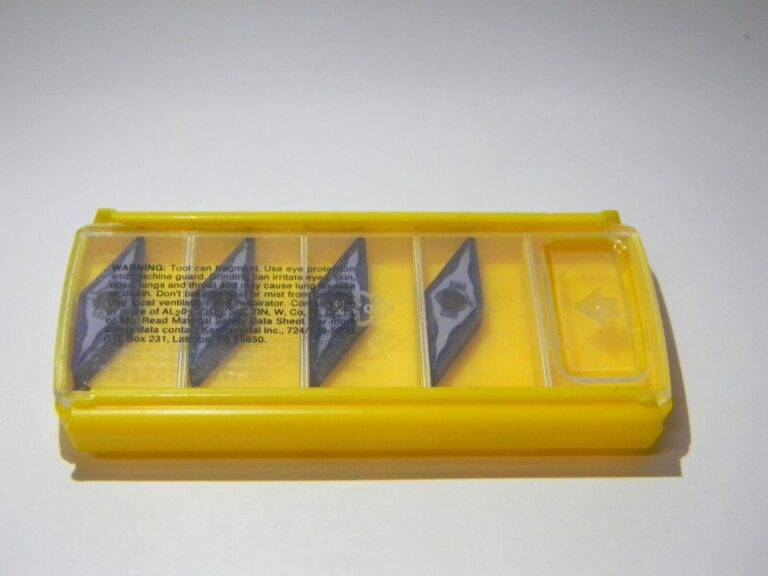

This listing is for One box of 4 Inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Tina August 12 2020
TB 6094
Cab Mittens Bin 62
MPN: Does Not Apply
LOCATION: TB6094CabMittensBin62
MSRP: 80.00
COUNTRY/REGION OF MANUFACTURE: United States
INSERT MATERIAL: Carbide
MODEL: 3748376
INSERT TYPE: Turning Insert
BRAND: Kennametal
