Kennametal
MSRP: $85 For a box of 5
Model: 3753369
Description:
Manufacturer: Kennametal
Mfr Part #: 3753369
Insert Style: TNMM
Insert Size: 332
Material: Carbide
Inscribed Circle (Decimal Inch) : 0.3750
Inscribed Circle (Inch) : 3/8
Thickness (Inch) : 3/16
Thickness (Decimal Inch) : 0.1875
Corner Radius (Inch) : 1/32 1/32
Corner Radius (Decimal Inch) : 0.0312
Manufacturer’s Grade: KCP10
Coating: TiCN/Al2O3
Material Grade: C3/C7
Chip breaker: RP
Length (mm): 16.36
Length (Decimal Inch): 0.6441
Hole Diameter (mm): 3.81
Hole Diameter (Decimal Inch): 0.1500
Rake: Neutral
Rake Angle: 0
Relief Angle: 0
Coating Process: CVD
Included Angle: 60
Series: KENLOC
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
Insert Holding Method: Screw or Clamp
Shape: Triangle

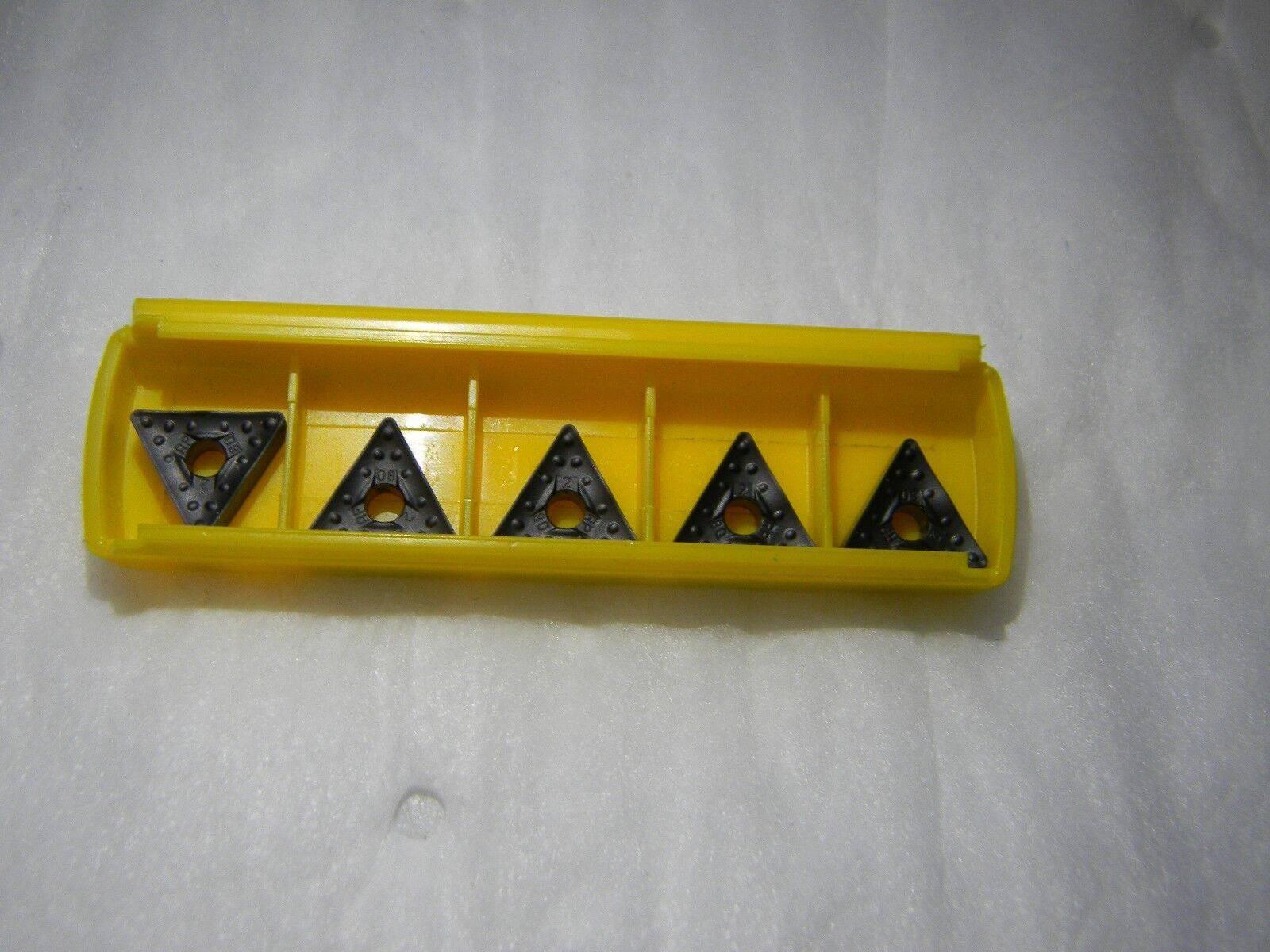

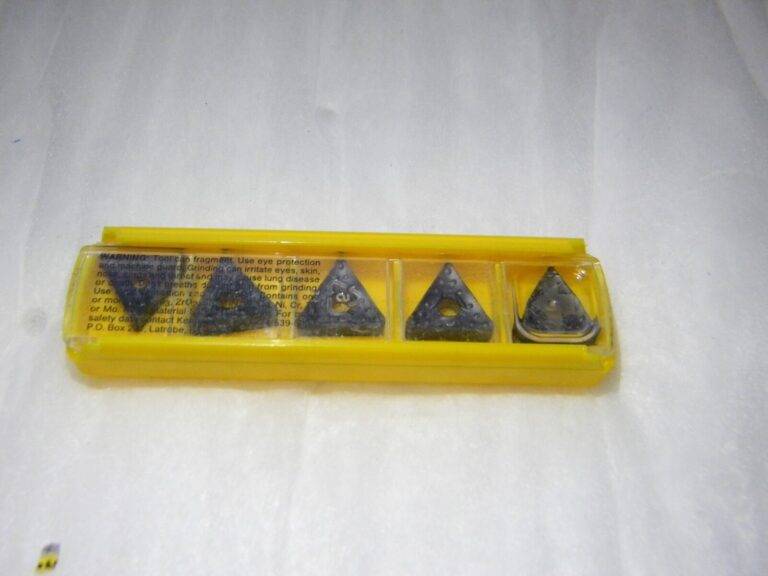

This listing is for One Box of 5 Inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Dina June 12 2018
DP3460
Cab Kelly Bin 21
MSRP: 85
SHAPE: Triangle

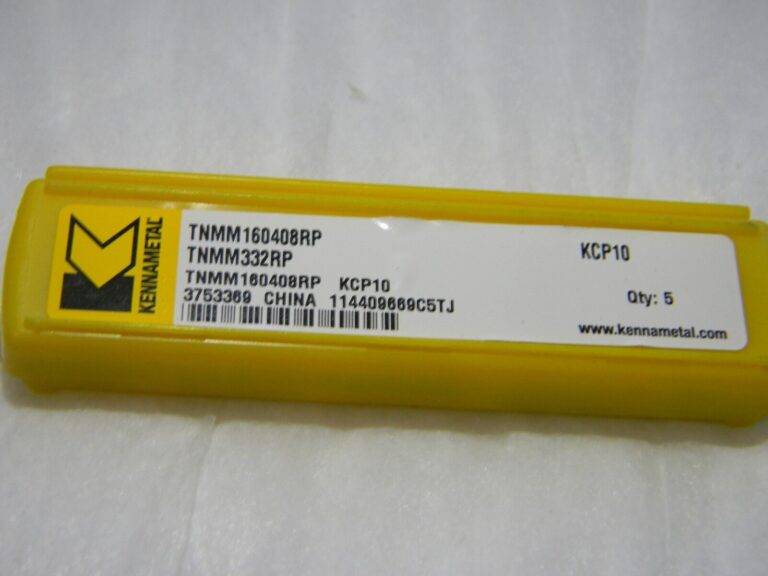

MODEL: TNMM332RP TNMM160408RP
COUNTRY/REGION OF MANUFACTURE: China
GRADE: KCP10
MPN: 3753369
BRAND: Kennametal
INSERT MATERIAL: Carbide
