Kennametal
MSRP: $70.00
Model: 1865060
Description:
Insert Style: TPMT
Insert Size: 1.81.51
Material: Carbide
Length (mm) : 9.63
Length (Decimal Inch) : 0.3791
Inscribed Circle (Decimal Inch) : 0.2188
Inscribed Circle (Inch) : 7/32
Thickness (Inch) : 3/32
Thickness (Decimal Inch) : 0.0938
Corner Radius (Inch) : 1/64
Corner Radius (Decimal Inch) : 0.0156
Manufacturer’s Grade: KC9110
Coating: TiCN/Al2O3/TiCN/TiN
Material Grade: C3/C7
Chip Breaker: LF
Hole Diameter (mm): 2.65
Hole Diameter (Decimal Inch): 0.1043
Rake: Positive
Rake Angle: 5
Relief Angle: 11
Coating Process: CVD
Primary Workpiece Material: P
Secondary Workpiece Material: M
Included Angle: 60
Insert Hand: Neutral
Series: Screw-On
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
Insert Holding Method: Screw
Shape: Triangle

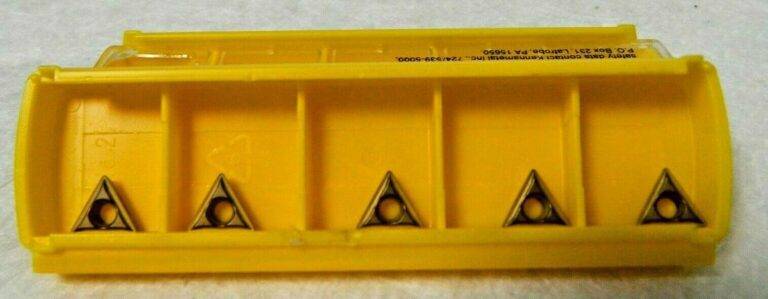

This listing is for One Lot of 5 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
Tina February 05 2021
TB 7998
Cab Dragon Bin 71
INSERT TYPE: Turning Insert
COUNTRY/REGION OF MANUFACTURE: China
MODEL: 1865060
LOCATION: TB7998CabDragonBin71
MSRP: 70.00
MPN: Does Not Apply
BRAND: Kennametal
INSERT MATERIAL: Carbide
