Description
Kennametal
MSRP: $50.00
Model: 1124300
Description:
nsert Style TNMA
Insert Size 432
Material Carbide
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1875
Length (mm) 22.00
Length (Decimal Inch) 0.8661
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Corner Radius (Inch) 1/32
Corner Radius (Decimal Inch) 0.0312
Manufacturer’s Grade K68
Coating Uncoated
Material Grade C3
Hole Diameter (mm) 5.16
Hole Diameter (Decimal Inch) 0.2031
Rake Negative
Relief Angle 0
Primary Workpiece Material M; K; N; S
Included Angle 60
Insert Hand Neutral
Series KENLOC
Maximum Depth of Cut (mm) 1.25
Maximum Depth of Cut (Decimal Inch) 0.0492
Insert Holding Method Pin & Clamp
Shape Triangle

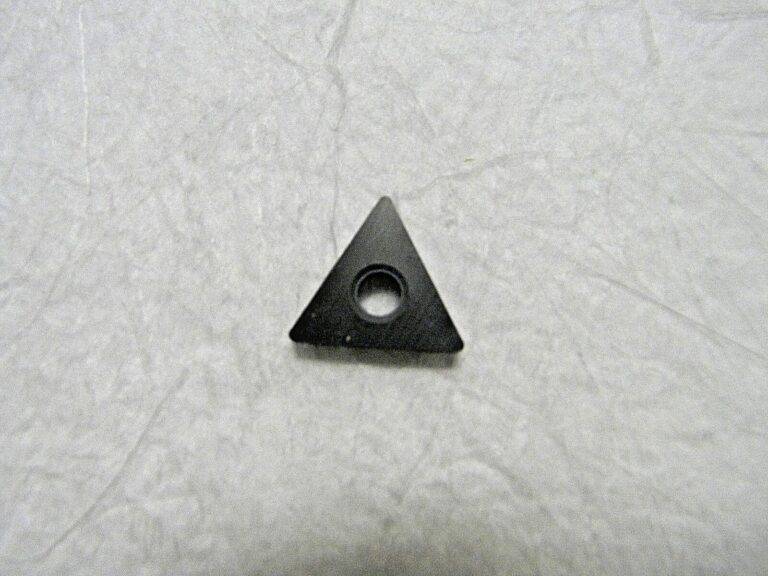

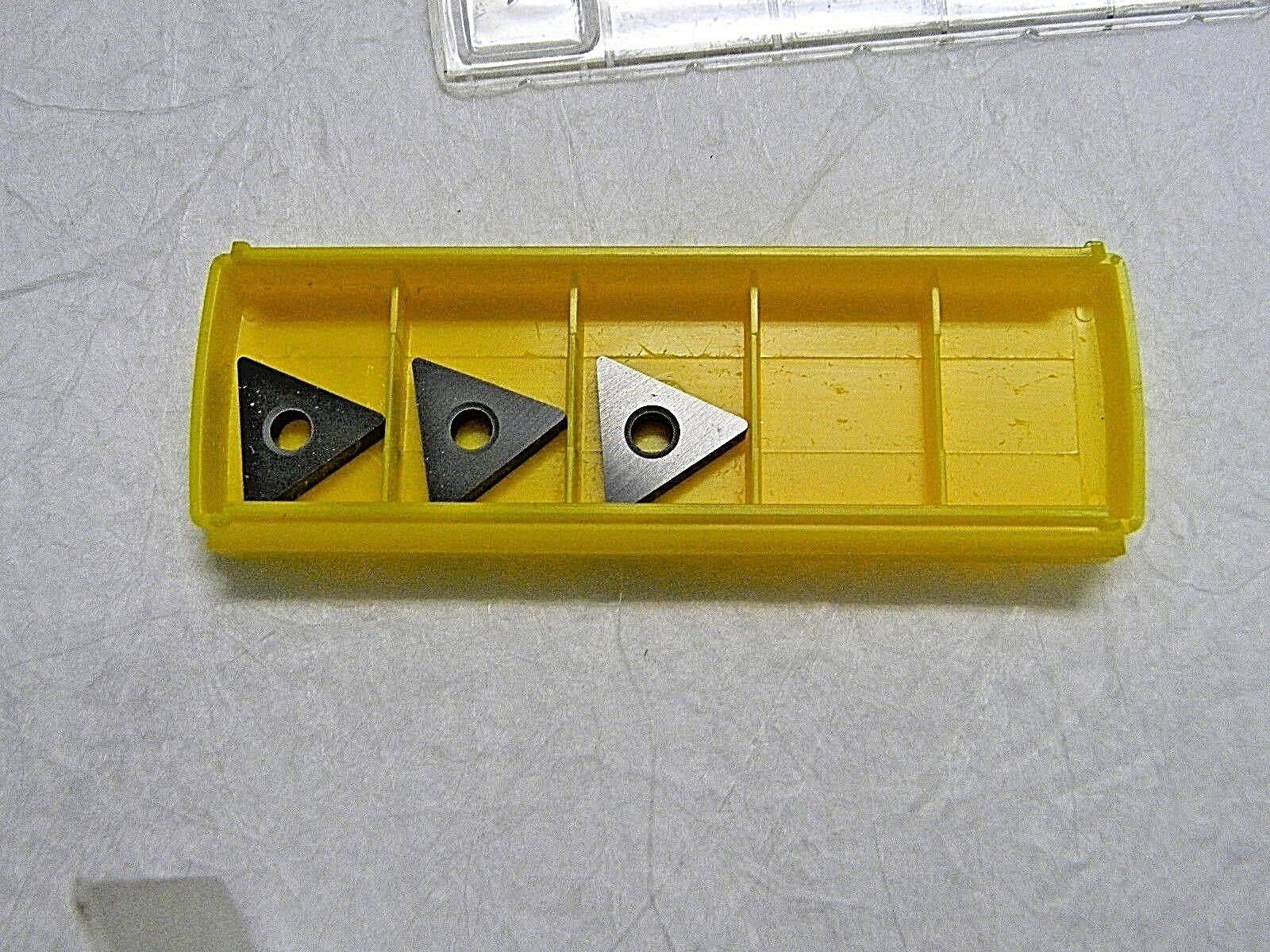

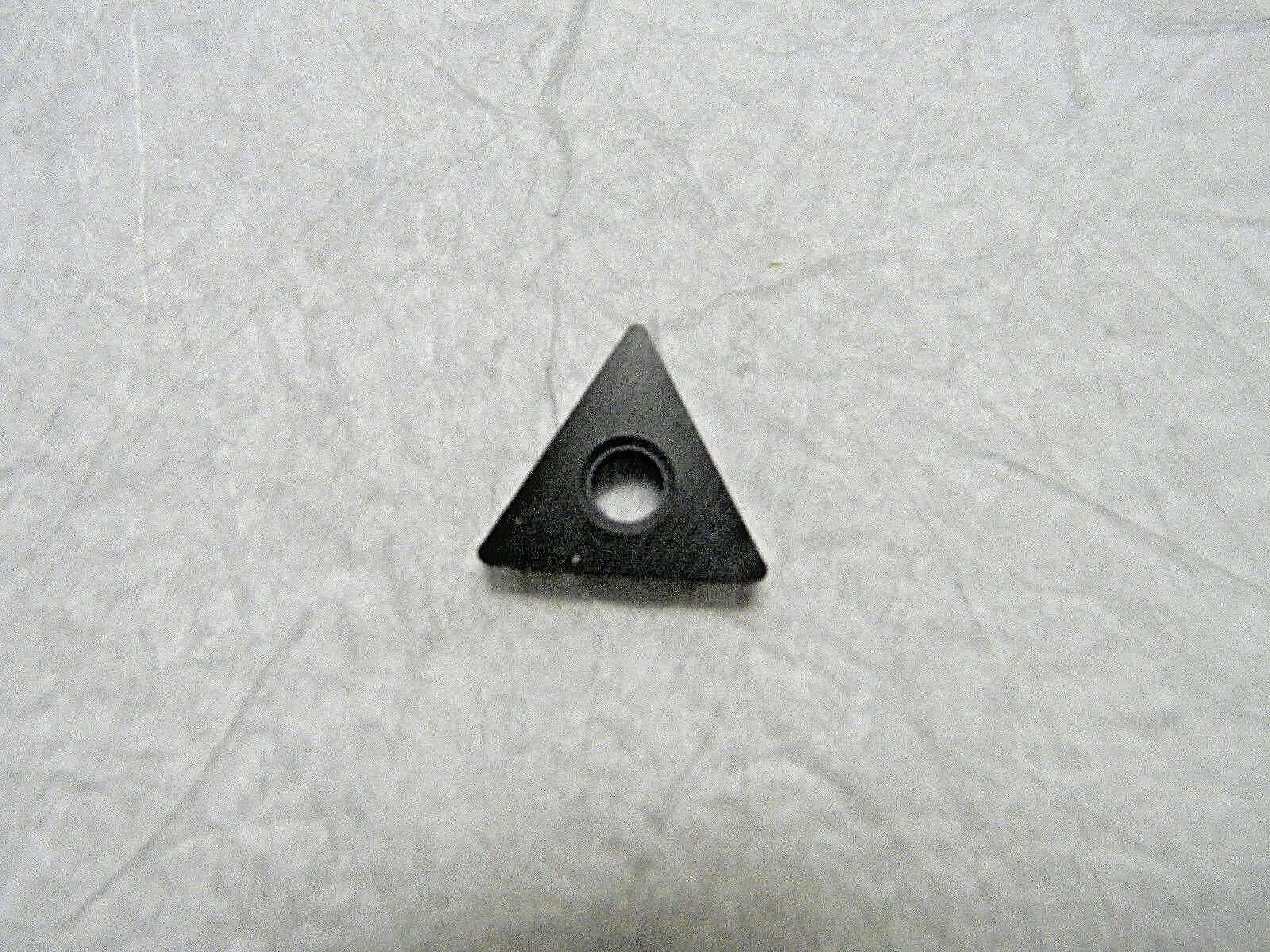

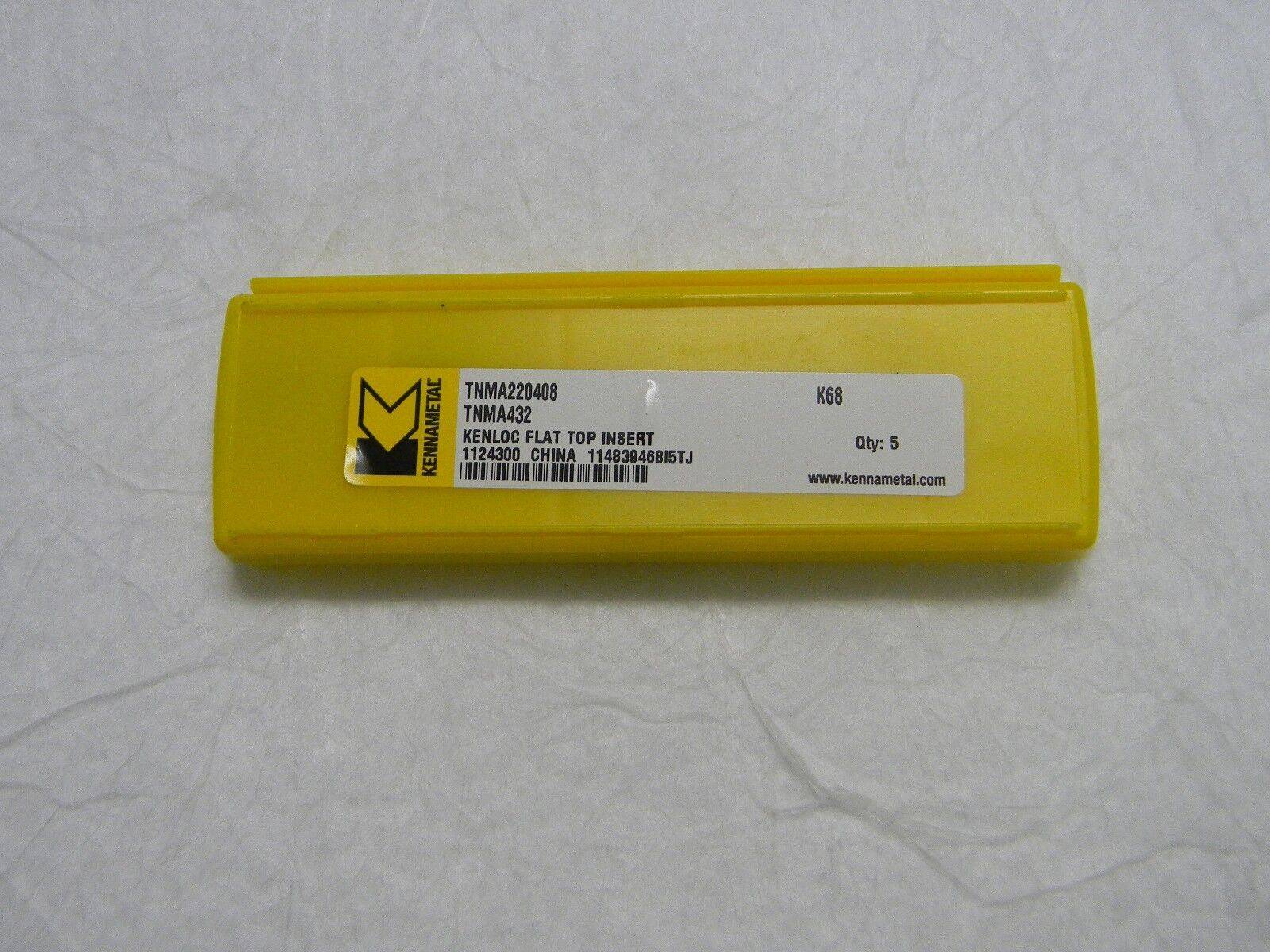

This listing is for One Pack of 3 inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Cristy Octocber 30 2018
CM 323
Cab vikki24
COUNTRY/REGION OF MANUFACTURE: China
MPN: 1124300
BRAND: Kennametal
MSRP: 50.00
