Description
Kennametal
1 Lot of 5 Carbide Turning Inserts
- Insert Style: SNMG
- Insert Size: 644
- Material: Carbide
- Inscribed Circle: 0.7500
- Inscribed Circle: 3/4″
- Thickness: 1/4″
- Thickness: 0.2500″
- Corner Radius: 1/16″
- Corner Radius: 0.0625″
- Manufacturer’s Grade: KC9125
- Coating: TiCN/Al2O3/TiCN/TiN
- Material Grade: C2/C3/C6/C7
- Chip breaker: MN
- Hole Diameter: 7.93 mm
- Hole Diameter: 0.3122″
- Rake: Neutral
- Rake Angle: 0º
- Relief Angle: 0º
- Coating Process: CVD
- Primary Workpiece Material: P
- Included Angle: 90º
- Insert Hand: Neutral
- Maximum Depth of Cut: 1.25 mm
- Maximum Depth of Cut: 0.0492″
- Insert Holding Method: Screw or Clamp
- Shape: Square

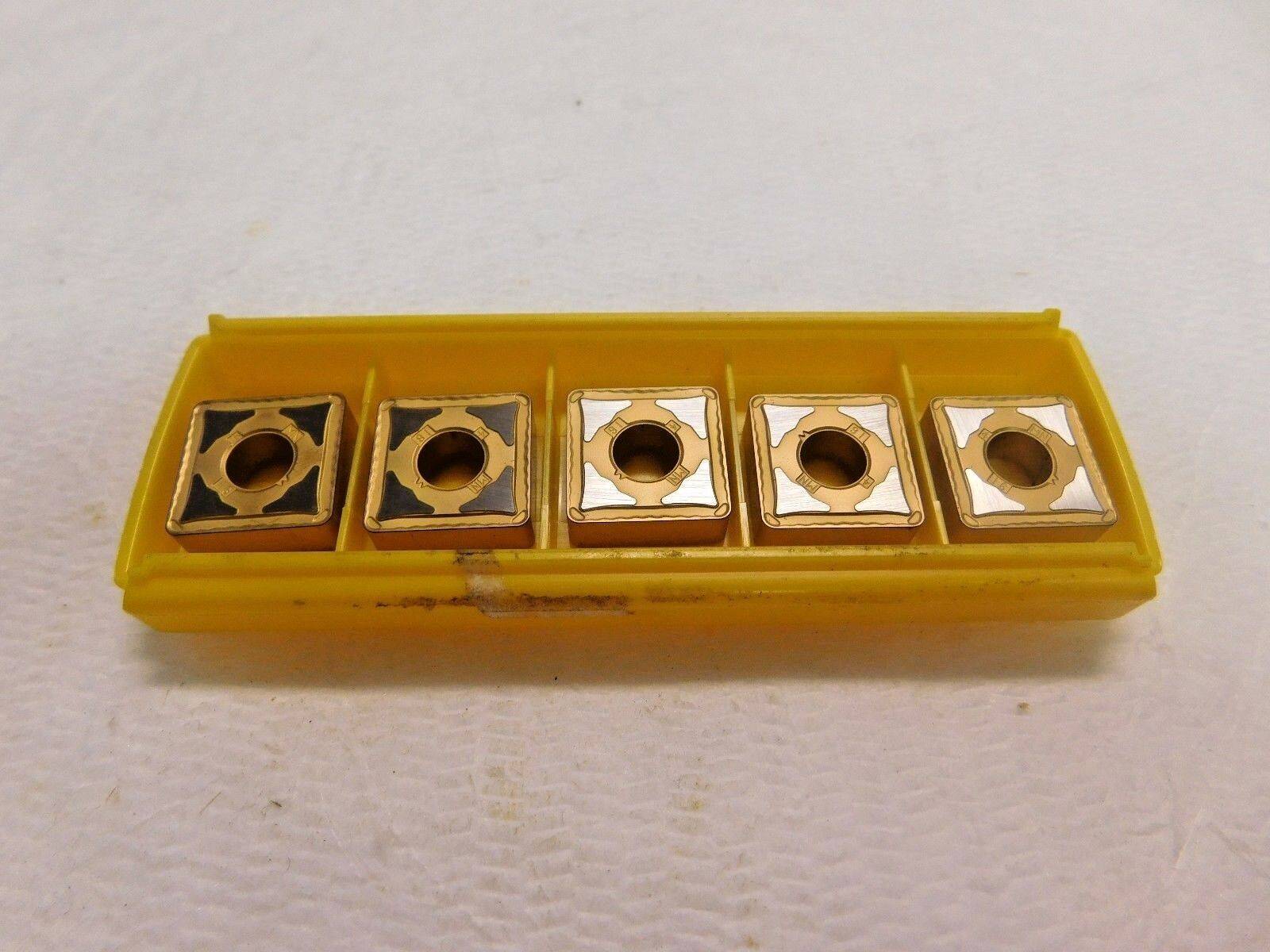

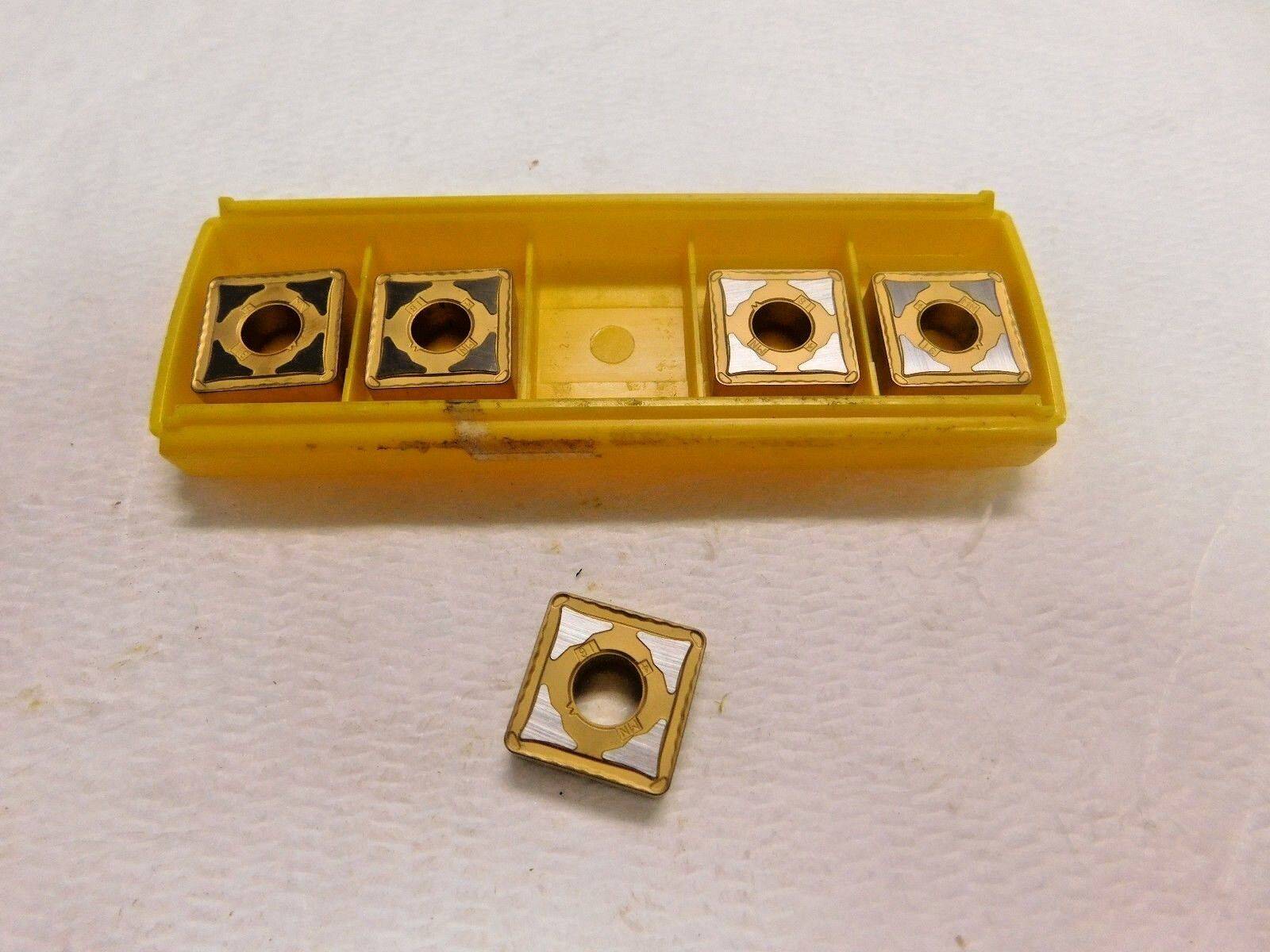

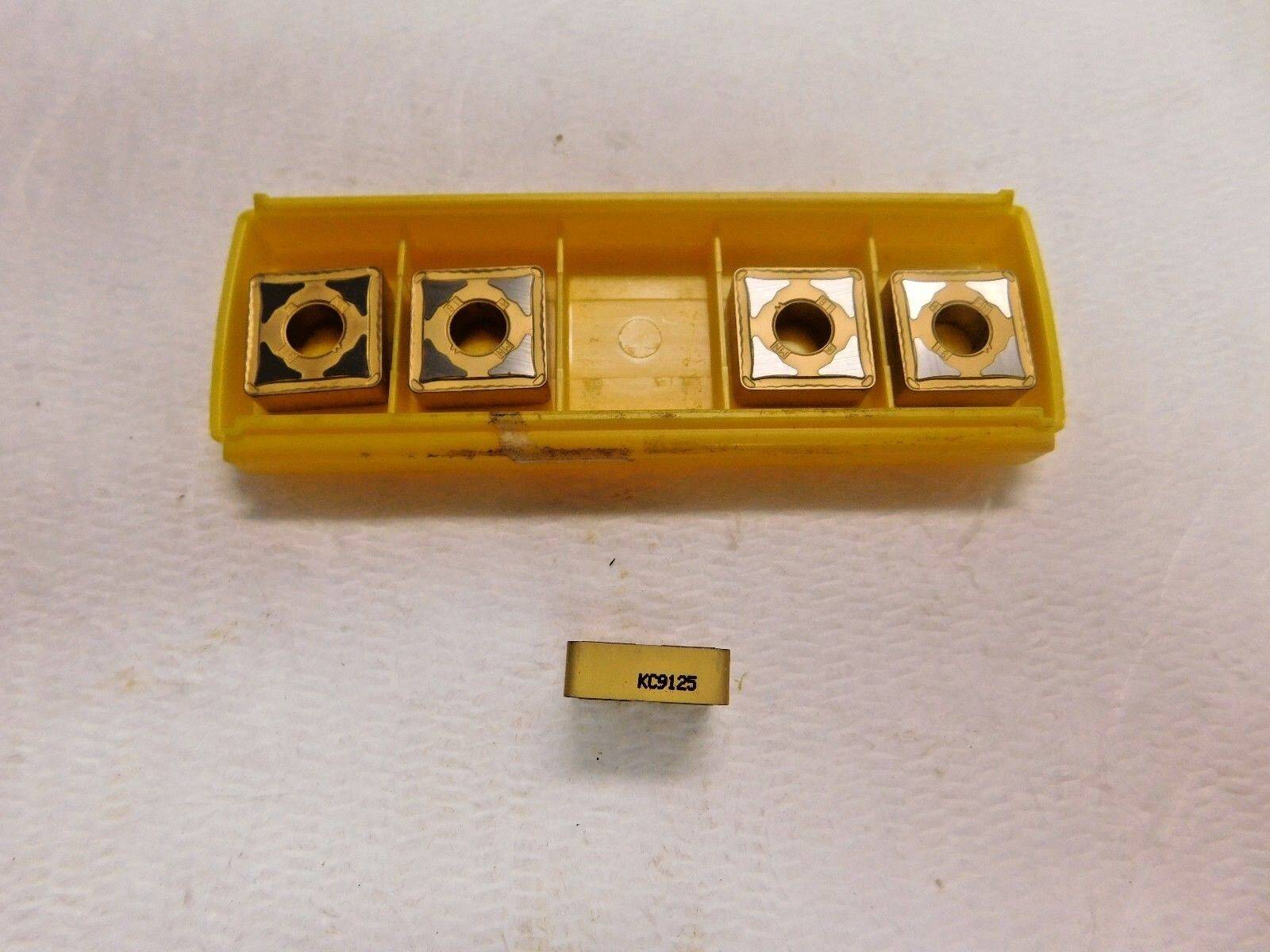

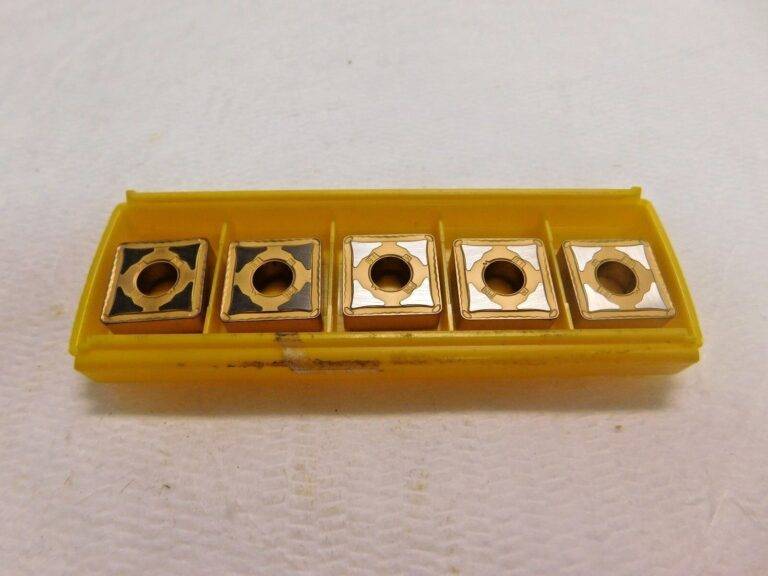

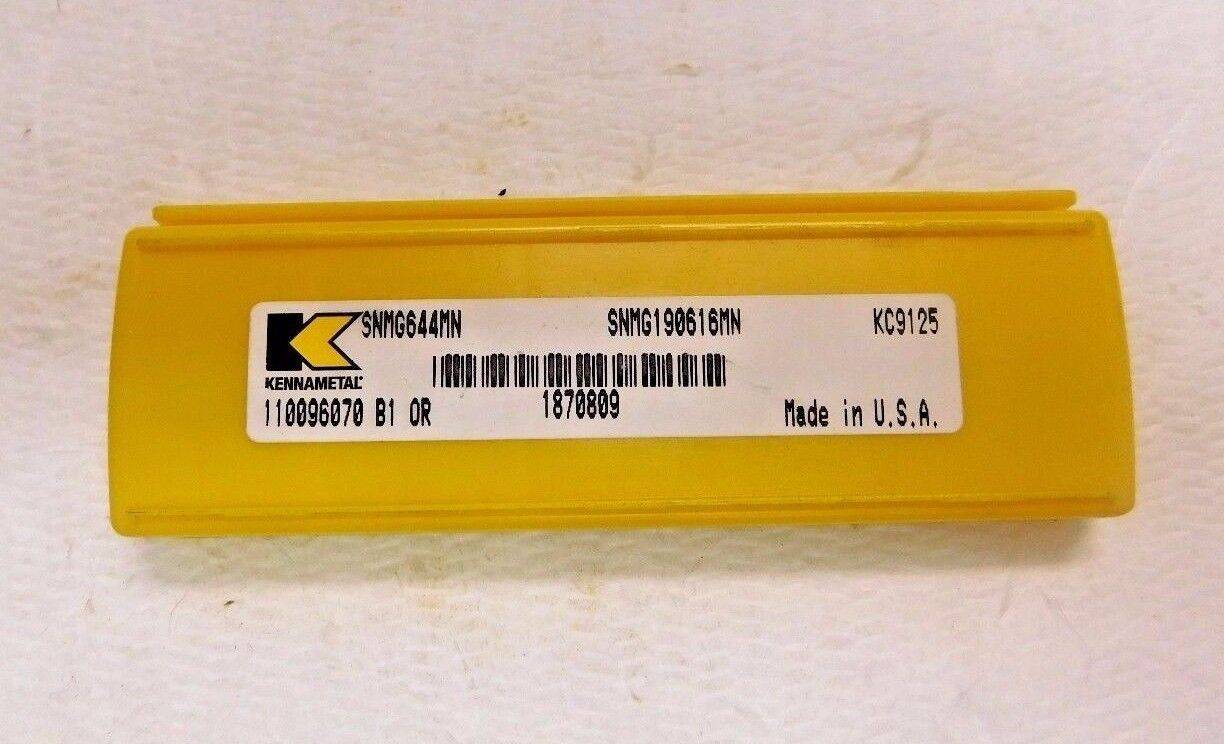

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
March 08 2021
TB 8317
BW 2 Bin 23
MPN: Does Not Apply
MSRP: 100.00
COUNTRY/REGION OF MANUFACTURE: United States
INSERT MATERIAL: Carbide
GRADE: KC9125
MODEL: 1870809
SHAPE: Square
INSERT TYPE: Turning Insert
LOCATION: TB8317BW2Bin23
BRAND: Kennametal
