Kennametal

Turning Insert: RCGH43 KC5010  QTY 5

MSRP: $150.00

• ANSI Insert Code    RCGH43
• ISO Insert Code   RCGH120400
• Relief Angle    7
• Insert Style    RCGH
• Corner Radius (Inch)  1/4
• Corner Radius (Decimal Inch)   0.2500
• Included Angle  360
• Manufacturer Grade  KC5010
• Coating/Finish        TiAlN
• Wiper Edge    No
• Insert Hand    Neutral
• Insert Thickness (Inch)     3/16
• Insert Thickness (Decimal Inch)      0.1875
• Series   KENDEX
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch)  1/2
• Insert Material          Carbide
• Insert Shape      R – Round
• Chip Breaker Operation         Medium Machining
• Grade Characteristics    Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance    Positive
• Number Of Cutting Edges  4
• Insert Shape Code        R
• Hole Diameter (Decimal Inch)  0.2165
• Hole Diameter (Mm) ( – 0 Decimals) 5.50
• Maximum Depth of Cut (mm)    1.25
• Maximum Depth of Cut (Decimal Inch)      0.0492
• Insert Holding Method       Screw
• Width (Inch)     1/2
• Clearance Code   C
• Tolerance Code   G
• Coating Process   PVD
• Rake  Positive
• Insert Length (Decimal Inch)     0.5000
• Insert Length (Inch)  1/2
• Primary Workpiece Material      Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece Material Code      P; S; K; M; N
• Standards    ISO; ANSI
• Material Grade   C3; C4
• Coating Classification    PVD
• Chip Breaker        Common
• Cutting Edge Style      Honed
• Industry Standard Number   RCGH43
• Width (Decimal Inch – 4 Decimals)     0.5000
• Multi-Use Tool      Yes
• Full Radius   Yes
• Multi-Use Application    Facing; Turning; Boring
• ANSI Size Code   43
• ISO Size Code  120400
• Insert Size Code   43
• Country of Origin   UNITED STATES

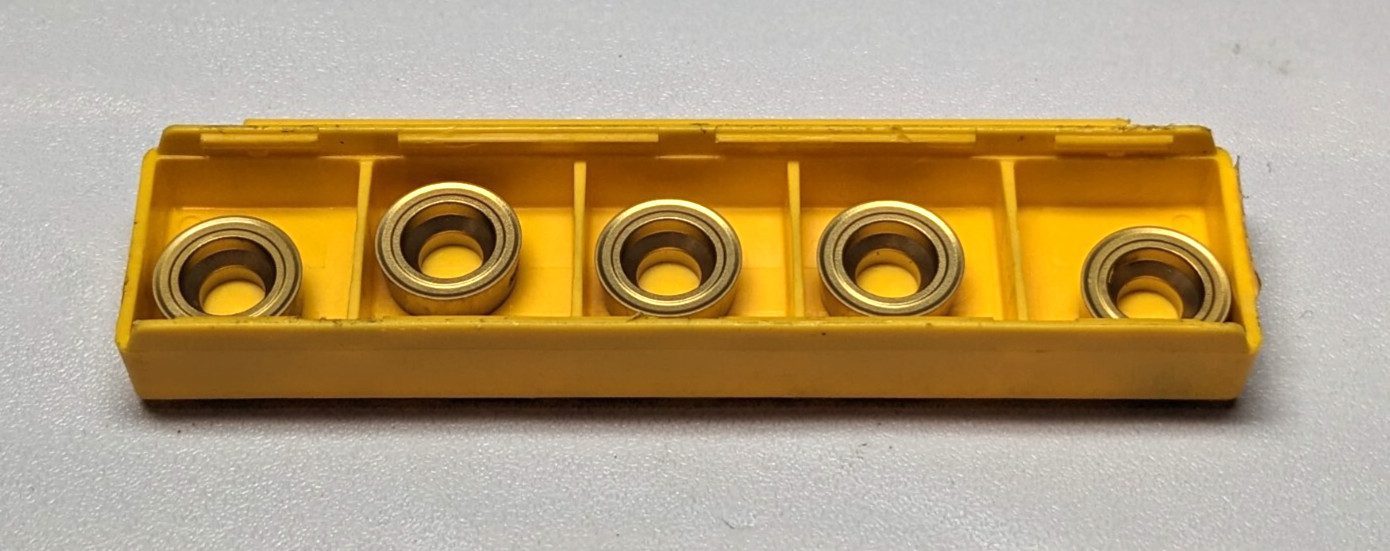

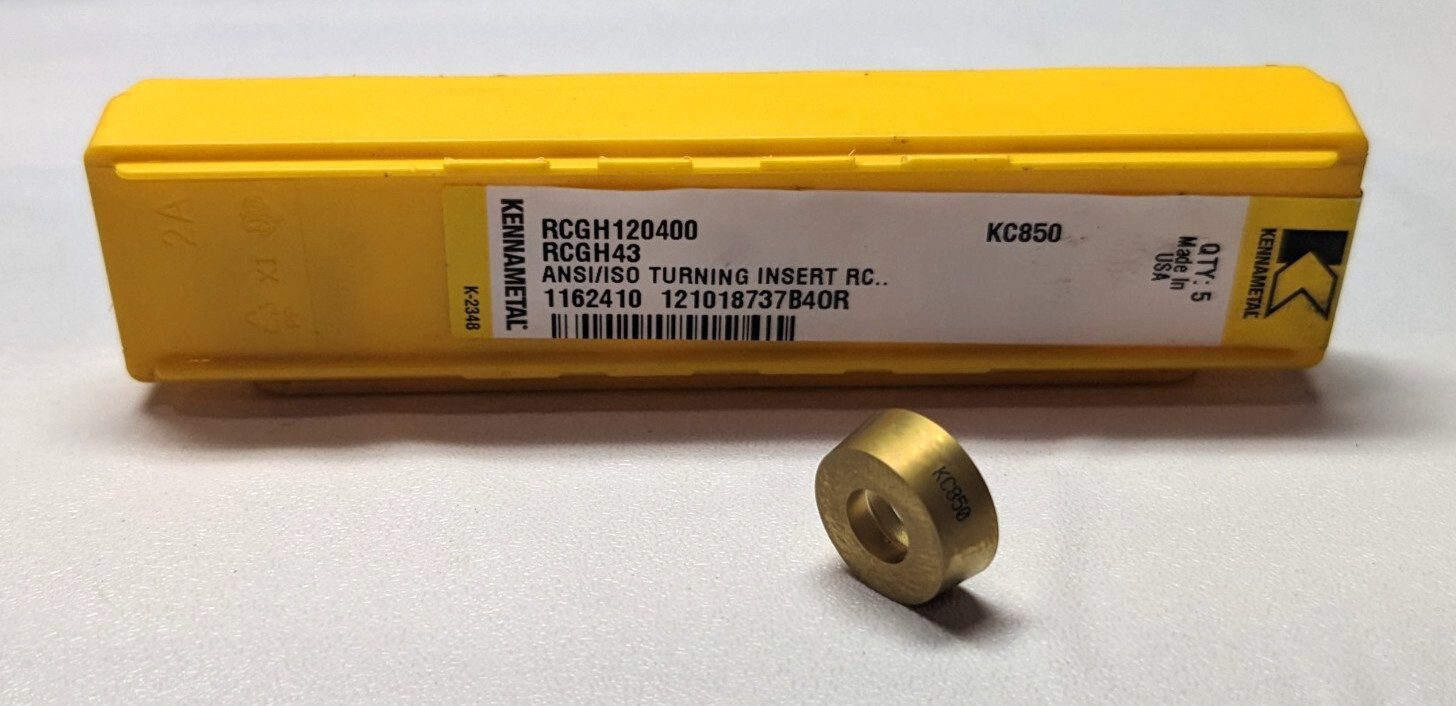

*This sale is for a NEW 5 Pack of Inserts.  Opened for photos only.  You will receive exactly what is shown in our pictures.  SOLD AS IS, WITHOUT WARRANTY.

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
