Kennametal
MSRP: $120.00
Model: 1567378
Description:
Insert Style: CNMA
Insert Size: 643
Material: Carbide
Length (mm) : 19.34
Length (Decimal Inch) : 0.7614
Inscribed Circle (Decimal Inch) : 0.7500
Inscribed Circle (Inch) : 3/4
Thickness (Inch) : 1/4
Thickness (Decimal Inch) : 0.2500
Corner Radius (Inch) : 3/64
Corner Radius (Decimal Inch) : 0.0469
Manufacturer’s Grade: KC9315
Coating: TiCN/Al2O3/TiN
Material Grade: C3/C4
Hole Diameter (mm): 7.93
Hole Diameter (Decimal Inch): 0.3122
Rake: Negative
Relief Angle: 0
Coating Process: CVD
Primary Workpiece Material: K
Included Angle: 80
Insert Hand: Neutral
Series: KENLOC
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
Insert Holding Method: Screw or Clamp
Shape: Diamond

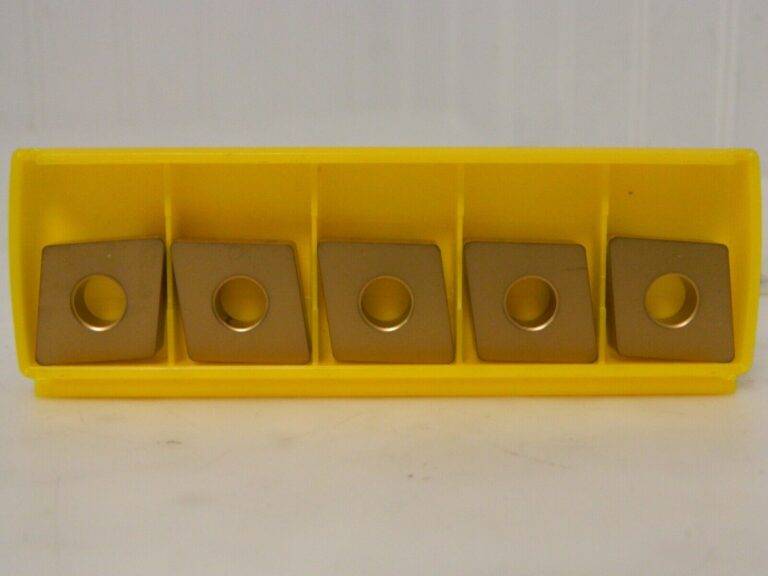

This listing is for One Lot of 5 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
