Description
Kennametal
MSRP: $290
Model: 3904160
Description:
Drill Bit Size (Decimal Inch) 0.5625
Drill Bit Size (Inch) 9/16
Drill Point Angle 140
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating Multilayer TiAlN
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Coolant Through Yes
Flute Length (mm) 65.00
Flute Length (Decimal Inch) 2.5591
Overall Length (mm) 115.00
Overall Length (Decimal Inch) 4.5276
Flute Length x Diameter Ratio 3xD
Point Type Standard
Shank Diameter (mm) 16.00
Shank Diameter (Decimal Inch) 0.6299
Flute Type Spiral
Specification Designation DIN
Maximum Drilling Depth (mm) 45.00
Maximum Drilling Depth (Decimal Inch) 1.7717
Spiral Type Regular Spiral
Shank Length (mm) 48.00
Shank Length (Decimal Inch) 1.8898
Threaded Shank No
Number of Flutes 2
Drill Point Length (mm) 2.71
Drill Point Length (Decimal Inch) 0.1068
Drill Bit Diameter Tolerance (Decimal Inch) +0.0003 to +0.0010
Web Configuration Tapered
Drill Bit Diameter Tolerance (mm) +0.007 to +0.025
Drill Bit Diameter Tolerance (mm) +0.007 to +0.025
Drill Bit Diameter Tolerance (Decimal Inch) +0.0003 to +0.0010
Drill Tip Finish/Coating None
Specification Number DIN 6537K
Specification Number DIN 6537K
Series/List B291-YPL
Length Type Stub

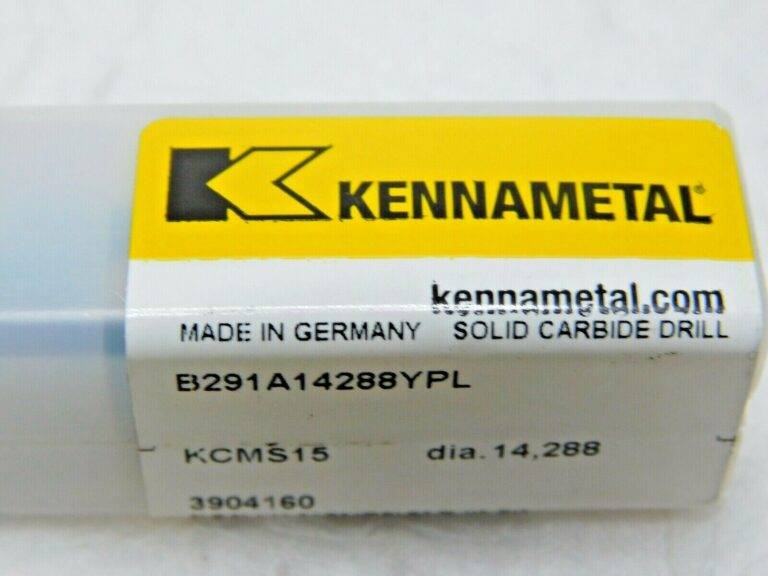

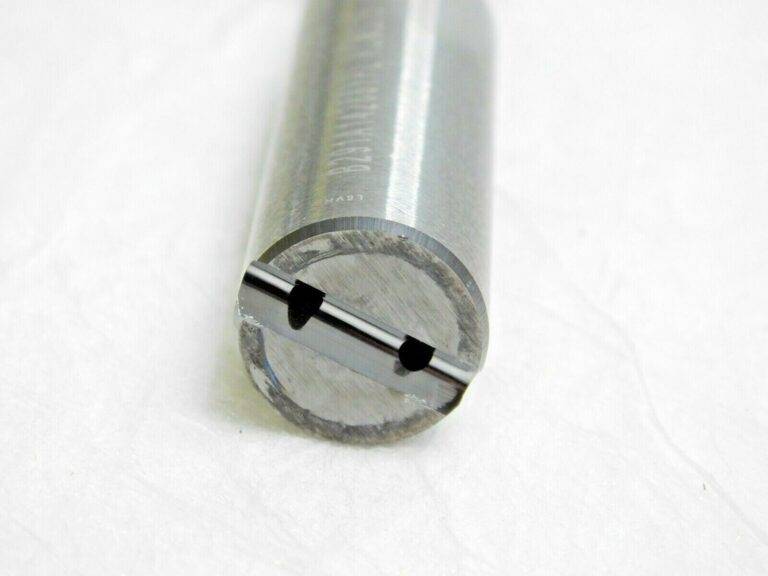

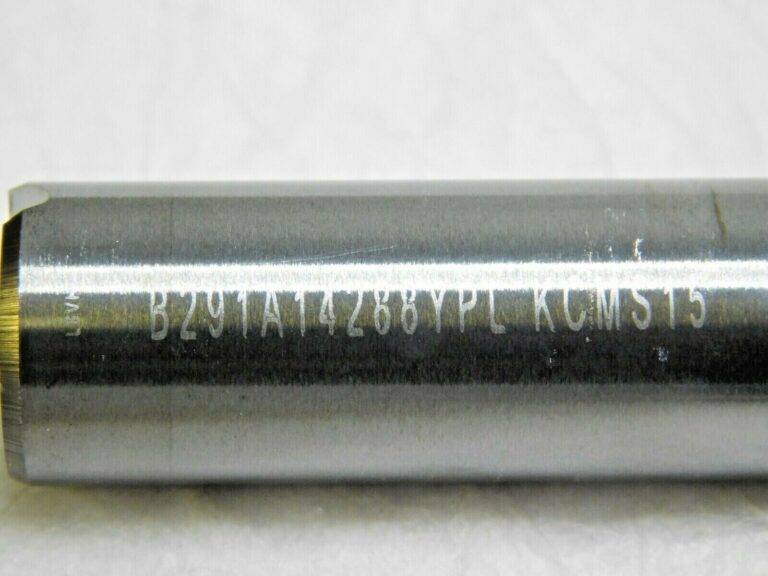

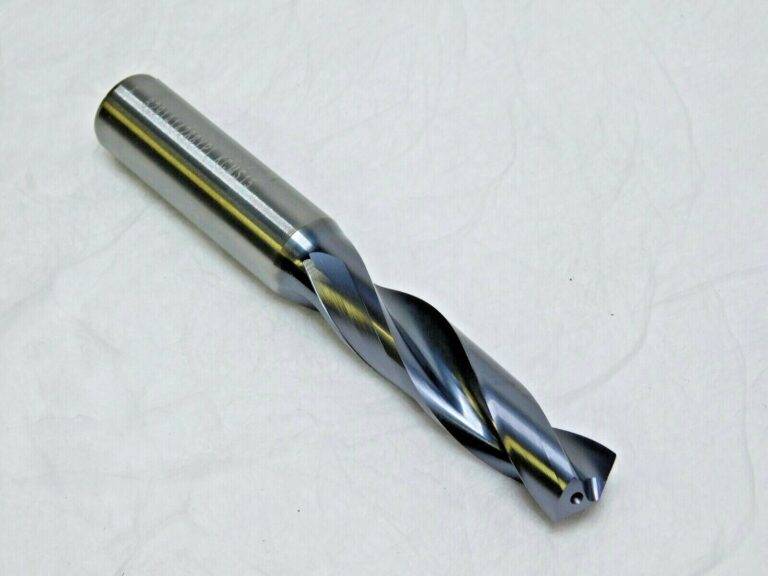

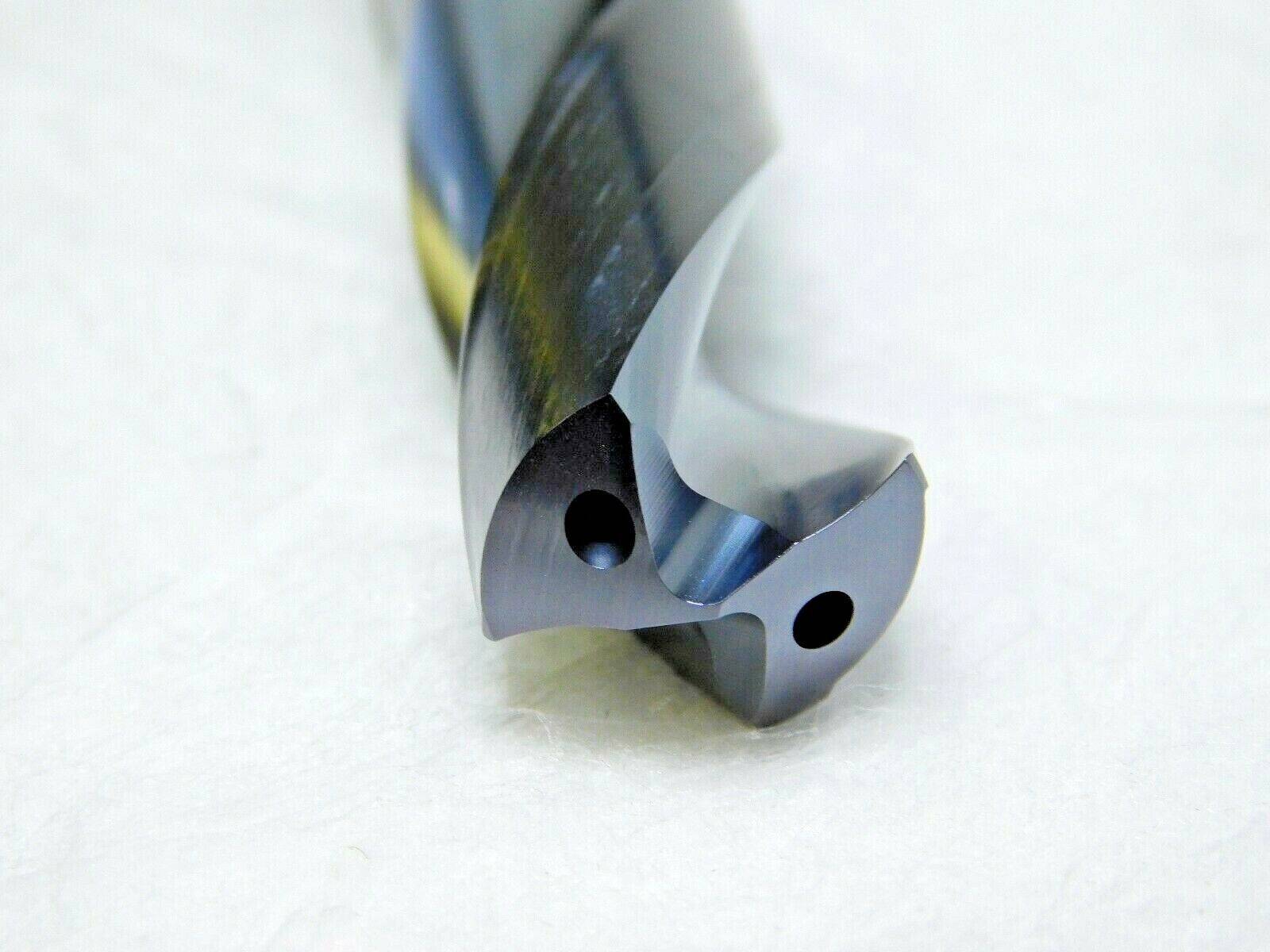

This listing is for One Carbide Screw Machine Coolant Drill that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Vivian September 18 2020
VM8846
Cab Bullet Bin 13
MODEL: 3904160
COUNTRY/REGION OF MANUFACTURE: Germany
MPN: Does Not Apply
DRILL BIT SIZE: 9/16 in
BRAND: Kennametal
LOCATION: VM8846cabbulletbin13
MSRP: $290
