Description
Kennametal
Carbide Drill
MSRP: $345
- Drill Bit Size (Inch) 1/2
- Tool Material Solid Carbide
- Coating/Finish Multilayer TiAlN
- Flute Length (mm) 108.00
- Shank Type Straight-Cylindrical
- Point Type Standard
- Flute Type Spiral
- Coolant Through Yes
- Drill Point Angle (Degrees) 140
- Overall Length (mm) 155
- Shank Diameter (mm) 14.00
- Drill Bit Size (Decimal Inch) 0.5000
- Flute Length (Decimal Inch) 4.2520
- Flute Length x Diamter Ratio 8xD
- Overall Length (Decimal Inch) 6
- Cutting Direction Right Hand
- Series B053A-CPG
- Shank Diameter (Decimal Inch) 0.5512
- Flute Length X Diameter Ratio 8xD
- Maximum Drilling Depth (Decimal Inch) 3.5827
- Maximum Drilling Depth (mm) 91.00
- Shank Length (Decimal Inch) 1.7717
- Shank Length (mm) 45.00
- Drill Point Length (Decimal Inch) 0.0860
- Drill Point Length (mm) 2.18
- Drill Bit Diameter Tolerance -0.018 to 0.000 mm; -0.0007 to 0.0000 in
- Web Configuration Tapered
- Specification Number DIN 6537K

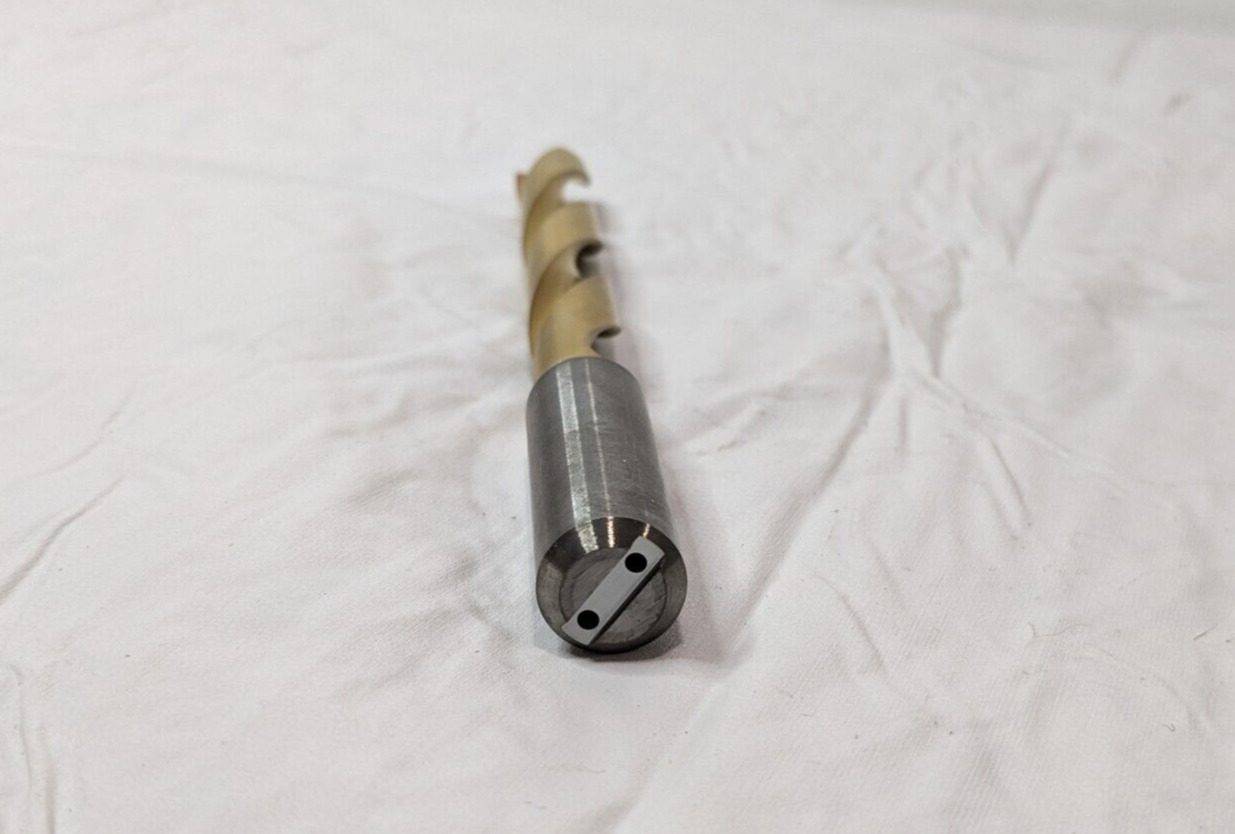

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
August 22 2024
VM13383
Cab Meep Bin 8
BRAND: Kennametal
MSRP: $345
MODEL: B053A12700CPG KC7325
MPN: 4149766
COUNTRY/REGION OF MANUFACTURE: United States
