Kennametal 5Pk Milling Insert: Edpt180516pdergd Kcpm40, Solid Carbide 5545398

KENNAMETAL 5pk Milling Insert: EDPT180516PDERGD KCPM40, Solid Carbide 5545398

MSRP: $110

•

• Insert Style EDPT
• Insert Size 18
• Insert Material Solid Carbide
• Insert Shape Parallelogram
• Manufacturer Grade KCPM40
• Corner Radius (Decimal Inch) 0.0620
• Corner Radius (mm) 1.59
• Number Of Cutting Edges 2
• Thickness (Decimal Inch – 4 Decimals) 0.2165
• Coating/Finish AlCrN; TiAlN
• Relief Angle 15.00
• Insert Size Code 1816
• Inscribed Circle (Decimal Inch) 0.4310
• Thickness Range (Decimal Inch) 0.2000 to 0.2200
• Corner Radius (Inch) 1/16
• Inscribed Circle Range (Decimal Inch) 0.4000 to 0.5000
• Length Range (Decimal Inch) 0.7000 to 0.9000
• Insert Hand Right Hand
• Series EDPT
• Coating Process PVD
• Rake Positive
• Primary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; M
• Ansi Code EP1816E
• Iso Code EDPT180516PDERGD
• Standards ISO; ANSI
• Rake Angle 15
• Cutting Edge Style Honed
• Manufacturers Catalog Number EDPT180516PDERGD
• Cutter Series Compatibility Mill 1-18
• Chip Breaker GD
• UNSPSC Code 23291601
• Material Application Stainless Steel; Superalloys & Titanium; Steel
• Insert Holding Method Screw
• Coating Classification PVD
• Single or Double Sided Insert Single
• Included Angle Degree 70
• Width (Decimal Inch – 4 Decimals) 0.4310
• Multi-Use Tool Yes
• Length (Decimal Inch – 4 Decimals) 0.8580
• Country of Origin UNITED STATES

Kennametal’s expertise in cutting tools is evident in this 5-pack of EDPT180516PDERGD KCPM40 milling inserts. Crafted from high-grade solid carbide, these inserts are designed to deliver precision and durability in your machining applications. The intricate design of the inserts ensures a secure fit and optimal performance with your existing equipment. Each pack contains a specific quantity of inserts, and the product information provides details on the unit quantity. With Kennametal’s reputation for quality, these milling inserts are a reliable choice for professionals seeking to enhance their tooling arsenal. Please refer to the California Prop 65 warning and product description for additional information.

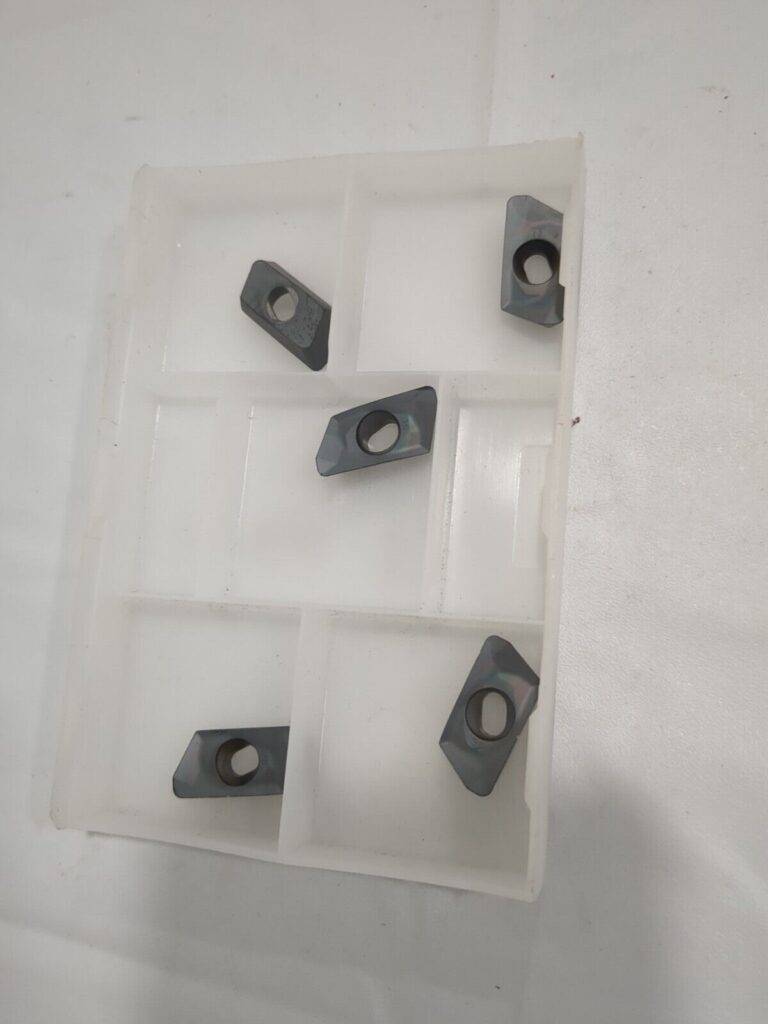

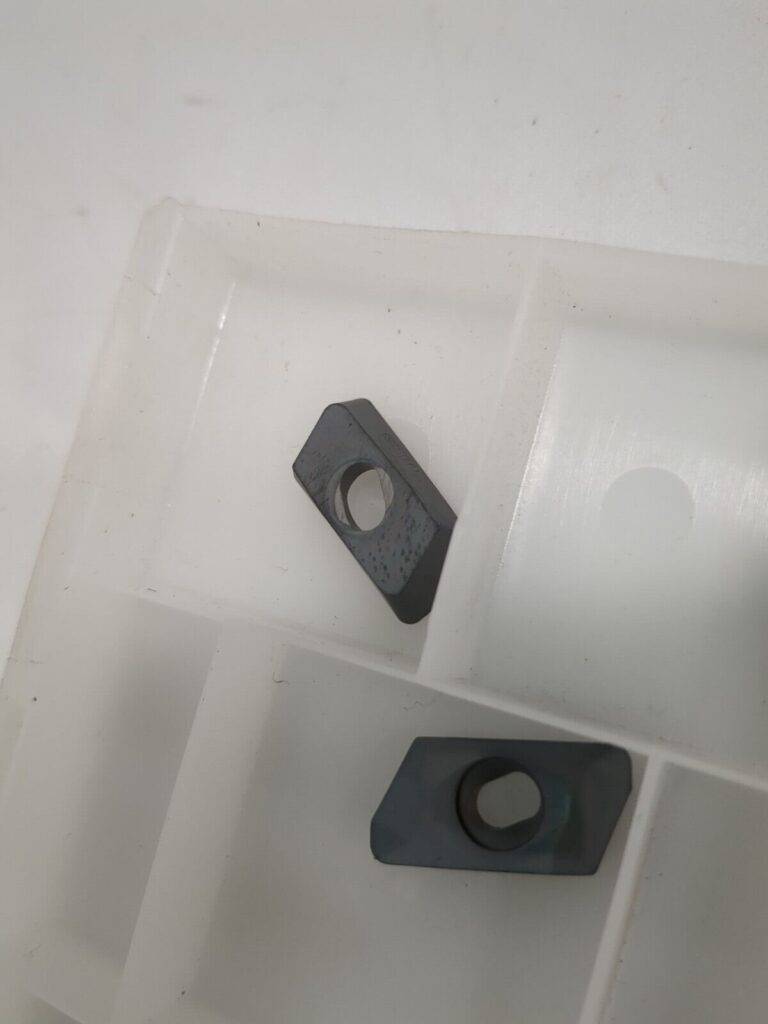

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
