Kennametal
5pc Turning Inserts DNGP432 KC730 Carbide 1160914
MSRP: $190
- ANSI Insert Code DNGP432
- ISO Insert Code DNGP150408
- Relief Angle 0
- Insert Style DNGP
- Corner Radius (Inch) 1/32
- Corner Radius (Decimal Inch) 0.0313
- Included Angle 55
- Manufacturer Grade KC730
- Coating/Finish TiN
- Wiper Edge No
- Insert Hand Neutral
- Insert Thickness (Inch) 3/16
- Insert Thickness (Decimal Inch) 0.1875
- Series KENLOC
- Inscribed Circle (Decimal Inch) 0.5000
- Inscribed Circle (Inch) 1/2
- Insert Material Carbide
- Insert Shape D – Diamond (Rhombic) 55-Deg
- Chip Breaker Operation Medium Machining
- Grade Characteristics Cast Iron (K) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness
- Side Clearance Negative
- Number Of Cutting Edges 4
- Insert Shape Code D
- Hole Diameter (Decimal Inch) 0.2031
- Hole Diameter (Mm) ( – 0 Decimals) 5.16
- Maximum Depth of Cut (mm) 1.25
- Maximum Depth of Cut (Decimal Inch) 0.0492
- Insert Holding Method Pin; Clamp
- Width (Inch) 1/2
- Clearance Code N
- Tolerance Code G
- Coating Process PVD
- Length Range (Decimal Inch) 0.7000 – 10.0000
- Rake Negative
- Insert Length (Decimal Inch) 1.2208
- Insert Length (mm) 15.50
- Primary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
- Primary Workpiece Material Code P; K; M
- Secondary Workpiece Material Code S; M
- Standards ISO; ANSI
- Manufacturers Catalog Number 1160914
- Material Grade C3; C4; C2
- Proprietary Coating Designation TiN
- Coating Classification PVD
- Chip Breaker Common
- Rake Angle 10
- Cutting Edge Style Honed
- Industry Standard Number DNGP432
- Width (Decimal Inch – 4 Decimals) 0.5000
- Multi-Use Tool Yes
- Full Radius No
- Multi-Use Application Back Boring; Facing; Turning; Back Turning; Boring
- ANSI Size Code 432
- ISO Size Code 150408
- UNSPSC Code 23242105
- Insert Size Code 432
- Country of Origin UNITED STATES
(Description).

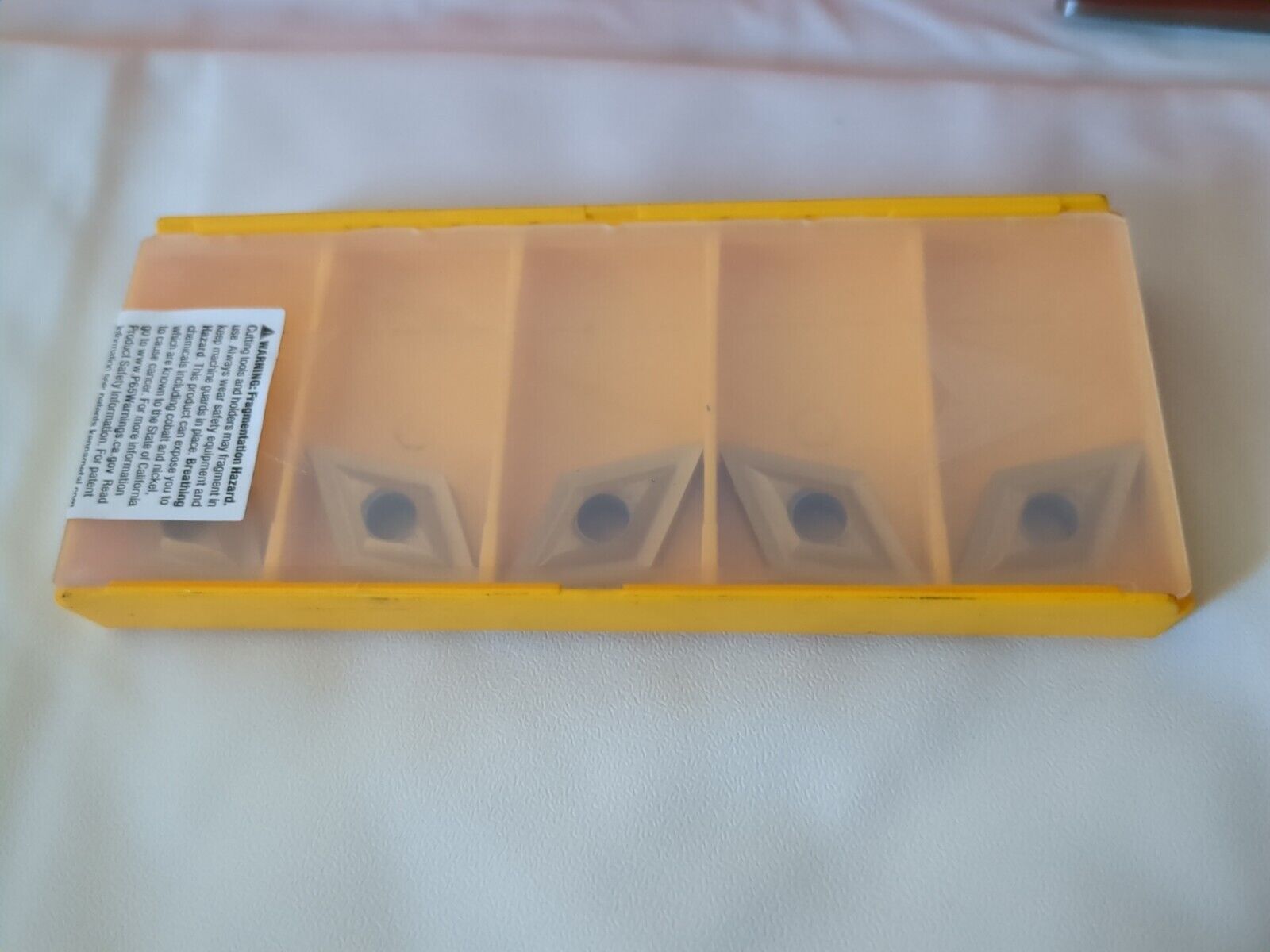

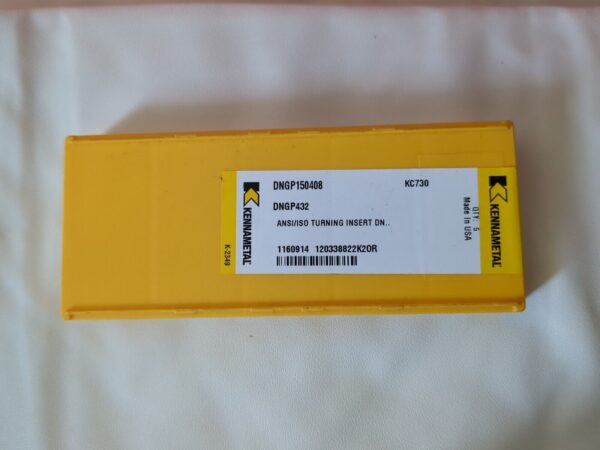

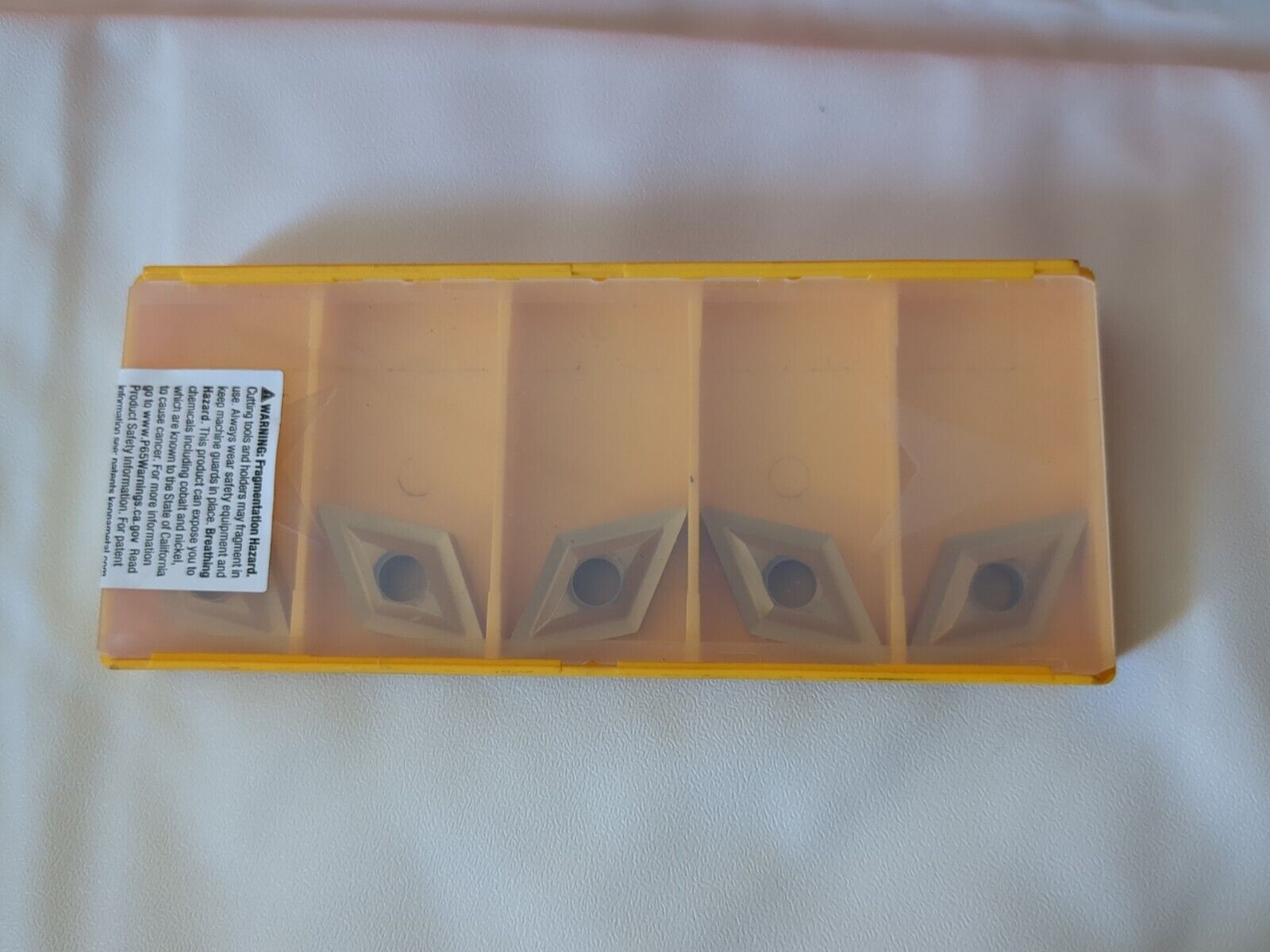

Please review photos, comes as shown.
