KENNAMETAL
16.67 to 17.17 mm Dia Straight-Cylindrical Shank 1519229
MSRP: $400
This high-quality cylindrical shank is designed for precision drilling in metalworking. It fits a range of drill sizes between 16.67 to 17.17 mm and is manufactured by the reputable brand Kennametal. With its durable construction and precise design, this shank is a reliable tool for any metalworking project.
- Minimum Drill Diameter (Decimal Inch) 0.6563
- Minimum Drill Diameter (mm) 16.67
- Maximum Drill Diameter (mm) 17.17
- Maximum Drill Diameter (Decimal Inch) 0.6760
- Drill Depth by Diameter Ratio 7xD
- Maximum Drill Depth (mm) 126.00
- Maximum Drill Depth (Decimal Inch) 4.9600
- Shank Type Straight-Cylindrical
- Insert Style KSEM0656
- Insert Seat Size 1
- Shank Diameter (mm) 19.05
- Maximum Drill Depth Range (Decimal Inch) 4.5000 to 6.0000
- Maximum Drill Depth Range (mm) 125.00 to 160.00
- Compatible Insert Style KSEM0656
- Overall Length (mm) 203.20
- Overall Length (Decimal Inch) 8.0000
- Series KSEM
- Flute Length (mm) 148.38
- Flute Length (Decimal Inch) 5.8417
- Shank Length (Decimal Inch) 2.0000
- Shank Length (mm) 50.80
- Coolant Hole Diameter (Decimal Inch) 0.1378
- Coolant Hole Diameter (mm) 3.50
- Tip Length (Decimal Inch) 0.1000
- Coolant Through Yes

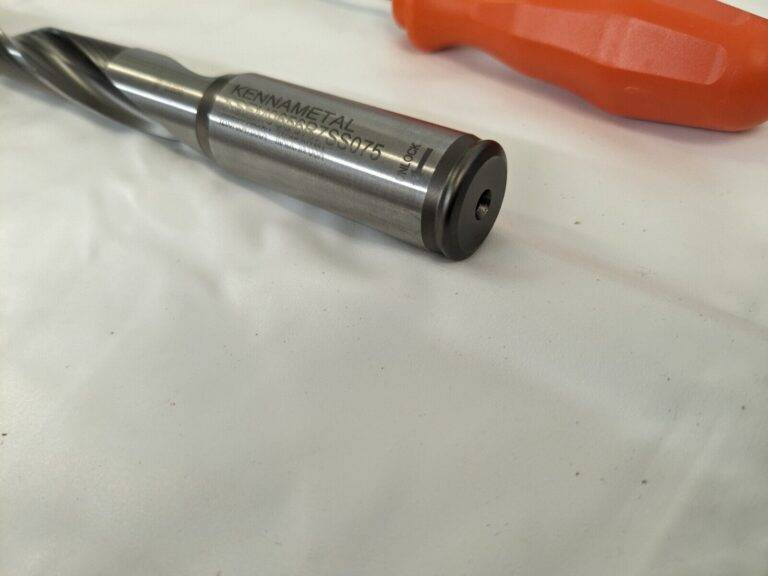

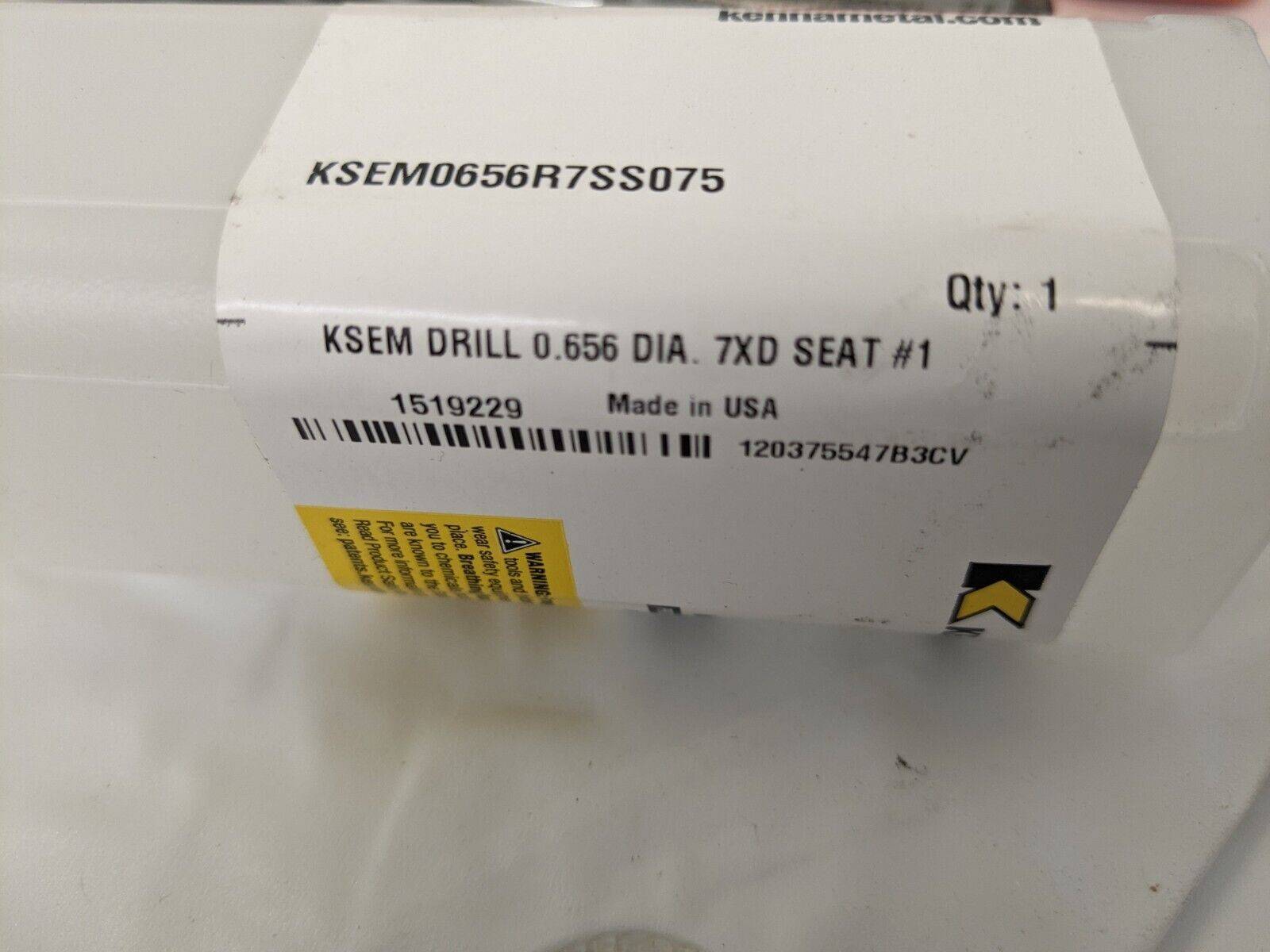

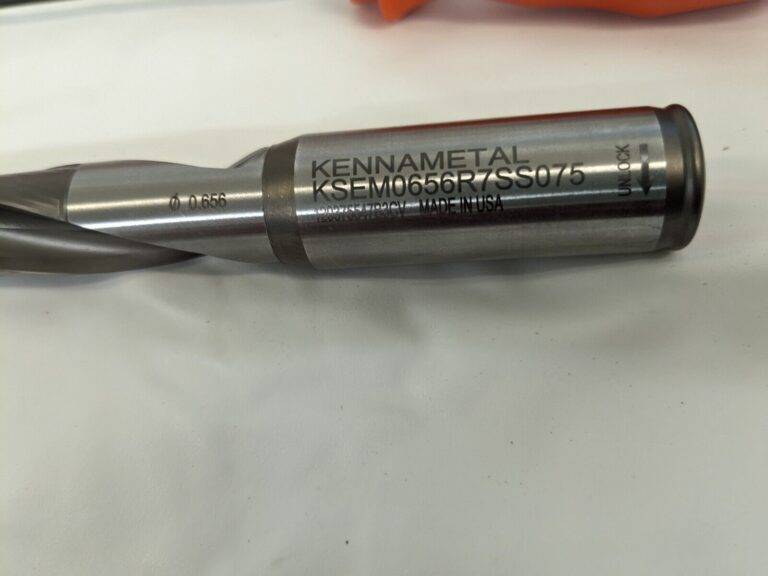

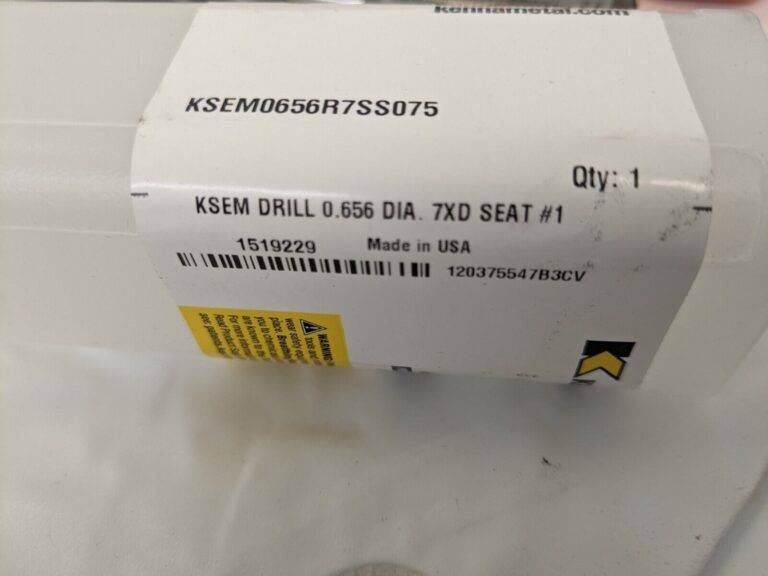

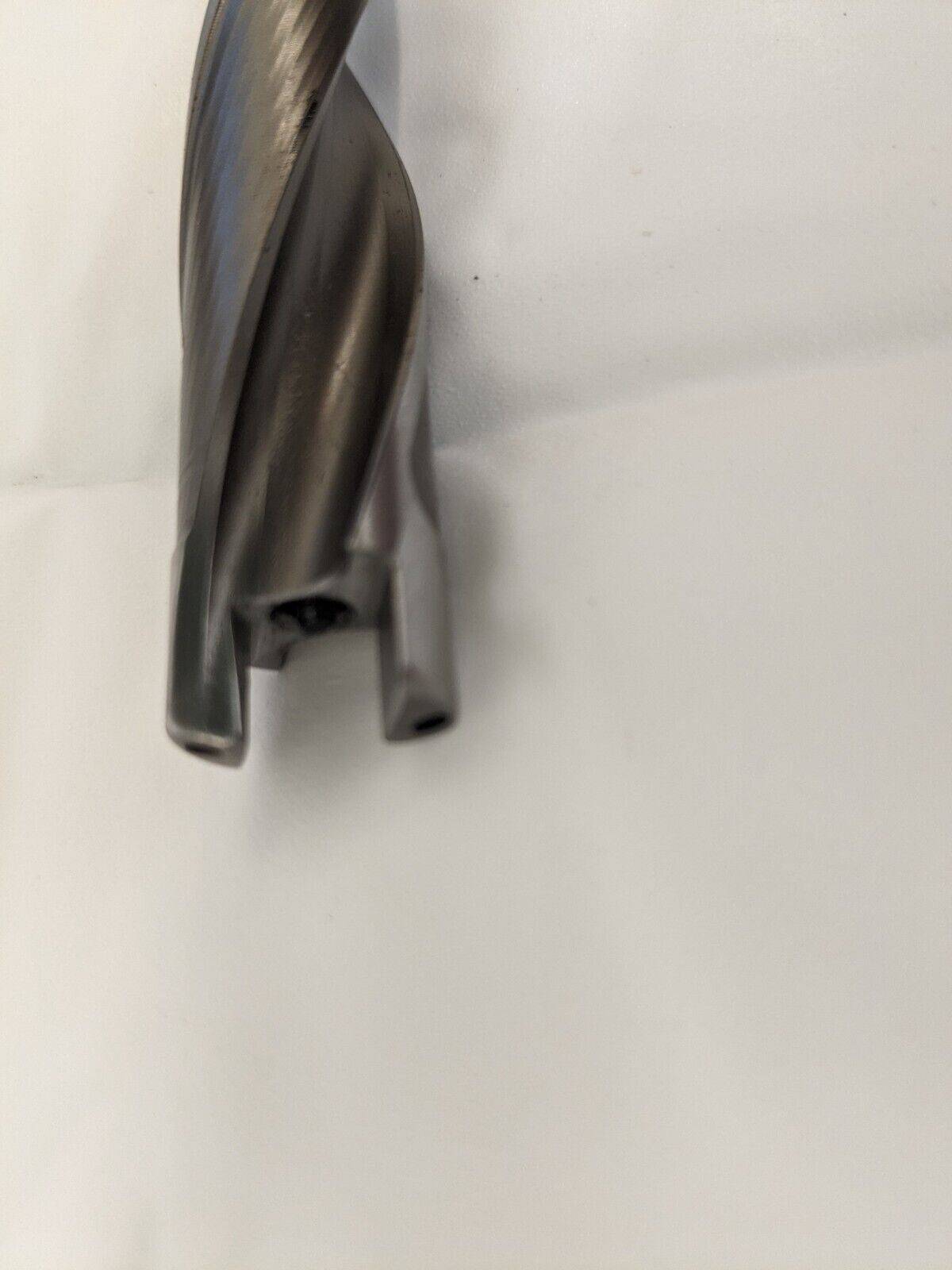

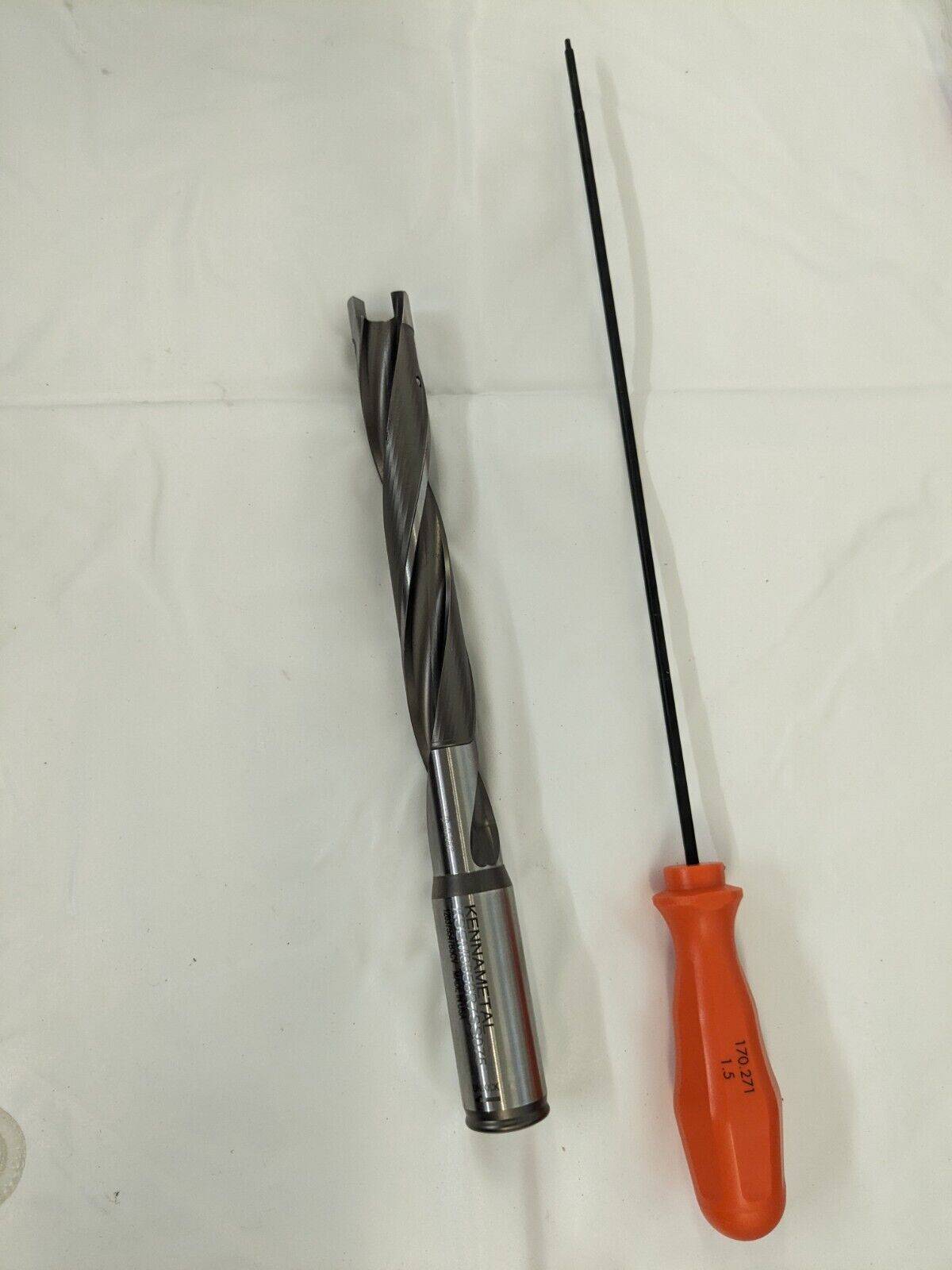

Please review photos, comes as shown.
