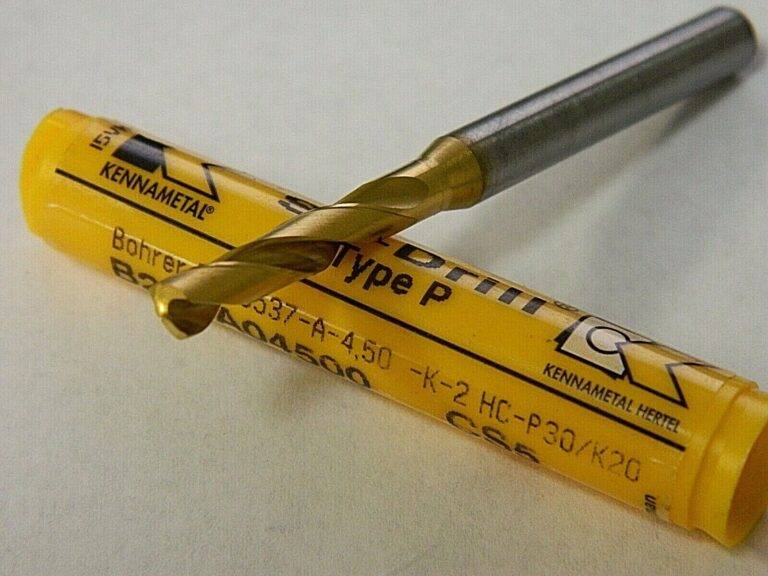

Kennametal 0.1772″ 135° Spiral Flute Solid Carbide Screw Drill Bit Qty 2 1198916

MSRP: $60.00

Description:

Drill Point Length (mm): 0.80

Drill Point Angle: 135

Flute Length (Decimal Inch) : 0.9450

Flute Type: Spiral

Maximum Drilling Depth (Decimal Inch): 0.6693

Number of Flutes: 2

Overall Length (Decimal Inch) : 2.5980

Point Type: Standard

Shank Diameter (Decimal Inch): 0.2362

Shank Length (Decimal Inch): 1.4173

Shank Type: Straight

Specification Designation: DIN

Specification Number: DIN 6537K

Spiral Type: Regular Spiral

Threaded Shank (Yes/No): No

Through Coolant (Yes/No): No

Web Configuration: Parallel

Web Thinning: Web-Thinned

Cutting Direction: Right Hand

Drill Bit Diameter Tolerance (mm): +0.004 to +0.016

Drill Bit Material: Solid Carbide

Drill Bit Grade: High Performance

Series/List: B221A

Drill Bit Size (Decimal Inch) : 0.1772

This listing is for One Lot of 2  that is in the picture as well as described. Please ask any questions prior to buying!
