Description
Iscar
MSRP: $120.00
Model: 5510362
Description:
Insert Style WNMX
Insert Size 341
Material Carbide
Length (mm) 9.52
Length (Decimal Inch) 0.3750
Inscribed Circle (mm) 9.52
Inscribed Circle (Decimal Inch) 0.3750
Thickness (Decimal Inch) 0.1730
Thickness (mm) 4.41
Corner Radius (mm) 0.40
Corner Radius (Decimal Inch) 0.0160
Manufacturer’s Grade IC6015
Coating TiCN/Al2O3/TiN
Chip Breaker M3MW
ISO Number WNMX 341-M3MW
Rake Positive
Coating Process CVD
Manufacturers Catalog Number 5510362
Primary Workpiece Material M
Secondary Workpiece Material None
Included Angle 80
Insert Hand Right Hand
Maximum Depth of Cut (mm) 4.00
Maximum Depth of Cut (Decimal Inch) 0.1570
Multi Use Application Turning
Shape Trigon

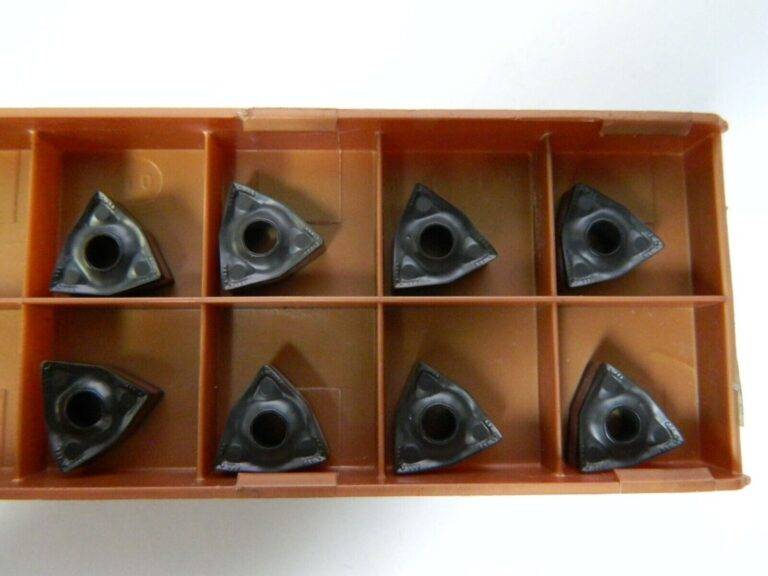

This listing is for One Pack of 8 inserts that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer’s are required to pay a 7% sales tax.
Cristy Feb 12 2020
CM 6463
Priscilla 2
COUNTRY/REGION OF MANUFACTURE: Israel
MPN: Does Not Apply
BRAND: ISCAR
LOCATION: CM6463Priscilla2
MSRP: 120.00
