ISCAR Turning Inserts: WNMG 432-GN IC-2, Carbide5503262
MSRP: $120
- Insert Style WNMG
- Insert Size Code 432
- Insert Shape Trigon
- Included Angle 80
- Inscribed Circle (Decimal Inch) 0.5000
- Corner Radius (Decimal Inch) 0.0315
- Insert Material Carbide
- Manufacturer Grade IC20
- Coating/Finish Bright/Uncoated
- Relief Angle 0
- Insert Thickness (Decimal Inch) 0.1874
- Insert Shape Code W
- Corner Radius (Inch) 1/32
- Maximum Depth of Cut (mm) 4.50
- Maximum Depth of Cut (Decimal Inch) 0.1772
- Inscribed Circle (Inch) 1/2
- Insert Holding Method Pin; Clamp
- Insert Thickness (Inch) 3/16
- Clearance Code N
- Tolerance Code M
- Series Isoturn
- Coating Process Uncoated
- Length Range (Decimal Inch) 0.3000 – 0.4000
- Insert Length (Decimal Inch) 0.3425
- Insert Length (mm) 8.70
- Primary Workpiece Material Universal
- Primary Workpiece Material Code S; H; K; M; N
- Iso Code ISO 13399
- Standards ISO 13399
- UNSPSC Code 23242105
- Chip Breaker GN
(Description).

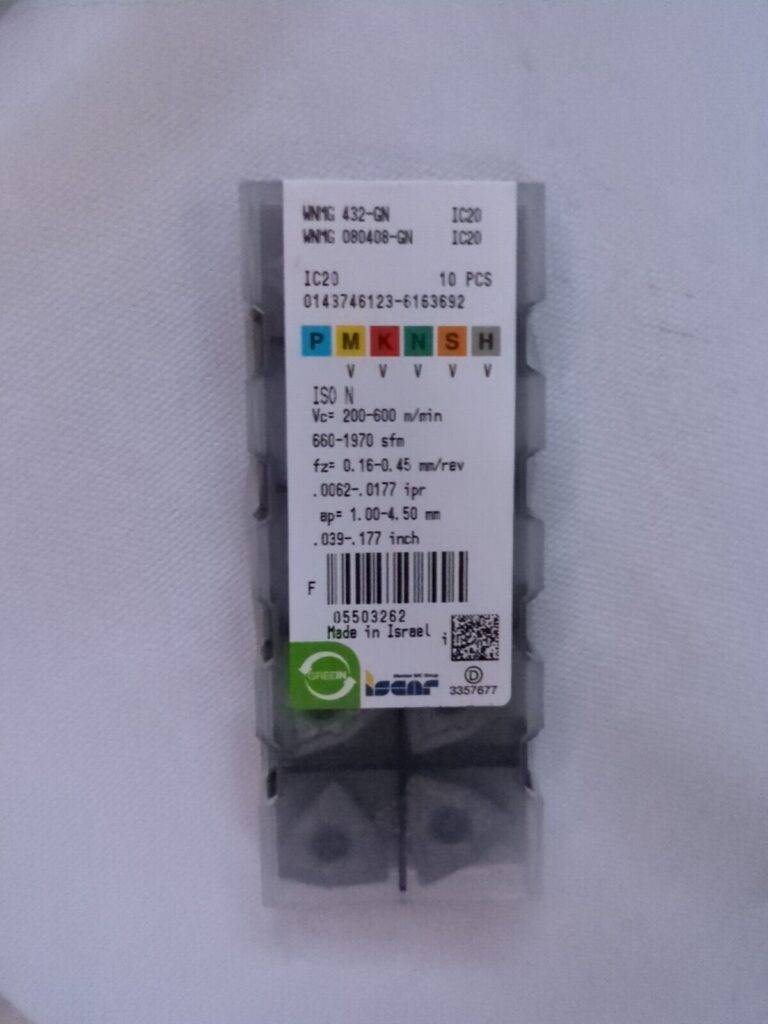

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
june 21 24
hs5761
mittens 88
BRAND: ISCAR
INSERT MATERIAL: Carbide
MPN: 5503262
INSERT TYPE: Turning Insert
