Description
BRAND
Item
MSRP: $165.00
| Insert Style |
CNMG |
| ISO Size Code |
120408 |
| ANSI Size Code |
432 |
| Insert Shape |
C – Diamond (Rhombic) 80-Deg |
| Included Angle |
80 |
| Inscribed Circle (Decimal Inch) |
0.5000 |
| Inscribed Circle (Inch) |
1/2 |
| Corner Radius (Inch) |
1/32 |
| Corner Radius (Decimal Inch) |
0.0315 |
| Insert Material |
Carbide |
| Manufacturer Grade |
IC907 |
| Coating/Finish |
TiN; TiAlN |
| Relief Angle |
0 |
| Insert Thickness (Decimal Inch) |
0.1874 |
| Insert Thickness (Inch) |
3/16 |
| Series |
Isoturn |
| Grade Characteristics |
Cast Iron (K) – High Wear-Resistance; Aluminum & Non-Ferrous (N) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) – High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) – High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation |
Medium Machining; Roughing |
| Side Clearance |
Negative |
| Insert Shape Code |
C |
| Hole Diameter (Decimal Inch) |
0.2030 |
| Maximum Depth of Cut (mm) |
4.50 |
| Maximum Depth of Cut (Decimal Inch) |
0.1772 |
| ISO Insert Code |
CNMG120408 |
| ANSI Insert Code |
CNMG432 |
| Insert Holding Method |
Pin; Clamp |
| Clearance Code |
N |
| Tolerance Code |
M |
| Coating Process |
PVD |
| Length Range (Decimal Inch) |
0.5000 – 0.6000 |
| Insert Length (Decimal Inch) |
0.5079 |
| Insert Length (mm) |
12.90 |
| Primary Workpiece Material Code |
P; S; K; M; N |
| Iso Code |
ISO 13399 |
| Standards |
ISO 13399 |
| Material Grade |
C4 |
| Chip Breaker |
GN |
| UNSPSC Code |
23242105 |
| Insert Size Code |
432 |
| Country of Origin |
Israel |
| Ordered as Part # |
5593939 |
(Description).

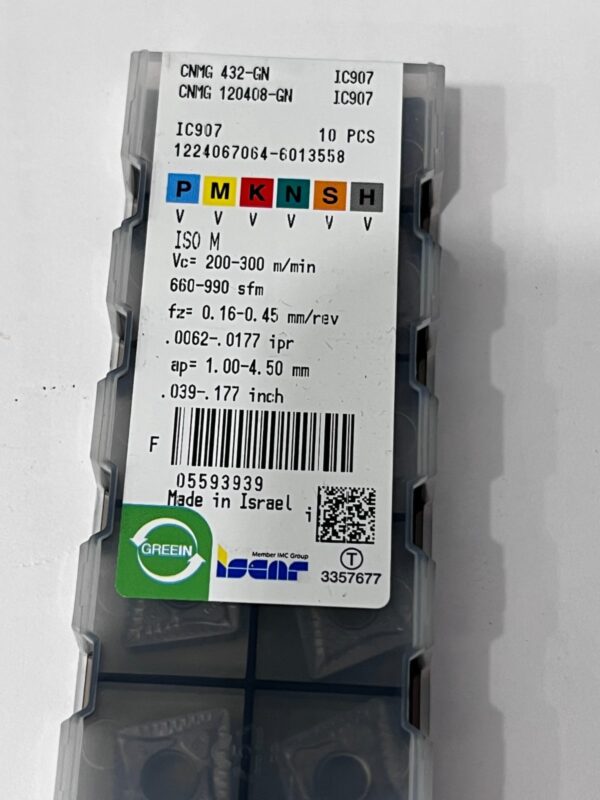

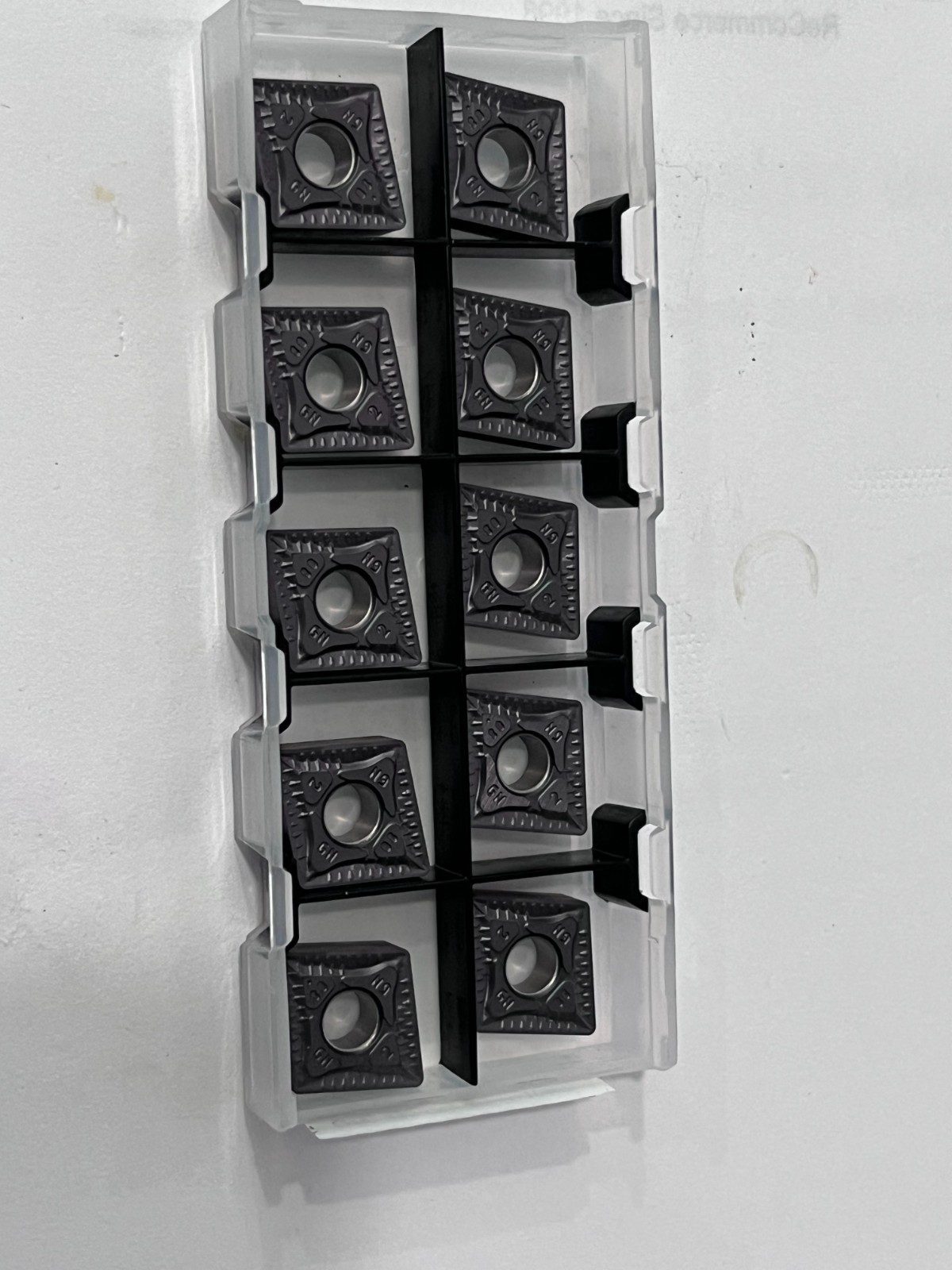

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
BRAND: ISCAR
INSERT MATERIAL: Carbide
MPN: 5593939
INSERT TYPE: Turning Insert
