Description
ISCAR
Turning Insert: CCMT3-1SM IC8250, Solid Carbide 6ct 5508089
MSRP: $100
- Insert Style CCMT
- Insert Size Code 3-1
- Insert Shape Diamond
- Included Angle 80
- Inscribed Circle (Decimal Inch) 0.3750
- Corner Radius (Decimal Inch) 0.0160
- Insert Material Carbide
- Manufacturer Grade IC8250
- Coating/Finish TiCN; TiN; Al2O3
- Relief Angle 7
- Insert Thickness (Decimal Inch) 0.1560
- Insert Shape Code C
- Corner Radius (Inch) 1/64
- Hole Diameter (Mm) ( – 0 Decimals) 4.39
- Hole Diameter (Decimal Inch) 0.1730
- Maximum Depth of Cut (mm) 2.49
- Maximum Depth of Cut (Decimal Inch) 0.0980
- Inscribed Circle (Inch) 3/8
- Insert Holding Method Screw
- Insert Thickness (Inch) 5/32
- Clearance Code C
- Tolerance Code M
- Series Isoturn
- Coating Process CVD
- Length Range (Decimal Inch) 0.3000 – 0.4000
- Rake Positive
- Insert Length (Decimal Inch) 0.3820
- Insert Length (mm) 9.70
- Primary Workpiece Material Stainless Steel; Steel
- Primary Workpiece Material Code P; M
- Iso Code CCMT 3-1-SM
- Standards ISO 13399
- Manufacturers Catalog Number CCMT 3-1-SM
- UNSPSC Code 23242105
- Chip Breaker SM
- Multi-Use Tool Yes

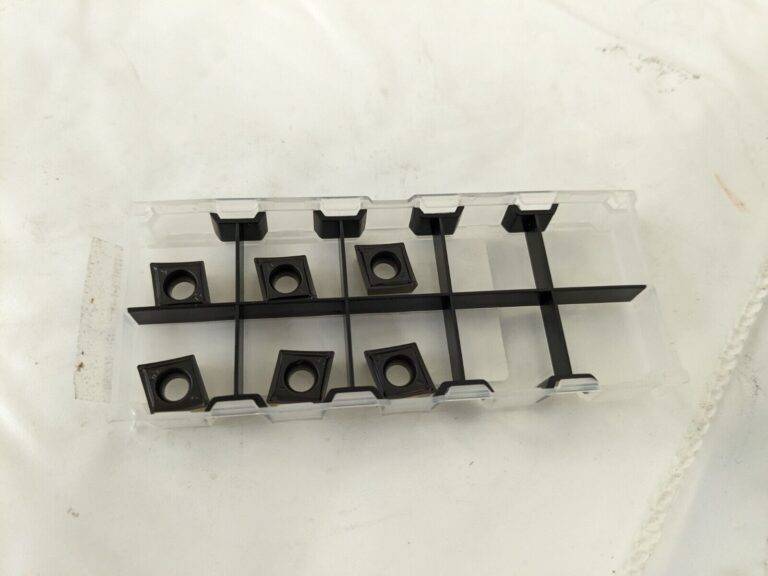

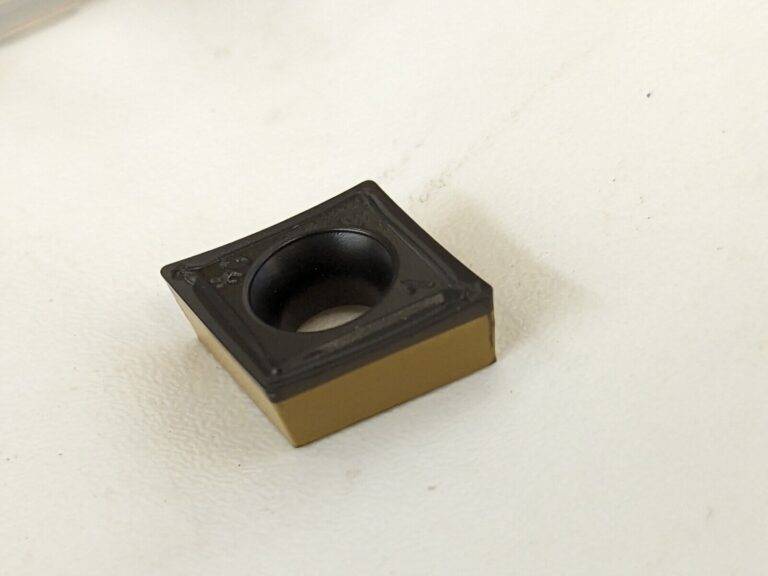

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
dec 08 23
HS3788
bullet 4
BRAND: ISCAR
INSERT MATERIAL: Carbide
MSRP: $100
MPN: 5508089
INSERT TYPE: Turning Insert
