Description
Iscar
1 Lot of 10 Inserts
MSRP: $200.00
- Insert Style ADKT
- Insert Size 15
- Insert Material Solid Carbide
- Insert Shape Parallelogram
- Manufacturer Grade IC328
- Corner Radius (Decimal Inch) 0.0315
- Corner Radius (mm) 0.80
- Number Of Cutting Edges 2
- Thickness (Decimal Inch – 4 Decimals) 0.2220
- Coating/Finish TiCN
- Relief Angle 15.00
- Insert Size Code 1505
- Inscribed Circle (Decimal Inch) 0.3770
- Thickness Range (Decimal Inch) 0.2200 to 0.2350
- Corner Radius (Inch) 1/32
- Inscribed Circle Range (Decimal Inch) 0.3500 to 0.4000
- Length Range (Decimal Inch) 0.6000 to 0.6500
- Insert Hand Left Hand
- Maximum Depth of Cut (Decimal Inch) 0.4720
- Maximum Depth of Cut (mm) 13.80
- Series HELIMILL
- Coating Process PVD
- Cutting Edge Effective Length (Decimal Inch) 0.5430
- Rake Positive
- Primary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
- Primary Workpiece Material Code P; S; M

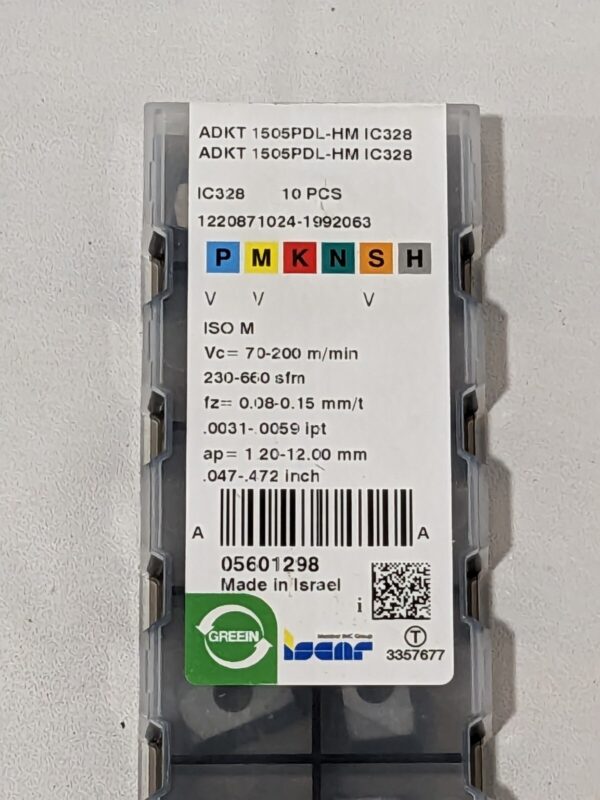

- Ansi Code ADKT 1505PDL-HM IC328
- Iso Code ADKT 1505PDL-HM
- Standards ISO 13399; ANSI
- Rake Angle 22
- Cutting Edge Style Honed
- Manufacturers Catalog Number ADKT 1505PDL-HM IC328
- Cutter Series Compatibility FTS; ETS; ADK; E90
- Chip Breaker HM
- UNSPSC Code 23291601
- Material Application Stainless Steel; Superalloys & Titanium; Steel
- Insert Holding Method Screw
- Coating Classification PVD
- Single or Double Sided Insert Single
- Included Angle Degree 85
- Width (Decimal Inch – 4 Decimals) 0.3770
- Multi-Use Tool Yes
- Length (Decimal Inch – 4 Decimals) 0.6180
These items appear to be new and in good condition. SOLD AS IS.

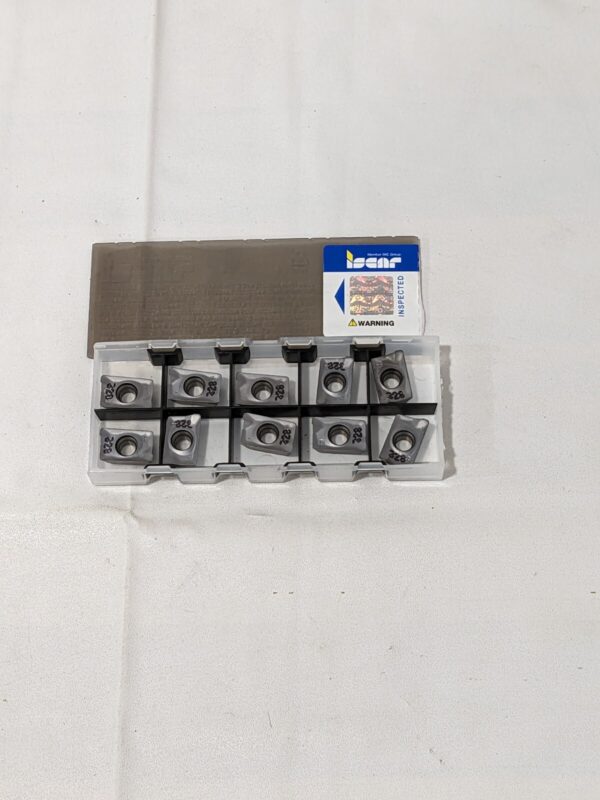

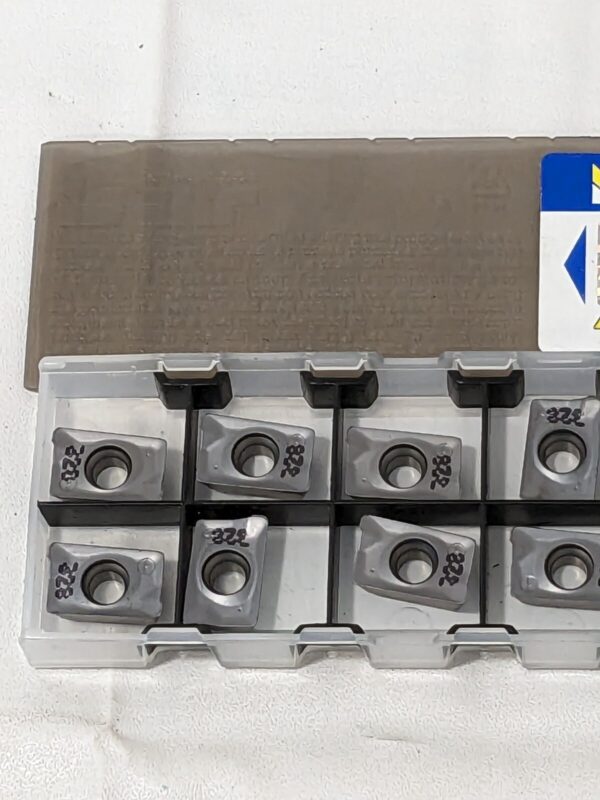

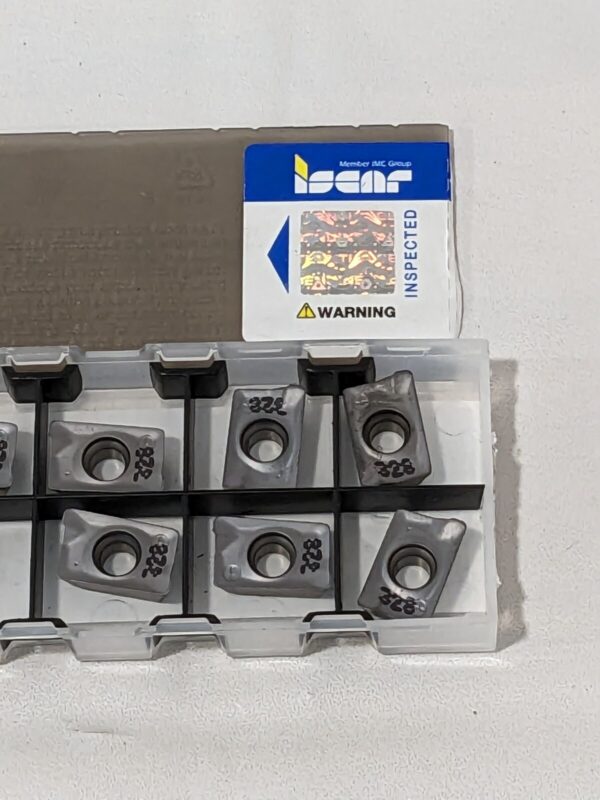

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
May 20 2025
TB 19629
BW 3 Bin 35
BRAND: ISCAR
MSRP: $200.00
UNIT TYPE: Unit
INSERT MATERIAL: Carbide
MODEL: 5601298
MPN: Does Not Apply
INSERT TYPE: Milling Insert
COUNTRY/REGION OF MANUFACTURE: Unknown
UNIT QUANTITY: N/A
CALIFORNIA PROP 65 WARNING: N/A
LOCATION: TB19629BW3Bin35
