Iscar Slotting Drill Milling Tip Insert 2Pc Carbide 5621949

ISCAR Slotting Drill Milling Tip Insert 2pc carbide 5621949

MSRP: $120

•

• Milling Tip Type Slotting Drill
• Milling Tip Style MM EA
• Maximum Depth of Cut (Decimal Inch) 0.2758
• Maximum Depth of Cut (mm) 7
• Cutting Diameter (Decimal Inch) 0.3940
• Cutting Diameter (mm) 10.00
• Tool Material Carbide
• Manufacturer Grade IC08
• Insert Hand Right Hand
• Chipbreaker None
• Series MM EA
• Corner Radius (Decimal Inch) 0.0394
• Cutting Width (Decimal Inch) 0.394
• Functional Length (mm) 13.00
• Functional Length (Decimal Inch) 0.5122
• Primary Workpiece Material Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; H; K; M; N
• Standards ANSI
• Milling Tip Full Description MM EA100B07R1.0-2T06
• Extension From Holder (mm) 13.00
• Lead Angle 90
• Manufacturers Catalog Number 5621949
• Chamfer Angle 0
• Overall Length (Decimal Inch) 0.5122
• Insert Size 100B07R1.0
• Helix Angle 45
• Coolant Through No
• Material Grade Sub Micrograin
• Included Angle Degree 90
• Coating/Finish Bright/Uncoated
• UNSPSC Code 23291601
• Length Of Cut (Decimal Inch – 4 Decimals) 0.2758
• Number Of Flutes 2
• Extension From Holder (Inch) 0.5118

(Description).

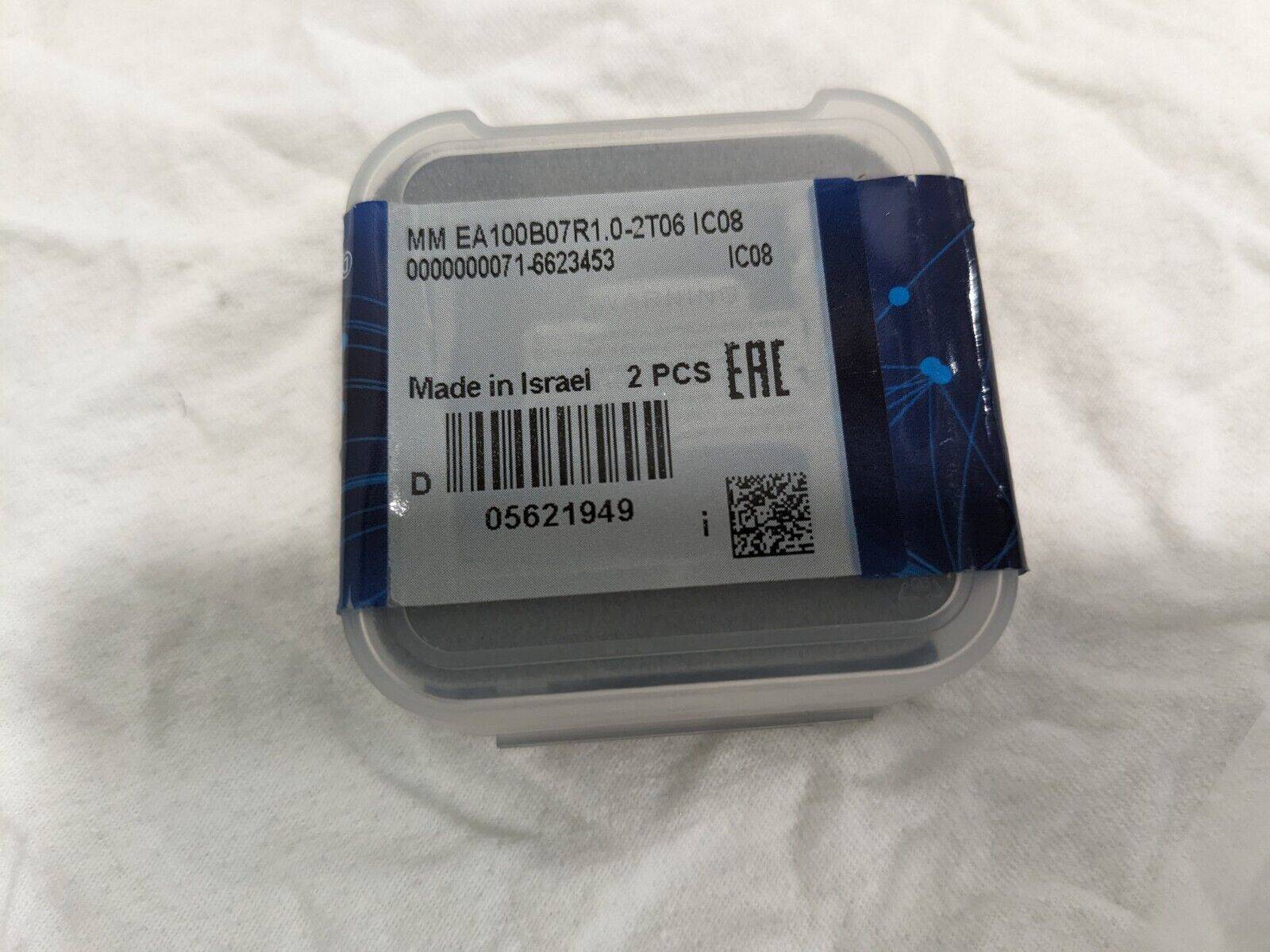

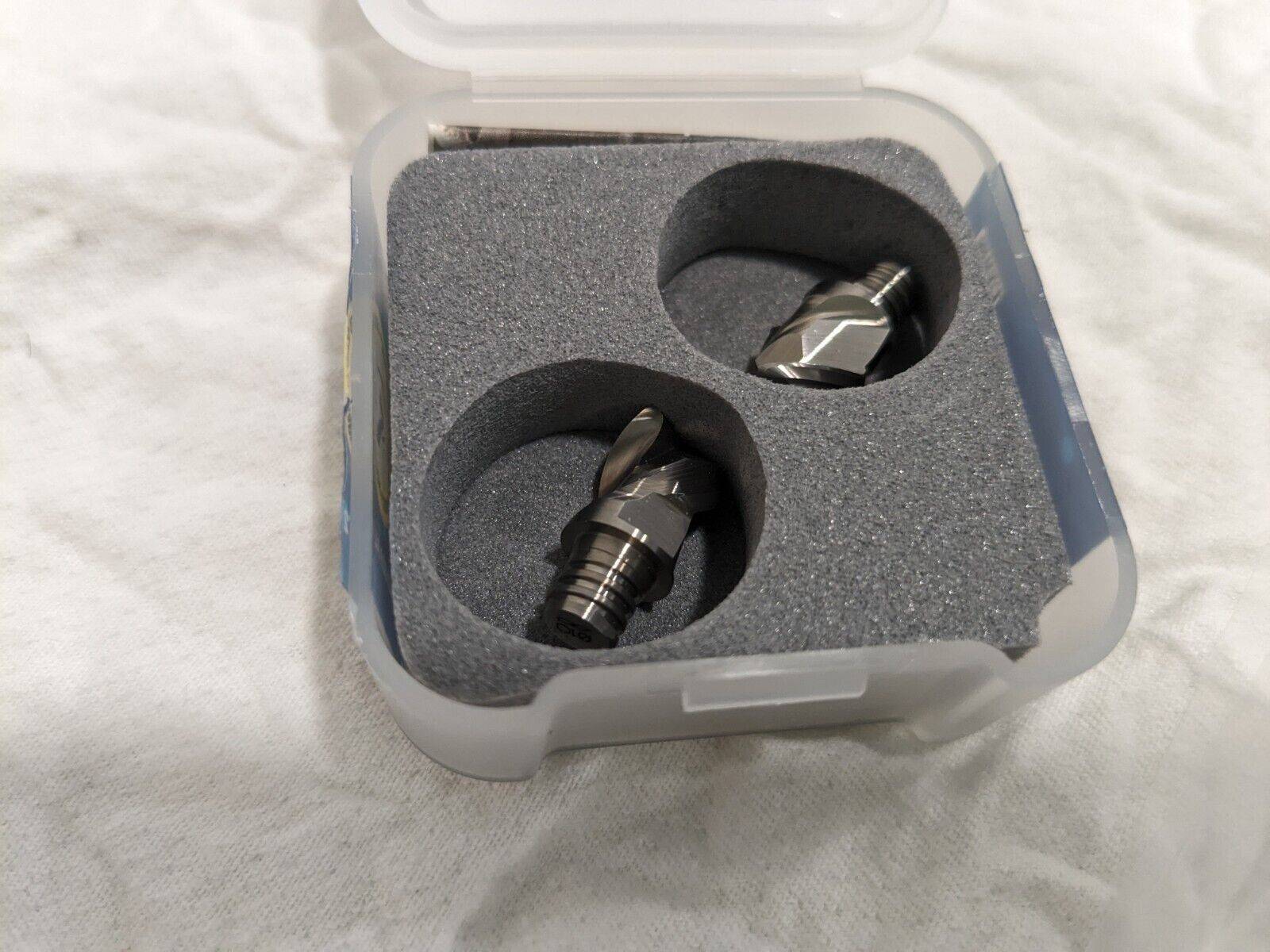

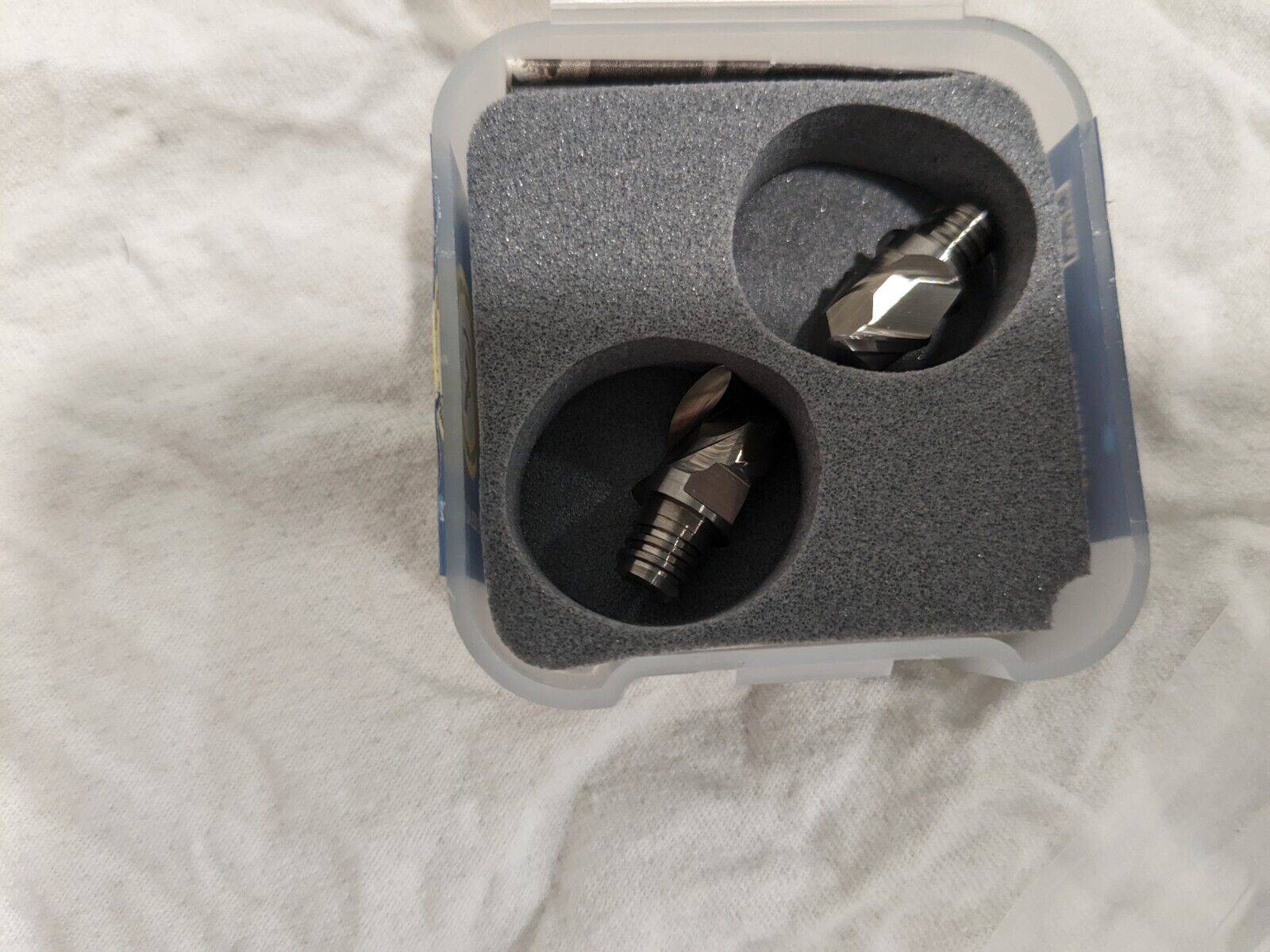

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
