Description
ISCAR Milling Insert10pk H400 RNHU 1004-HP IC830, Solid Carbide 5606805
MSRP: $215
- Insert Style RNHU
- Insert Size 10
- Insert Material Solid Carbide
- Insert Shape Round
- Manufacturer Grade IC830
- Corner Radius (Decimal Inch) 0.1969
- Corner Radius (mm) 5.00
- Number Of Cutting Edges 4
- Thickness (Decimal Inch – 4 Decimals) 0.1590
- Coating/Finish AlTiN; TiN
- Relief Angle 0.00
- Maximum Depth of Cut (Decimal Inch) 0.1969
- Maximum Depth of Cut (mm) 7.50
- Insert Size Code 1004
- Inscribed Circle (Decimal Inch) 0.3620
- Thickness Range (Decimal Inch) 0.1500 to 0.1750
- Inscribed Circle Range (Decimal Inch) 0.3500 to 0.4000
- Length Range (Decimal Inch) 0.6000 to 0.6500
- Insert Hand Neutral
- Series HELIDO
- Coating Process PVD
- Cutting Edge Effective Length (Decimal Inch) 0.6299
- Rake Negative
- Primary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
- Primary Workpiece Material Code P; S; M
- Secondary Workpiece Material Code S
- Ansi Code H400 RNHU 1004-HP IC830
- Iso Code H400 RNHU 1004-HP
- Standards ISO 13399; ANSI
- Rake Angle 14
- Cutting Edge Style Continuous
- Manufacturers Catalog Number H400 RNHU 1004-HP IC830
- Cutter Series Compatibility H400-10
- Chip Breaker HP
- Material Application Stainless Steel; Superalloys & Titanium; Steel
- UNSPSC Code 23291601
- Insert Holding Method Screw
- Coating Classification Sumotec PVD
- Single or Double Sided Insert Double
- Included Angle Degree 360
- Width (Decimal Inch – 4 Decimals) 0.6299
- Multi-Use Tool Yes
- Length (Decimal Inch – 4 Decimals) 0.6299
- System Of Measurement Decimal Inch

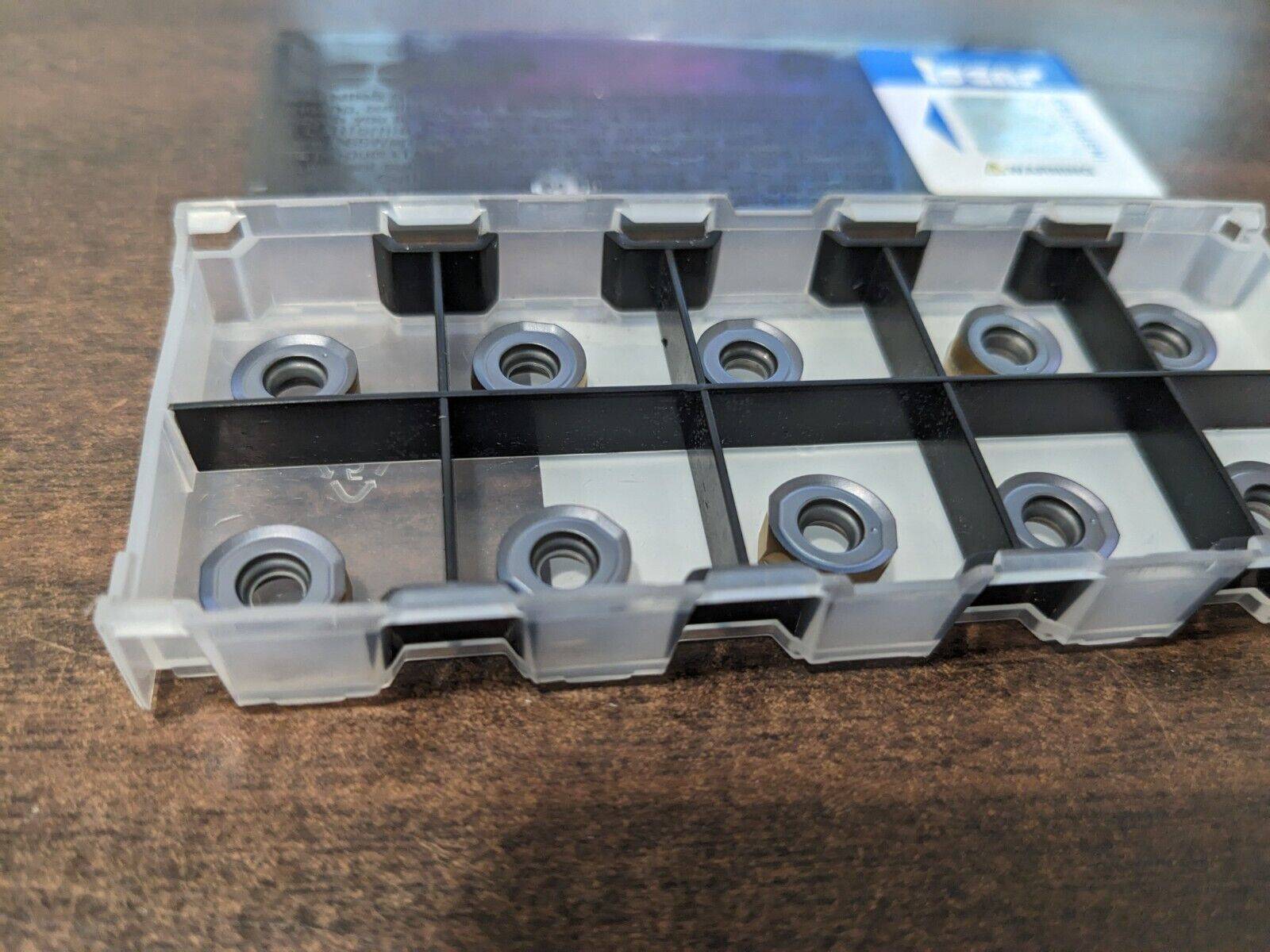

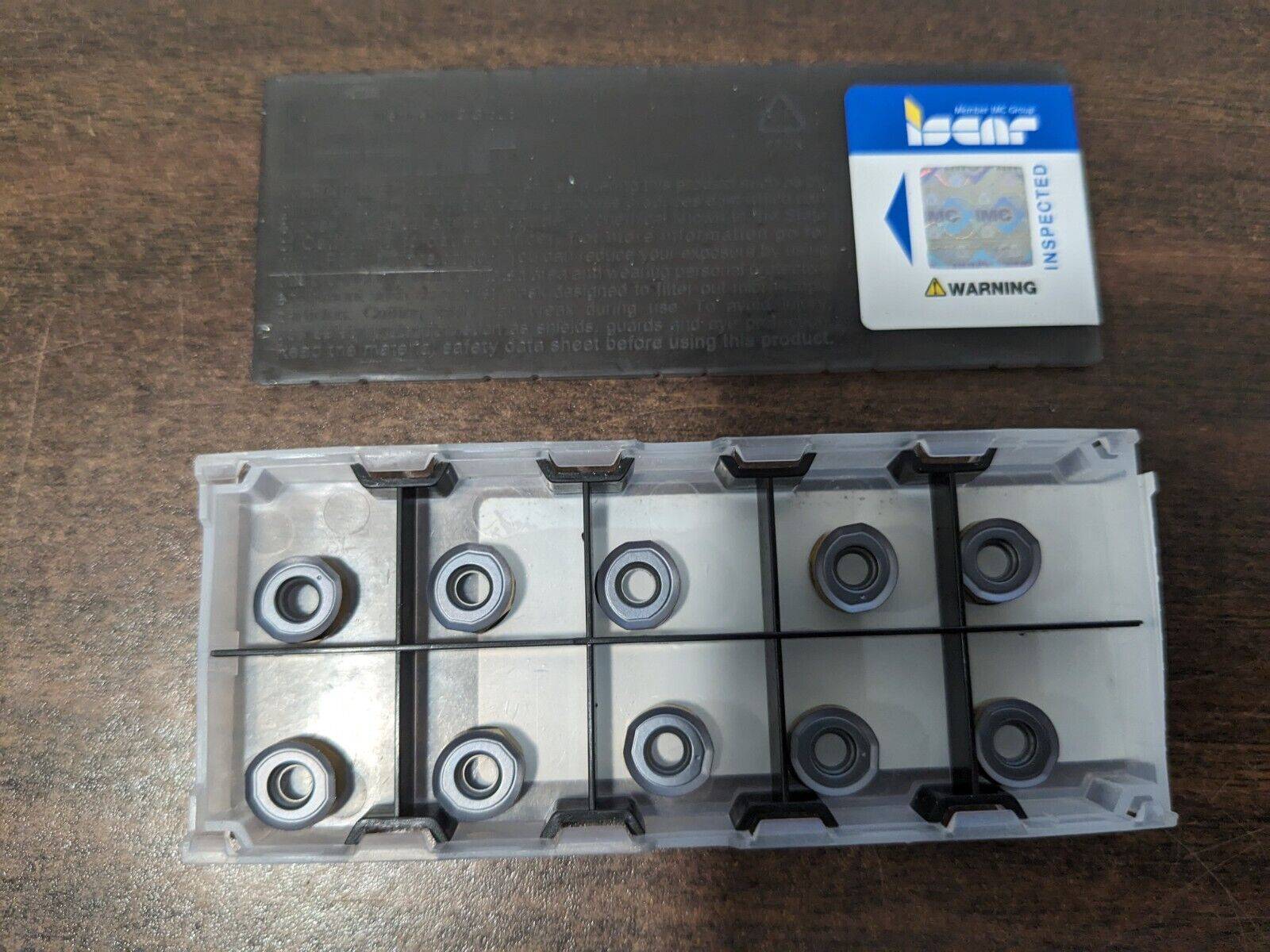

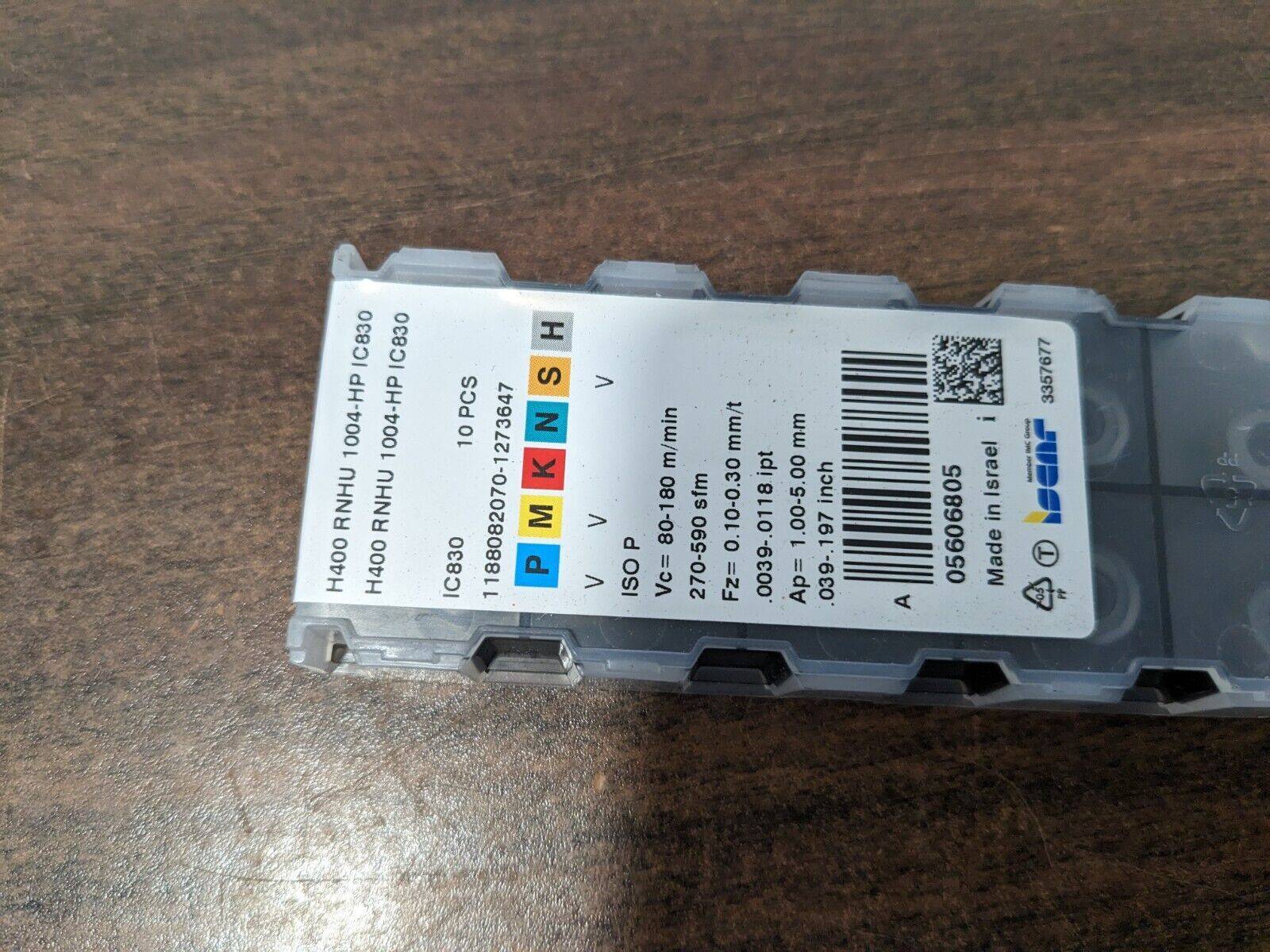

Please review photos, comes as shown.
Fast shipping, straight from our warehouse in sunny Florida!
Industry Recycles
155 Center Ct, Venice, FL 34285
apr 08 24
HS4997
ozzy 57
BRAND: ISCAR
INSERT MATERIAL: Carbide
MPN: 5606805
INSERT TYPE: Milling Insert
