Iscar Indexable Grooving Toolholder: Gehiml 15.9-13 Lh 2801198

ISCAR Indexable Grooving Toolholder: GEHIML 15.9-13 LH 2801198

MSRP: $245

•

• Toolholder Type Internal Grooving
• Hand of Holder Left Hand
• Maximum Depth of Cut (Decimal Inch) 0.0980
• Minimum Groove Width (Decimal Inch) 0.0310
• Toolholder Style GEHIM
• Maximum Groove Width (Decimal Inch) 0.0750
• Insert Holding Method Clamp
• Insert Compatibility GEPI..
• Compatible Insert Size Code GEPI-WT; GEPI-RX/LX; GEPI; GEPI-MT
• Series Cut Grip
• Shank Length (Decimal Inch) 4.1400
• Overall Length (Decimal Inch) 5
• Multi-use Tool No
• Center to Cutting Edge (Decimal Inch) 0.4200
• Minimum Hole Diameter (Decimal Inch) 0.4920
• Head Length (Decimal Inch) 0.86
• Primary Workpiece Material Universal
• Primary Workpiece Material Code P; S; H; K; M; N
• UNSPSC Code 23153308
• Manufacturers Catalog Number GEHIML 15.9-13
• MSC/Manufacturer Number GEHIMR/L 15.9-13
• Coolant Through Yes

(Description).

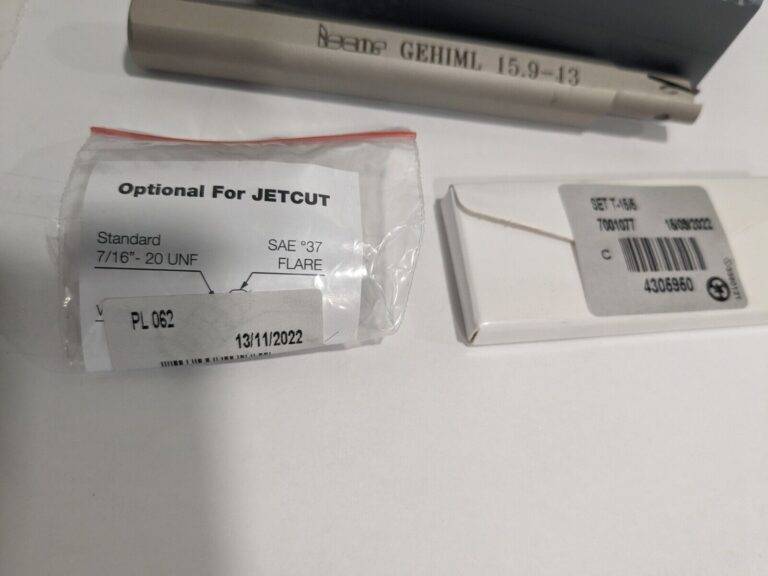

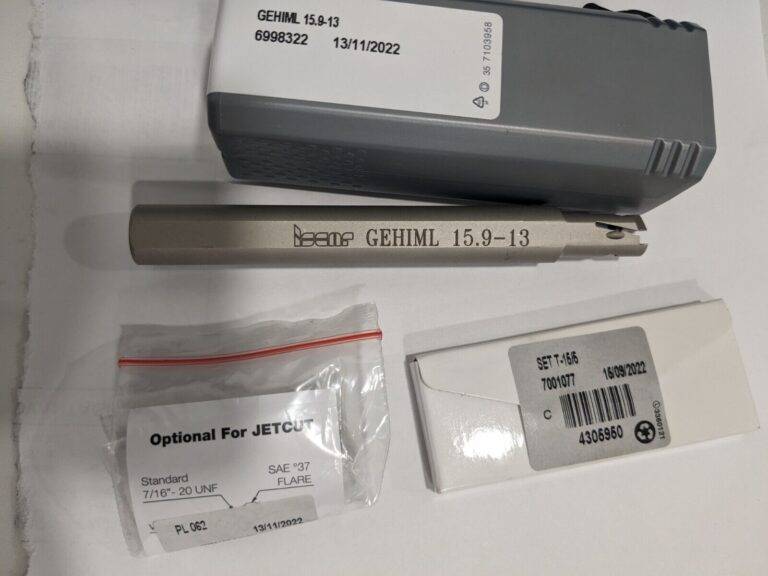

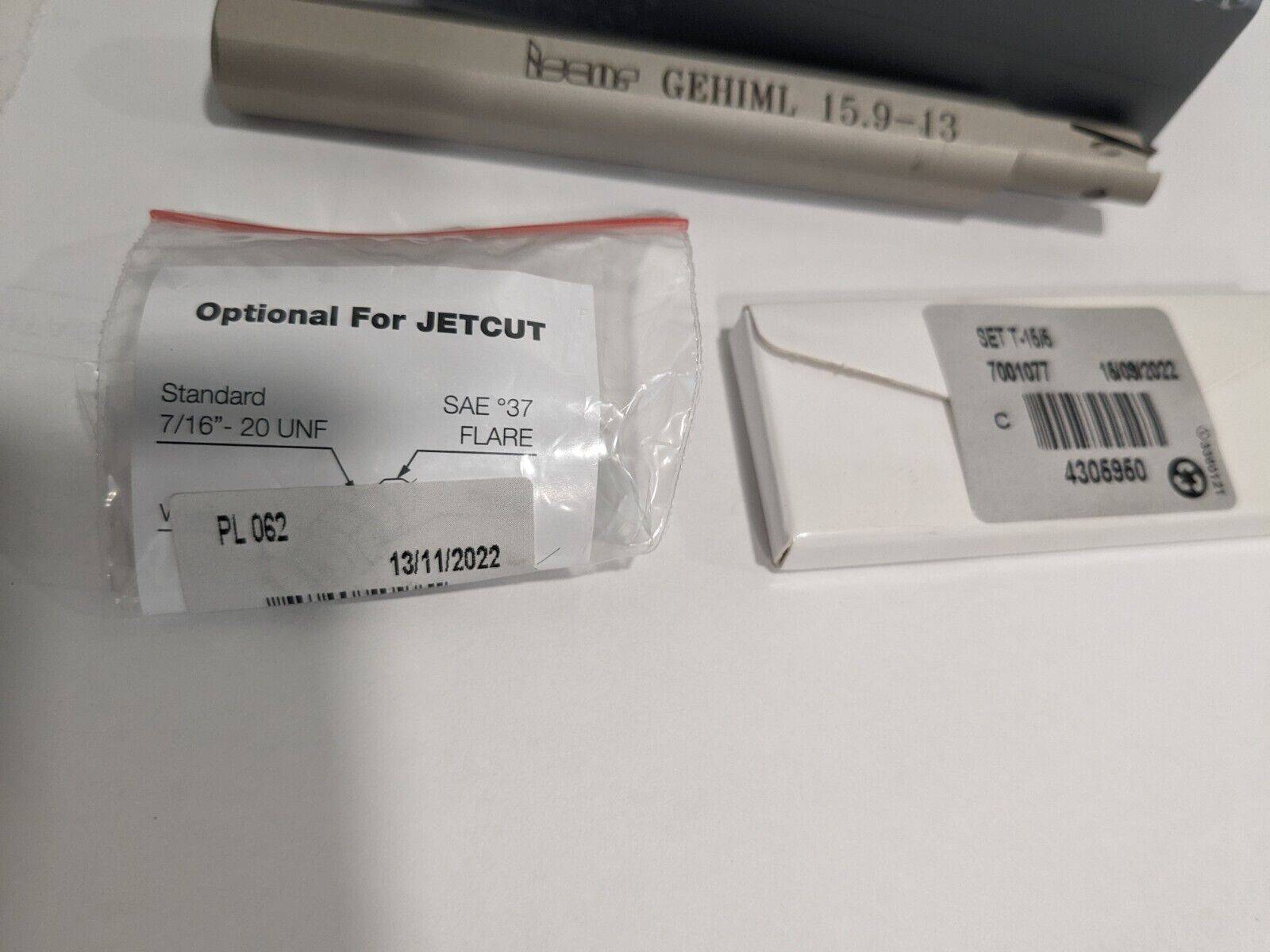

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
